REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 4
Page 12
December 01/2010

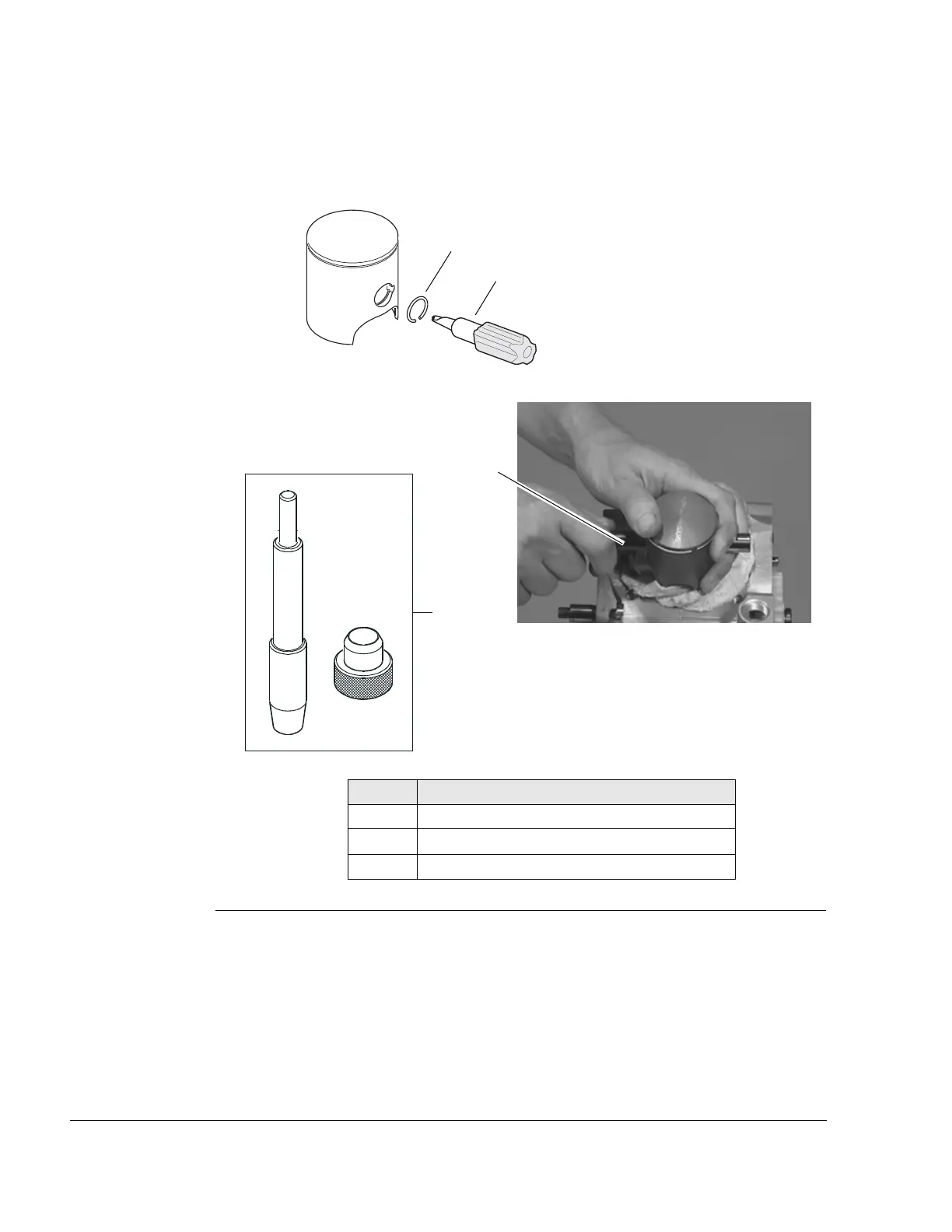

Graphic
Piston
Figure 5
K00035, K00153
Part Function
1 Circlip
2 Circlip puller
3 Special tool part no. 676035
3
1
2
3
