DK00026.fm
REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 4
Page 26
December 01/2010
Graphic

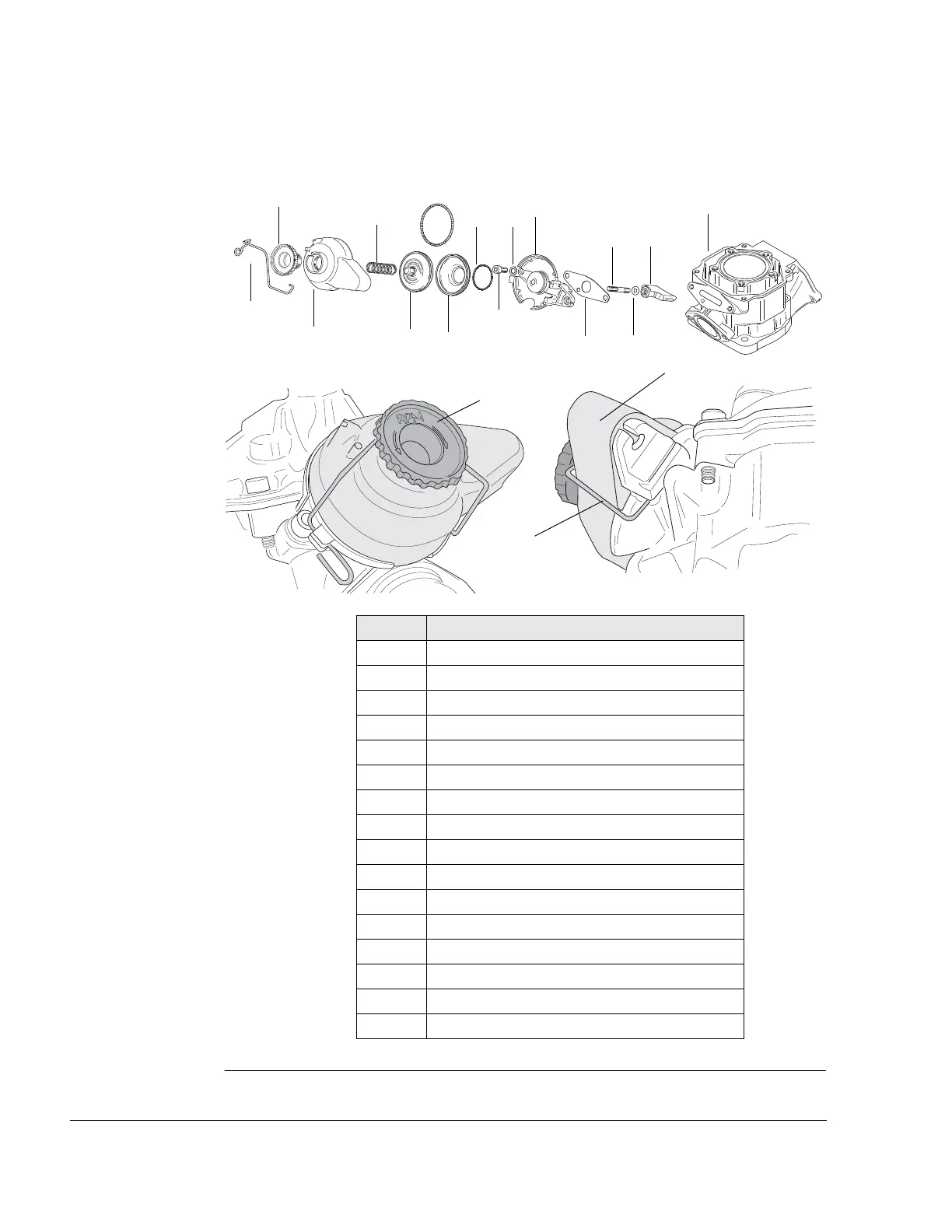

Exhaust valve
Figure 18
K00048, K00023, K00098,K00099
Part Function
1 Cylinder
2 Exhaust valve
3O-ring
4 Stud bolt
5 Gasket
6 Valve rod housing
7 Cyl. screw M6x16
8 Spring washer B6
9 Bellow
10 Exhaust valve piston
11 Hose spring 70
12 Hose spring 134
13 Compression spring
14 Valve cover
15 Adjustment screw
16 Spring clip
4 2
1
5
6
7
8
10
9
13
11
12
14
15
16
16
14
15
3
