REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 4
Page 28
December 01/2010
NOTES: The installation tool centers itself in the piston pin.

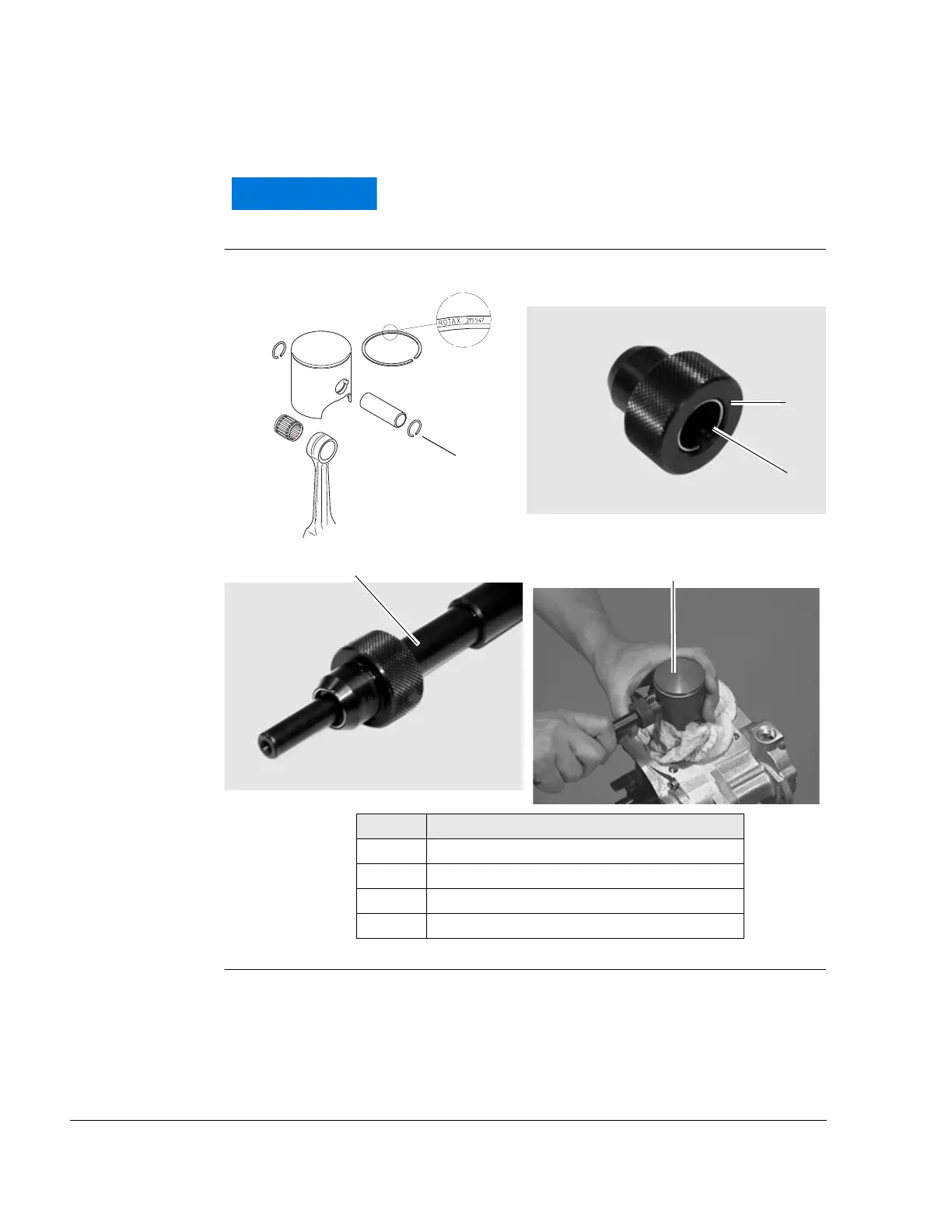

Graphic Piston pin
Figure 19
K00028, K00100, K00101, K00059

WARNING
NOTICE
Check that the circlip is correctly seated in the piston
groove.
Part Function
1 Circlip
2 Mounting sleeve
3 Installation tool
4Piston
1
3
1
2
4
