Rotax 912-UL Repair Manual

Version
without
overload
clutch:

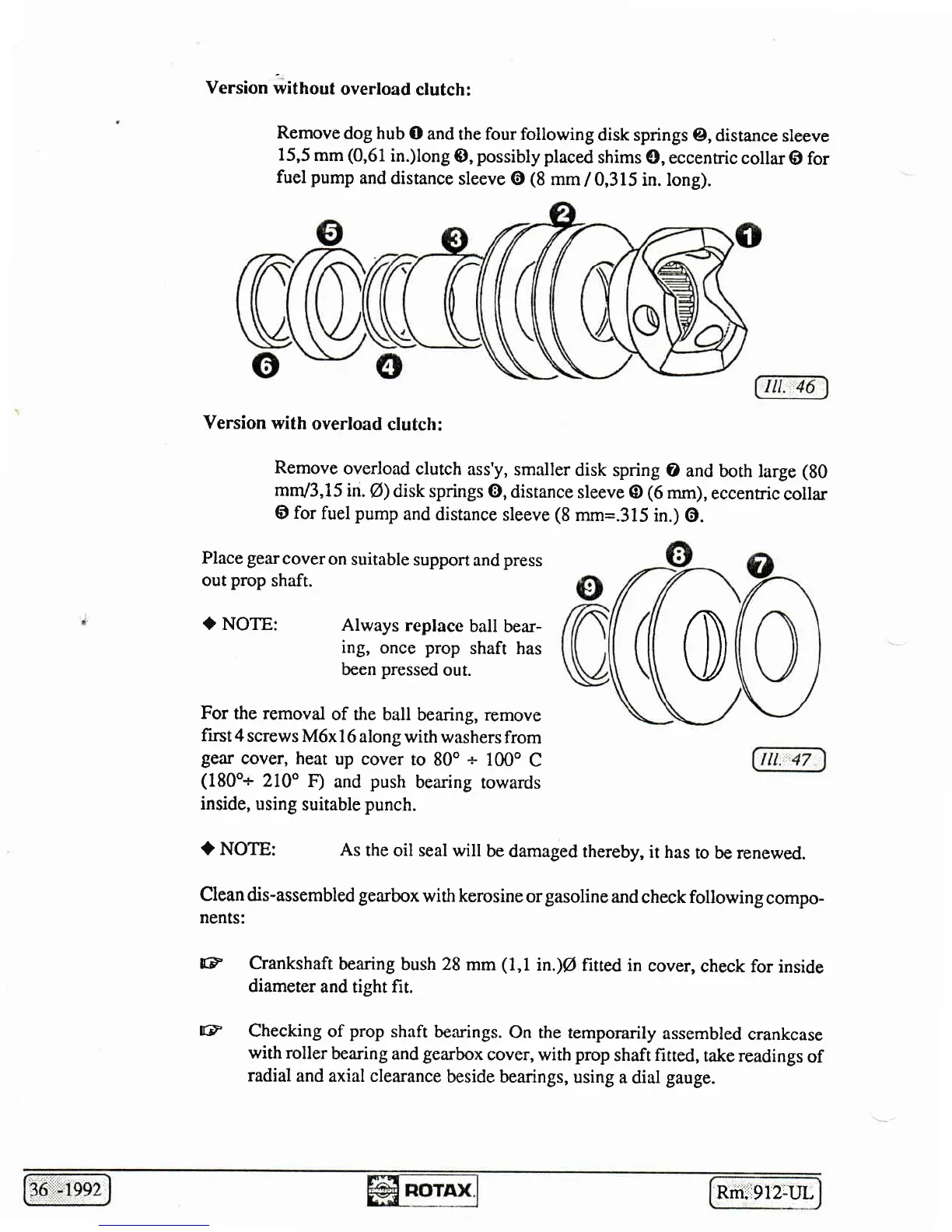

Remove
dog hub
o and
the
four
following
disk
springs @, distance
sleeve
15,5
mm
(0,61
in.)long
O,
possibly
placed
shims
O, eccentric
collar
O
for
fuel
pump
and
distance
sleeve
@
(8
mm
|
0,315 in. long).
Version
with
overload
clutch:
Remove
overload
clutch
ass'y,
smaller
disk
spring
o and
both large
(80
mm/3,15
in.Q)
disk springs
O,
distance
sleeve
(D
(6
mm),
eccentric
collar
@
for
fuel
pump
and distance
sleeve
(8
mm=.315
in.)
@.
Place gearcoveron
suitable
support
and
press
out
prop
shaft.
t NOTE:
Always
replace
ball
bear-
ing,
once
prop
shaft has
been pressed
out.
For
the removal
of the
ball bearing, remove
fint4
screws M6x16
alongwith
washersfrom
gear
cover, heat
up cover
to
80o
+
100o
C
(180"+
210o
D
and
push
bearing
towards
inside,
using
suitable
punch.
I
NOTE:
As
the oil seal will
be
damaged
thereby,
it has
to be renewed.
Clean dis-assembled gearbox
with
kerosine
or
gasoline
and
check
following
compo-
nents:
rP
Crankshaft
bearing
bush 28 mm
(1,1
in.)O
fitted in
cover,
check
for inside
diameter
and tight fit,
xe
Checking
of
prop
shaft
bearings.
On
the temporarily
assembled
crankcase
with roller
bearing
and
gearbox
cover, with
prop
shaft
frtted,
take readings
of
radial
and axial clearance
beside bearings,
using
a dial
gauge.
0
Rmj,912-UL
