Rotax 912-UL Repair Manual

The
gap
between
pump
cover and
rotor
ass'y to
be max. 0,2 mm
(0,008
in.).
A
bigger
gap greatly
reduces
pump
capacitiy.
At notice-able furrows on mating
faces
of
revolving
piston
and
rotor, renew
both
components.
Remove
pressure
control
valve, clean it
and
inspect
ball seat
in
pump
housing. Clear
all oil
passages
by
compressed
air.

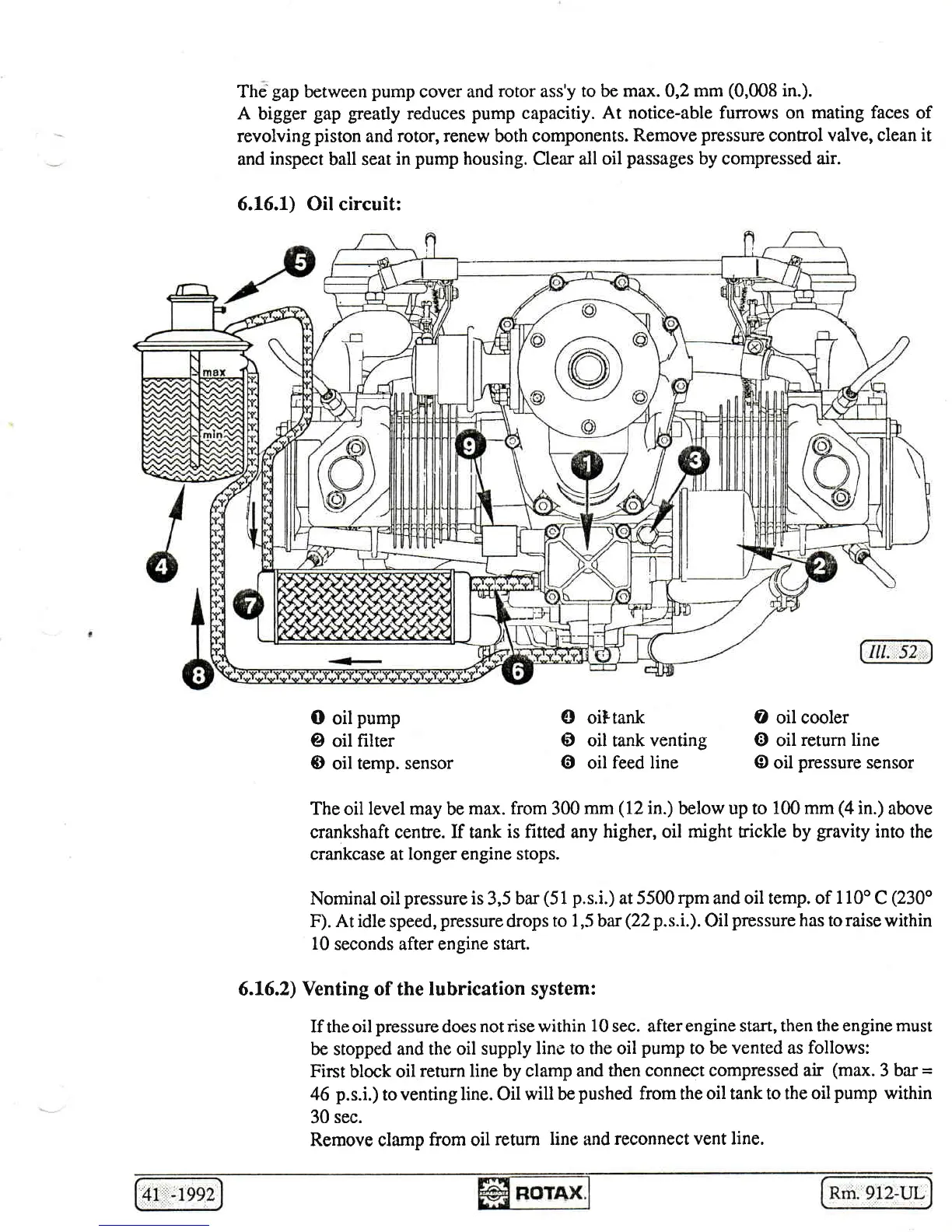

6.16.1) Oil circuit:
O oil
pump
@ oil
filter
0
oil
temp. sensor
oiFtank
oil tank
venting
oil
feed line
O oil cooler
@ oil
return line
0
oil
pressure
sensor
o
6
o
The
oil
level may
be
max.
from
300
mm
(12
in.)
below up to
100 mm
(4
in.) above
crankshaft cenre.
If
tank
is fitted any
higher,
oil
might rickle by
gravity
into
the
crankcase at
longer
engine
stops.
Nominal oil
pressure
is
3,5
bar
(51
p.s.i.)
at 5500
rpm
and oil temp. of
I l0o
C
(230'
F). At idle
speed,
pressure
drops
to 1,5 bu
(22p.s.i.).
Oil
pressure
has to raise
within
10
seconds after engine
start.
6.L6.2) Venting of the
lubrication system:
Iftheoilpressuredoesnotrisewithin
l0sec.
afterenginestart,thentheenginemust
be
stopped
and the oil
supply
line to the oil
pump
to
be vented as
follows:
First
block oil
return line by clamp and
then connect compressed
air
(max.
3
bar
=
46
p.s.i.)
to
venting line. Oil will be
pushed
from
the
oil tank to the oil
pump
within
30
sec.
Remove
clamp
from oil
return line and
reconnect
vent line.

Rotax 912-UL Specifications

General

Displacement	1211 cc
Bore x Stroke	79.5 mm x 61 mm
Compression Ratio	9.0:1
TBO (Time Between Overhaul)	2000 hours
Engine Type	4-cylinder, 4-stroke
Power Output	80 hp
Cooling System	Liquid/air-cooled
Fuel Type	Avgas 100LL or unleaded automotive gasoline
Oil Capacity	3 liters
Fuel System	2 carburetors
Oil System	Dry sump forced lubrication with separate oil tank
Reduction Gear Ratio	2.43:1
Max Continuous Power	75 hp (56 kW)
