BRP-Rotax
Maintenance Manual
72-00-00
page 50
May 01/2007
Effectivity 912/914 Series
Edition 1 / Rev. 0
d02622
07705
â– CAUTION : If the disc springs are not well centered, the dog gear
cannot be depressed sufficiently to allow insertion of
ring halves. Do not increase the pressure, but remove
the clutch again and center the disc springs more
accurately.
â—† NOTE: Coat contact surfaces of disc springs and dogs as well
as the tooth profile of propeller shaft with LOCTITE
Anti-Seize.

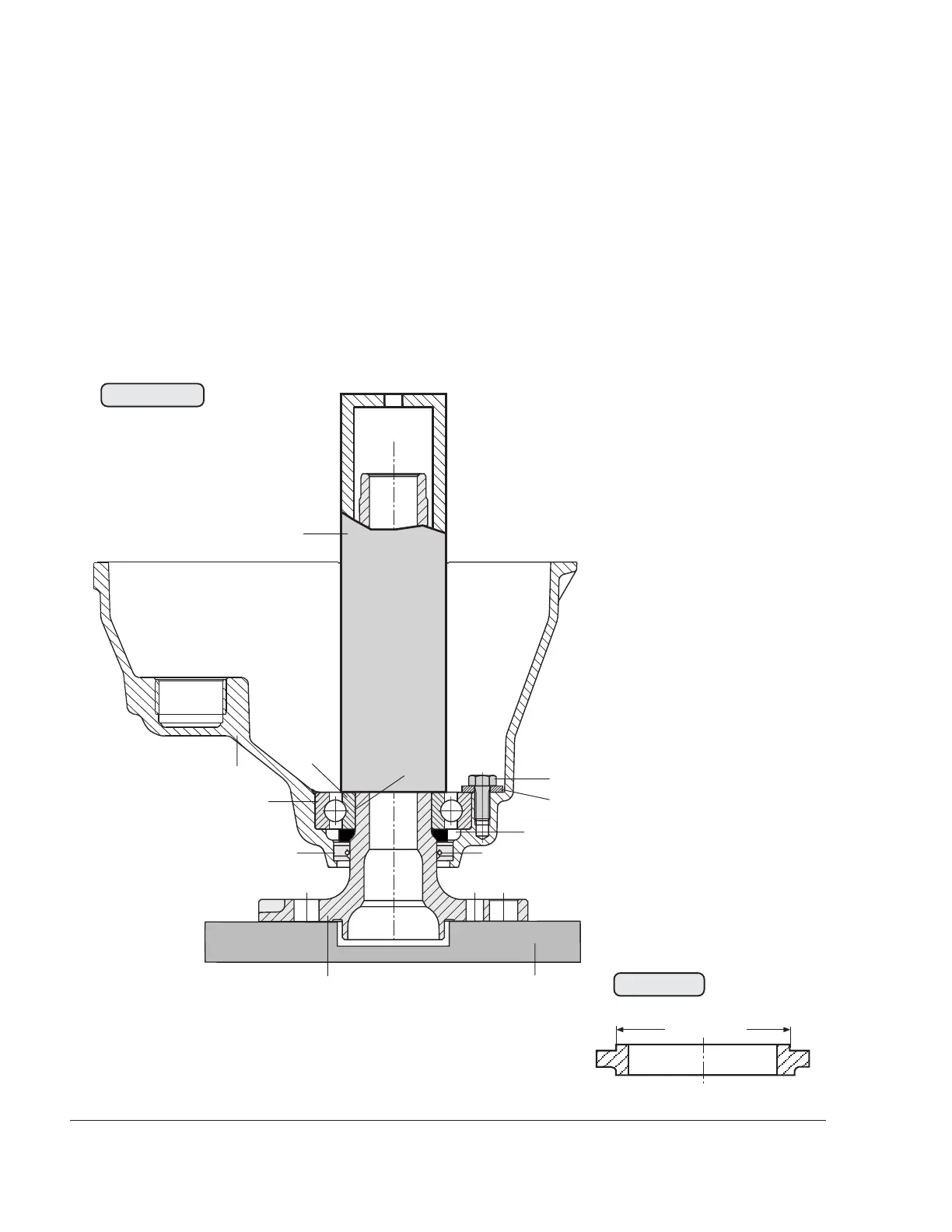

Fig. 72-51
ø
40,8 mm
1,606 in.
1
2
3
4
5
6
7
89
11
12
10
00276
Fig. 72-52
