2.1.2) Allocation of trigger coils and ignition circuits
See Fig. 74-5.
The upper trigger coils A1/2 and A3/4 (raised approx. 5 mm (0.20 in.))
control the top electronic module.
i.e.
Ignition circuit A: top trigger coil - top electronic module
Ignition circuit B: bottom trigger coil - bottom electronic
module
â—† NOTE: The spark plugs are supplied differently on the 912
Series and the 914 Series. See 74-00-00 sec. 3.10.
B3/4
A1/2
A3/4
B1/2
Drehzahlmesser
rev. counter
00135

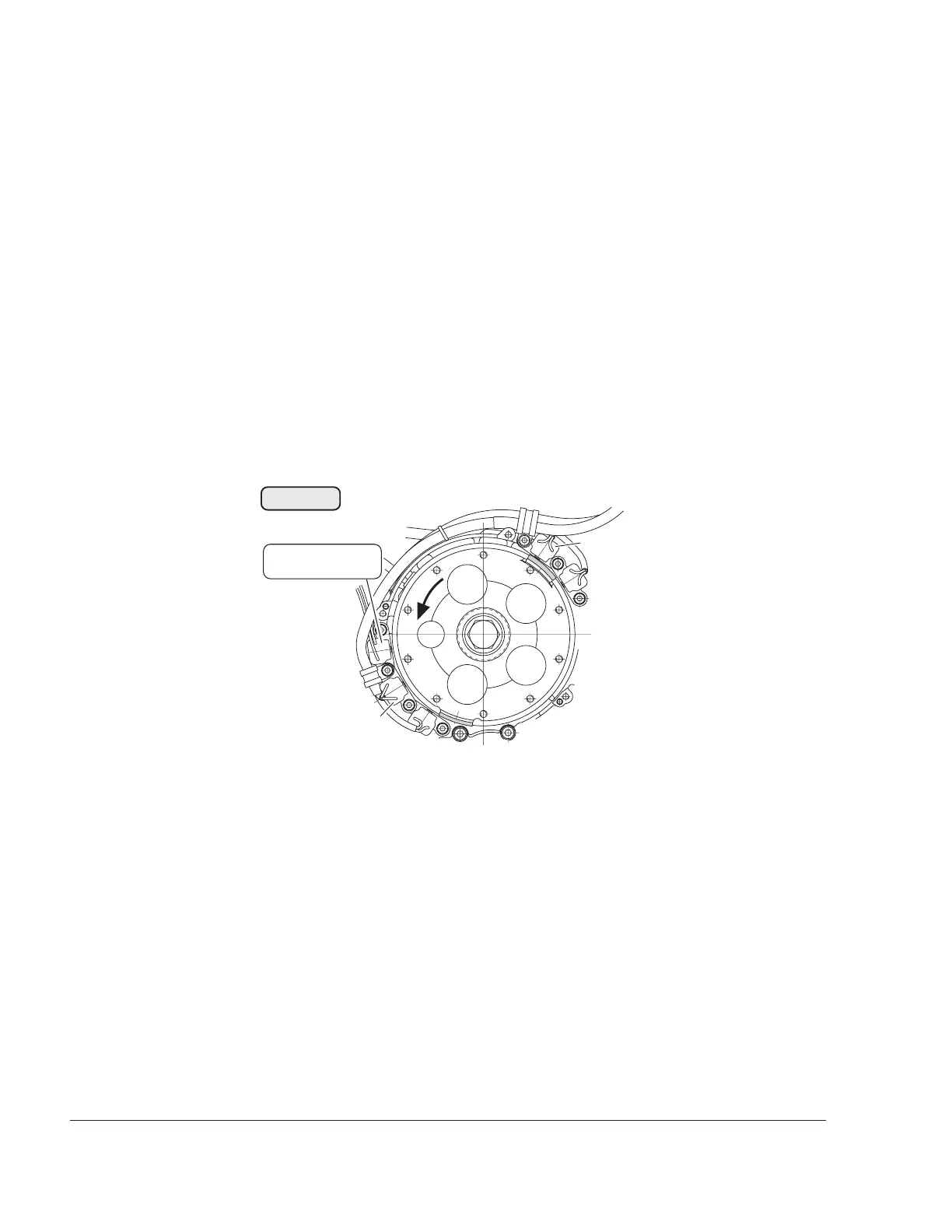

Fig. 74-5
