73-00-00
page 40
May 01/2007
Effectivity 912 Series
Edition 1 / Rev. 0
d02623
BRP-Rotax
Maintenance Manual
3.4.4) Fuel lines (on 912 Series)
See Figs. 73-33, 73-34, 73-35, 73-36.
â– CAUTION : When removing fuel lines, support them adequately to
avoid strain or additional load.

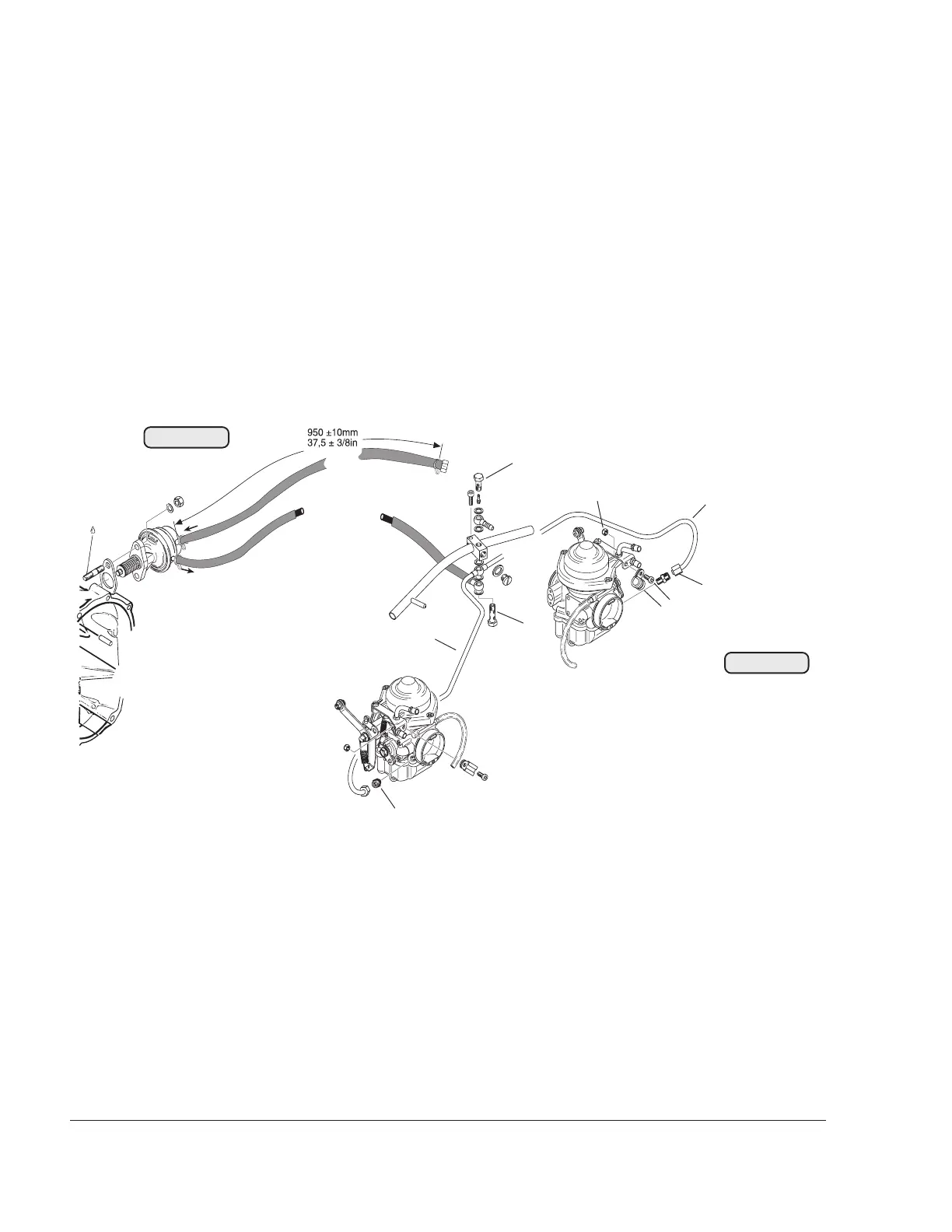

Rigid fuel line
The fuel line (1) is supported by a cable clamp (2) on the carburetors.
These clamps are attached with allen screws M5x12 (3) and lock nuts
(4), which must be removed. Unscrew the collar nut (5) from the
carburetor and remove the fuel line.
07492
Fig. 73-34
5
5
14
1
14
Fig. 73-33
1
4
3
2
