Rotax OM-912 Maintenance Manual

73-00-00
page 6
May 01/2007
Effectivity 914 Series
Edition 1 / Rev. 0
d02623
BRP-Rotax
Maintenance Manual

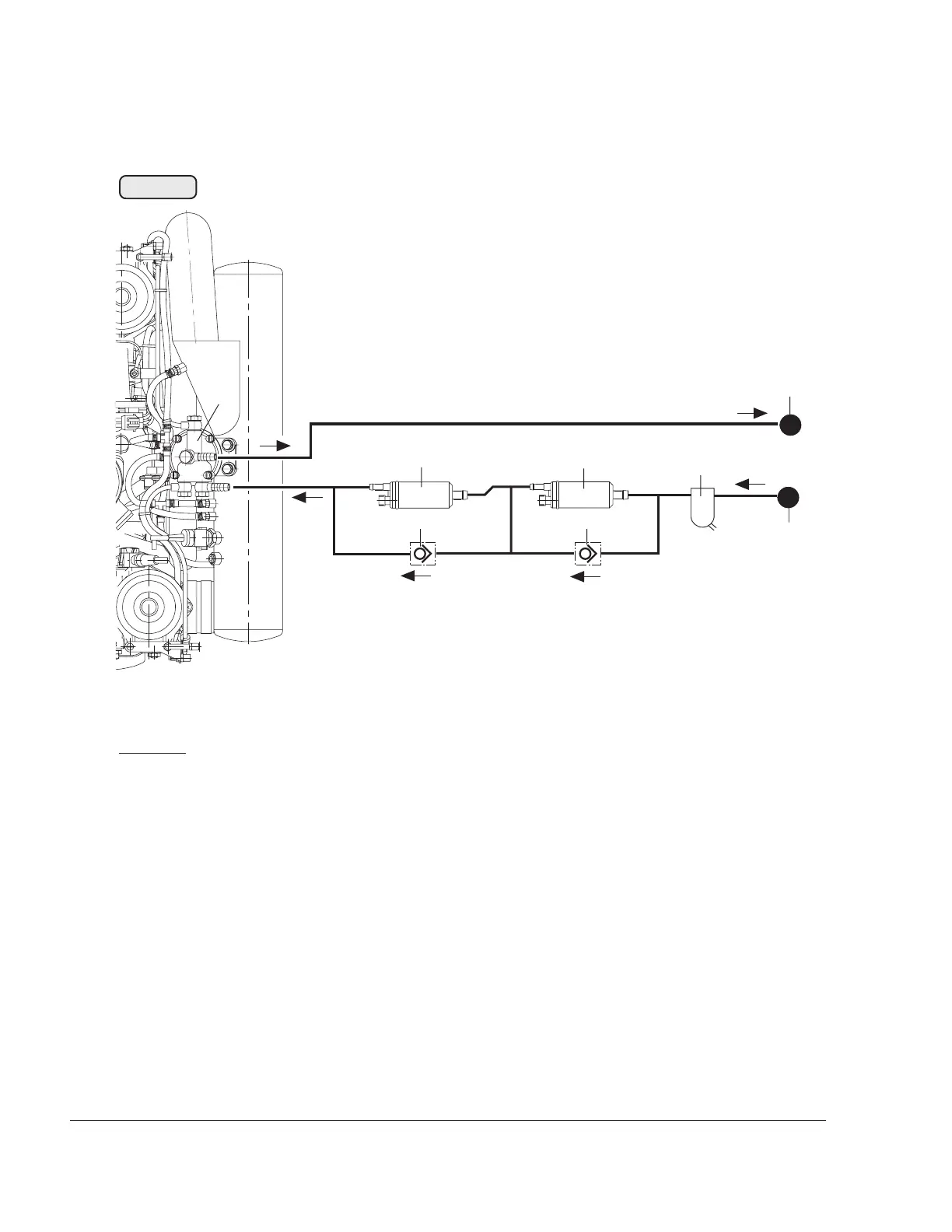

Legend:
(1) fine filter / water trap
(2) main fuel pump (MAIN)
(3) auxiliary fuel pump (AUX)
(4) check valve
(5) fuel pressure regulator
(6) inlet from the tank
(7) return line to tank
AUX MAIN
00103
6
7
1
2
3
4
5
4
Fig. 73-2
