Effectivity 912/914 Series
Edition 1 / Rev. 0
79-00-00
page 9
May 01/2007
d02628
BRP-Rotax
Maintenance Manual
6
zum hydr. Verstellregler
(optional)
to hydr. governor
Ölzulauf
oil inlet
zum Öltank
to oil tank
3
7
1
9
8
5
4
16
18
19
10
11
12
13
2
9
15
2
17
0-10
bar
00131

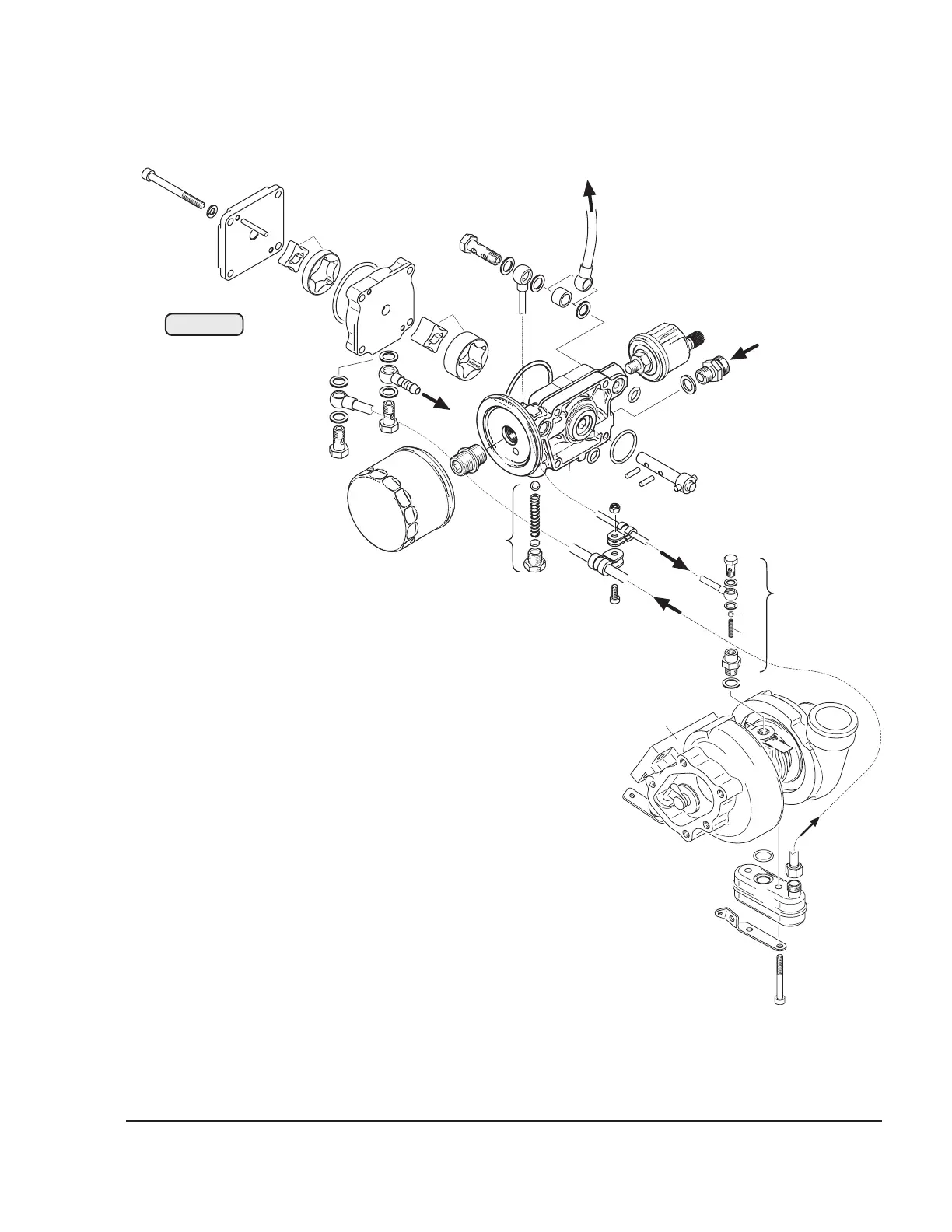

Legend to Fig. 311:
(1) Turbocharger
(2) Pressure oil line (turbocharger)
(3) Pressure valve
(4) Valve housing
(5) Pressure spring
(6) Ball ø 5.5 mm (0.22 in.)
(7) Banjo bolt
(8) Oil sump
(9) Suction line (turbocharger)
(10) Ring hose nipple
(11) Suction pump
(12) Main oil pump (pressure oil pump)
(13) Oil pump housing (main oil pump)
(14) Oil pump housing (suction oil pump)
(15) Oil pump shaft
(16) Oil feed line
(17) Oil pressure sensor
(18) Oil filter
(19) Pressure relief valve
912 Series
914 Series
Fig
. 79-4
