80-00-00
page 8
May 01/2007
Effectivity 912/914 Series
Edition 1 / Rev. 0
d02629
BRP-Rotax
Maintenance Manual
3.2.2) HD starter

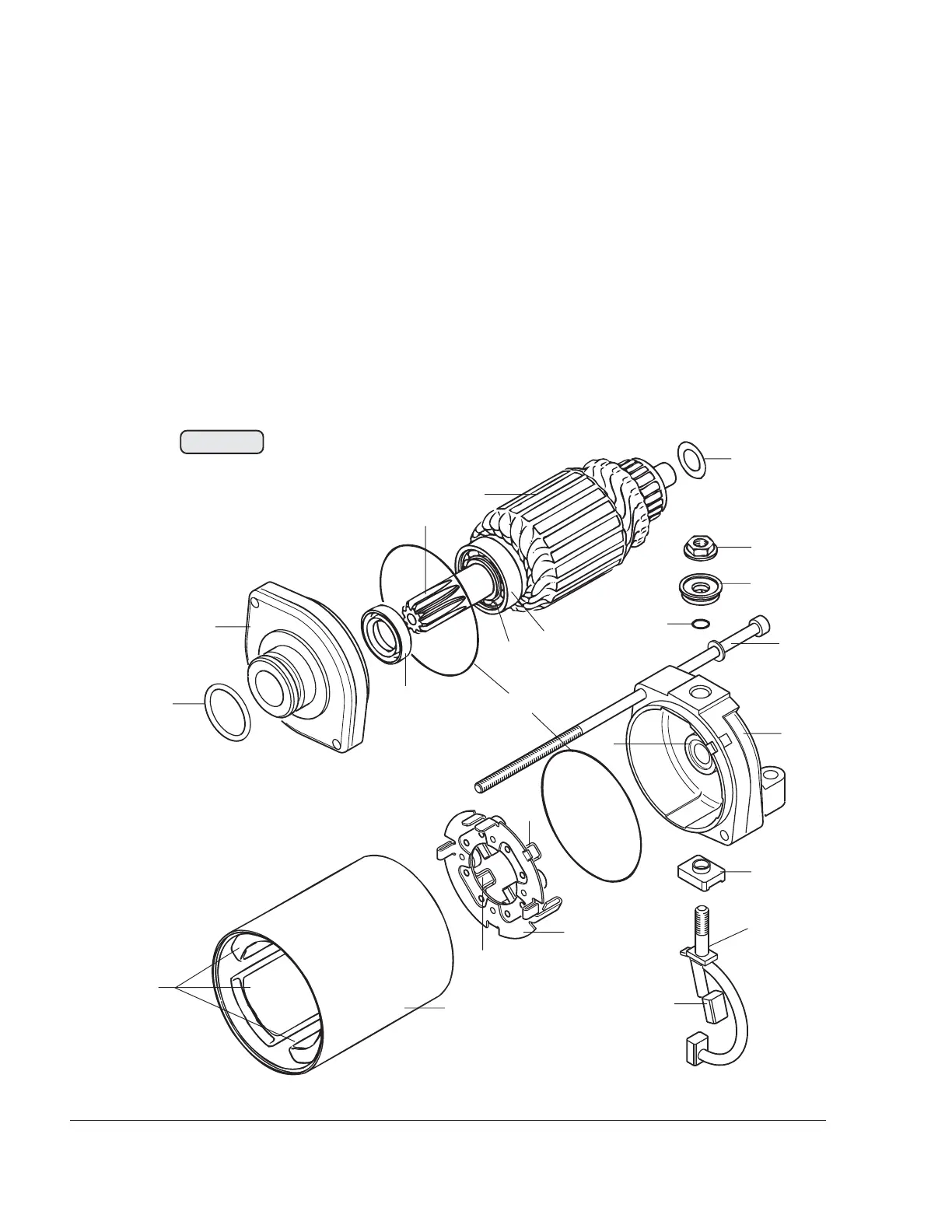

See Fig. 80-4
Unscrew combined nut (23) and remove connector sheath (17) with O-
ring (19). Unscrew allen screw (24) M5 and pull bearing flange (1) off
the starter housing (2). Carefully pull rotor bearing (3) a short way off
the starter housing and press the positive carbon brush (23) out of the
rotor bearing.
Remove brush holder (4) with the carbon brushes from the rotor (5).
Pull rotor out of the starter housing together with compensating shim
(6). Clean all parts thoroughly. See 00-00-00 sec. 10.3.
07735
19
20
1
23
17
10
12
5
6
13
3
19
14
16
23
4
17
18
2
14
21
11
24
Fig. 80-4
