16
FA ROTEX HPSU compact 4 - 06/2015
4 x Set-up and installation
4.1.2 ROTEX HPSU compact 508/516
1 Solar - feed
2 Cold water
3 Hot water
4 Heating feed
5 He
ating return flow
6 Connection coolant gas line
7 Connection coolant fluid line
8 Solar - flow (only type ... BIV)
9 Solar - return (only type ... BIV)
AFront
BBack

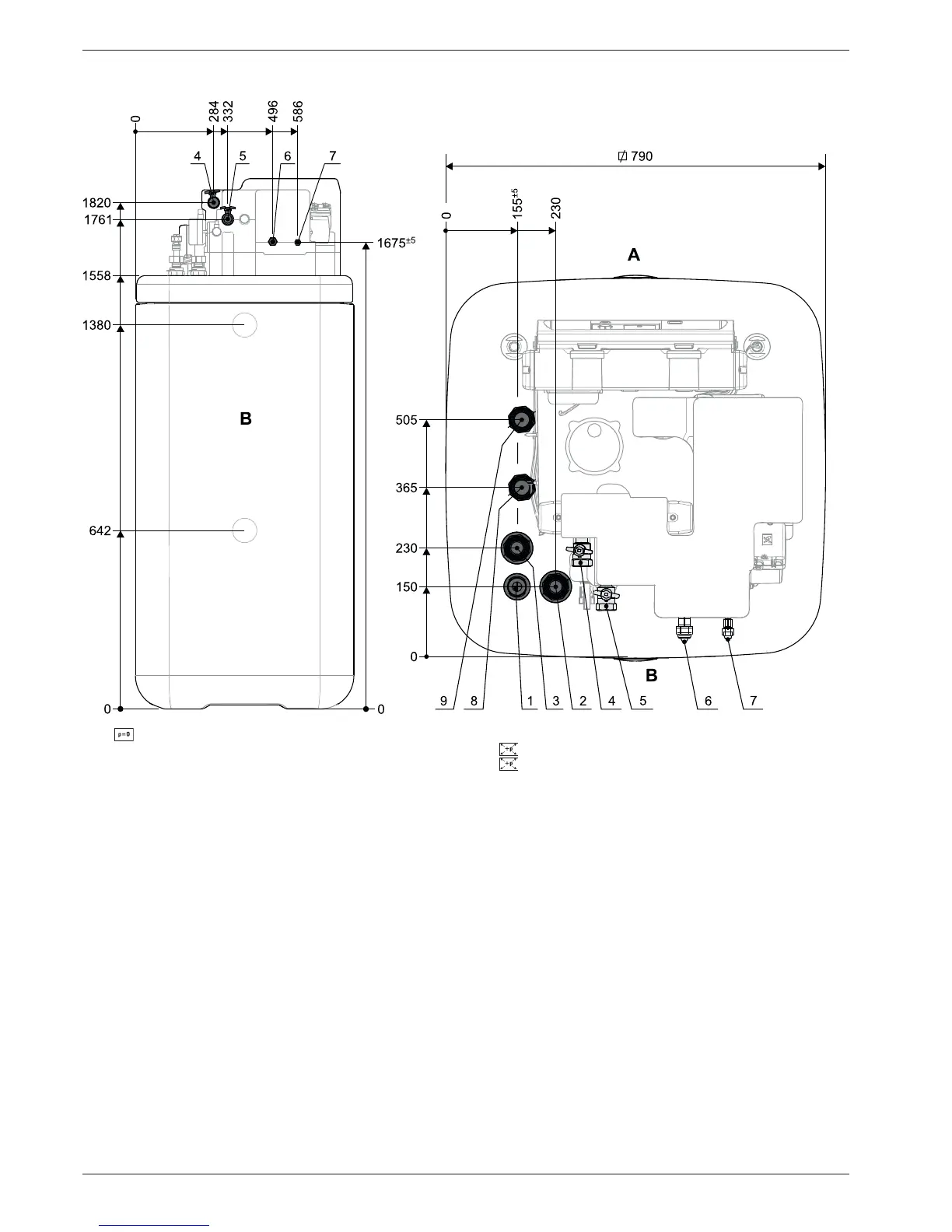

Fig. 4-2 Connections and dimensions ROTEX HPSU
compact 508/516 (in general)
