10
BA ROTEX HPSU compact 4 - 09/2013
2 x Product description
2.2.5 Equipment external and internal structure HPSU compact 508/516 BIV

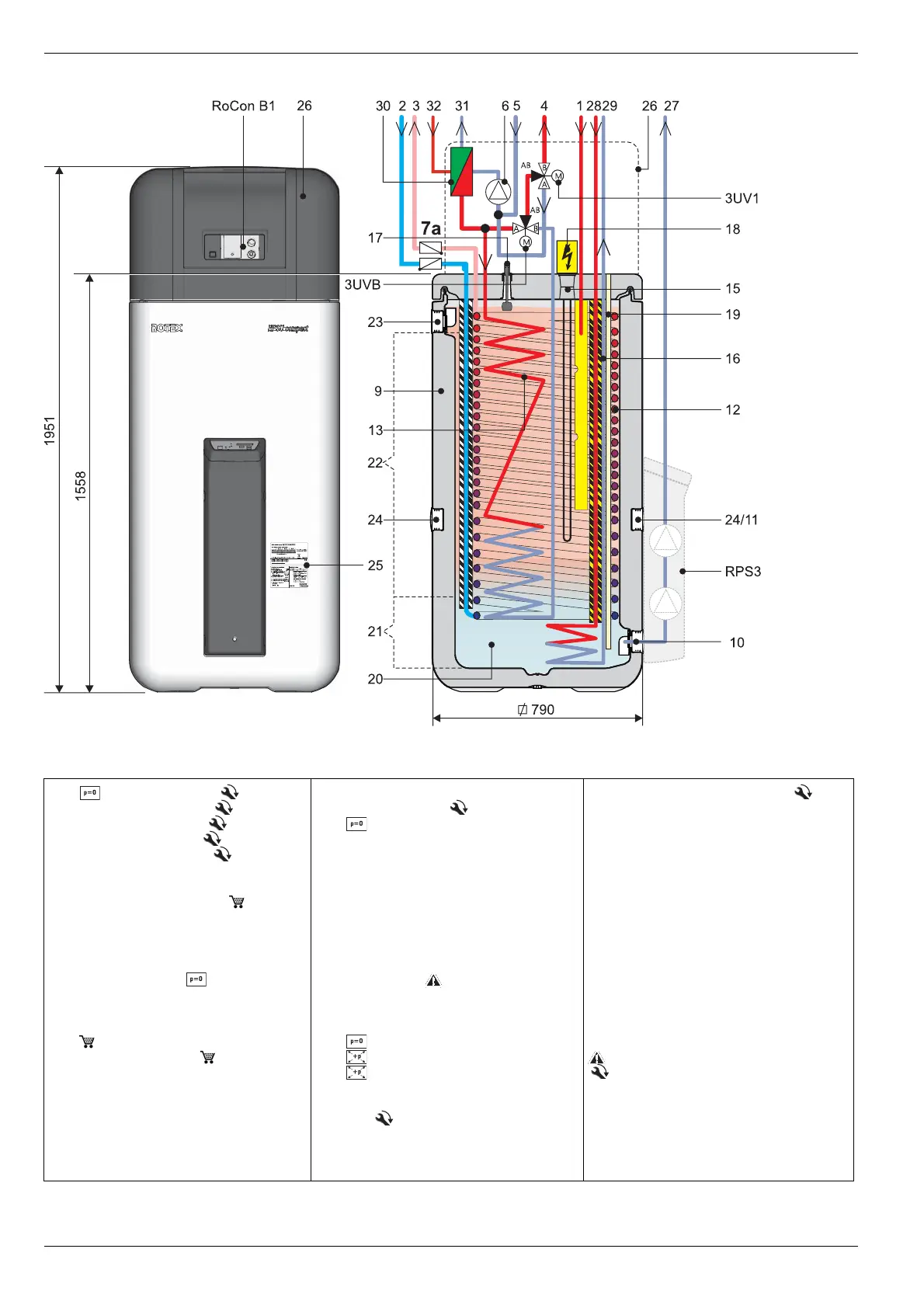

Fig. 2-5 Structure and constituents HPSU compact 508/516 BIV (External appearance and internal structure)
Designations of key see tab. 2-1
1 Solar - feed (1" ÜM)
2 Cold water flow (1" AG)
3 Hot water flow (1" AG)
4 Heating flow (1" AG)*
5 Heating return (1" AG)*
6 Circulation pump
7a Recommended accessories:
Non-return valves (2 pcs.), 16 50 70
9 Storage tank (double-wall polypropylene
sleeve with
PUR rigid foam heat insula-
tion)
10 Filling and drain connection (Tr. 32x3 AG)
with valve insert or
solar return con-
nection
11 Mount for solar R3 controller or handle
or connection for balance line (AGL,
16 01 08) or extension kit for addition-
al heat source (EWS,
16 01 10)
12 Heat exchanger (stainless steel) for
drinking water heating
13 Heat exchanger (stainless steel) for
storage tank charging or heating
support
(1
14 Heat exchanger (stainless steel) for
pressurised solar storage tank charging
15 Connection for optional electrical backup
heat
er (R 1½" IG)
16 Solar inflow layering pipe
17 Fill level indicator (water circuit)
18 Optional: electrical backup heater
(R 1½" IG)
19 Submersible sensor sleeve for storage
tank temper
ature sensor t
DHW1
and t
DHW2
20 Unpressurised storage tank water
21 Solar zone
22 Hot water zone
23 Safety overflow connection
(Tr. 32x3 AG)
24 Carrying loop
25 Type plate
26 Protective cover
27
Solar - return
28
Solar - flow (only type BIV)
29
Solar - return (only type BIV)
30 Panel heat exchanger
31 Fluid line for connection of refrigerant
fluid
HPSU compact 30x/508: CuT, Ø 6.4 mm
(1/4"),
HPSU compact 516: CuT, Ø 9.5 mm (3/8")
32 Connection refrigerant gas line
CuT, Ø 15.9 mm (5/8")
3UV1
3 way diverter valve (hot water/heating)
3UVB
3 way diverter valve (temperature limiting)
AG Male thread
IG Female thread
ÜM Union nut
RoCon B1
HPSU compact Control
RPS3
Optional: ROTEX Solaris R3 control and
pump
unit
Safety devices
Observe the correct tightening torque!
* Ball cock (1" IG) is su
pplied with the equip-
ment
(1 Shown on type 508
Tab. 2-1 Legend from fig 2-2 to fig 2-5
