Rotex HPSU compact 308 - Equipment External and Internal Structure HPSU Compact 508;516 DB

2 x Product description
BA ROTEX HPSU compact 4 - 09/2013
9
2.2.4

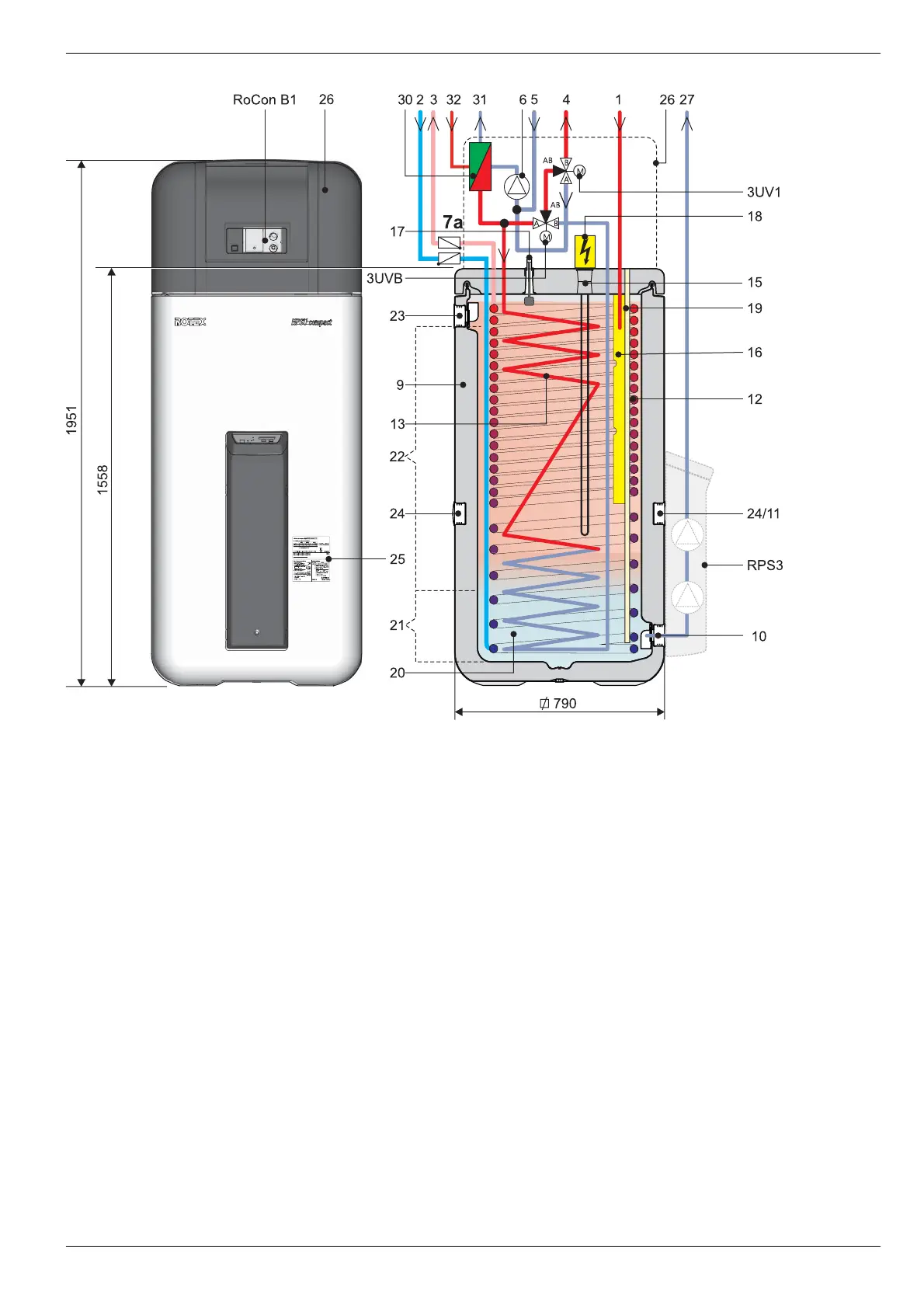

Fig. 2-4 Structure and constituents HPSU compact 508/516 DB (External appearance and internal structure) 
Designations of key see tab. 2-1
Equipment external and internal structure HPSU compact 508/516 DB
