After the oil-air mixture in the ne separator
cartridge has been deoiled, the compressed air
ows through the air cooler and from there to the
consumer.
The oil ows via a thermostat located in the ther-
mostat head to the oil cooler.
The cooled oil ows from the oil cooler via the
oil lter back into the internal oil-air circuit of the
compressor module.

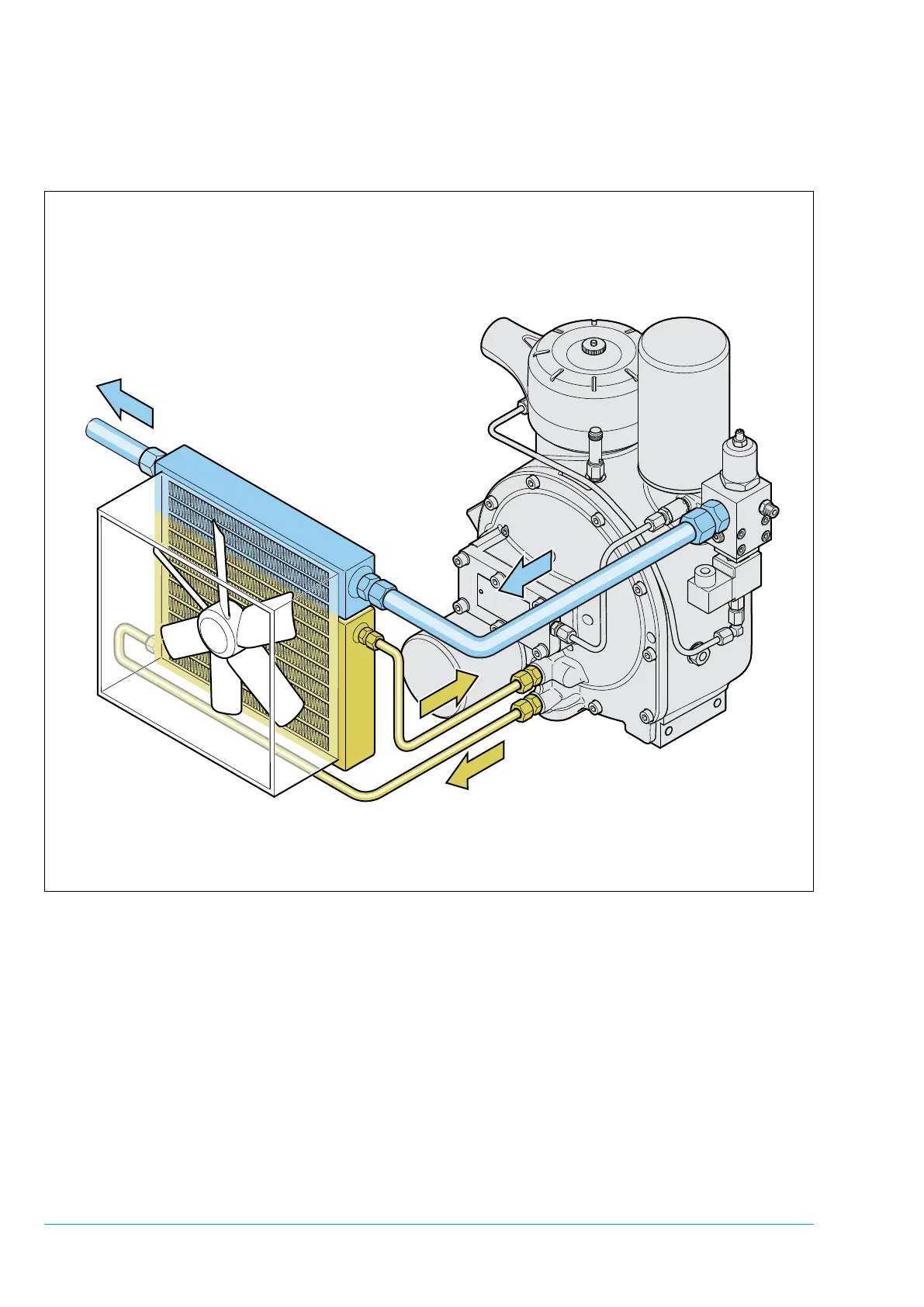

Figure 3-13
3.12 Air-oil circulation outside compressor module
