- All devices within a multi-drop should use the same Baud rate. See Baud rate compatibility
requirements.
- Models with Ethernet (TCP/IP) interface: please note that the Baud rate of the HygroFlex and
the Baud rate of the internal Ethernet module should be set to the same value.
4.6 Selection of the probe supply voltage (main PCB)

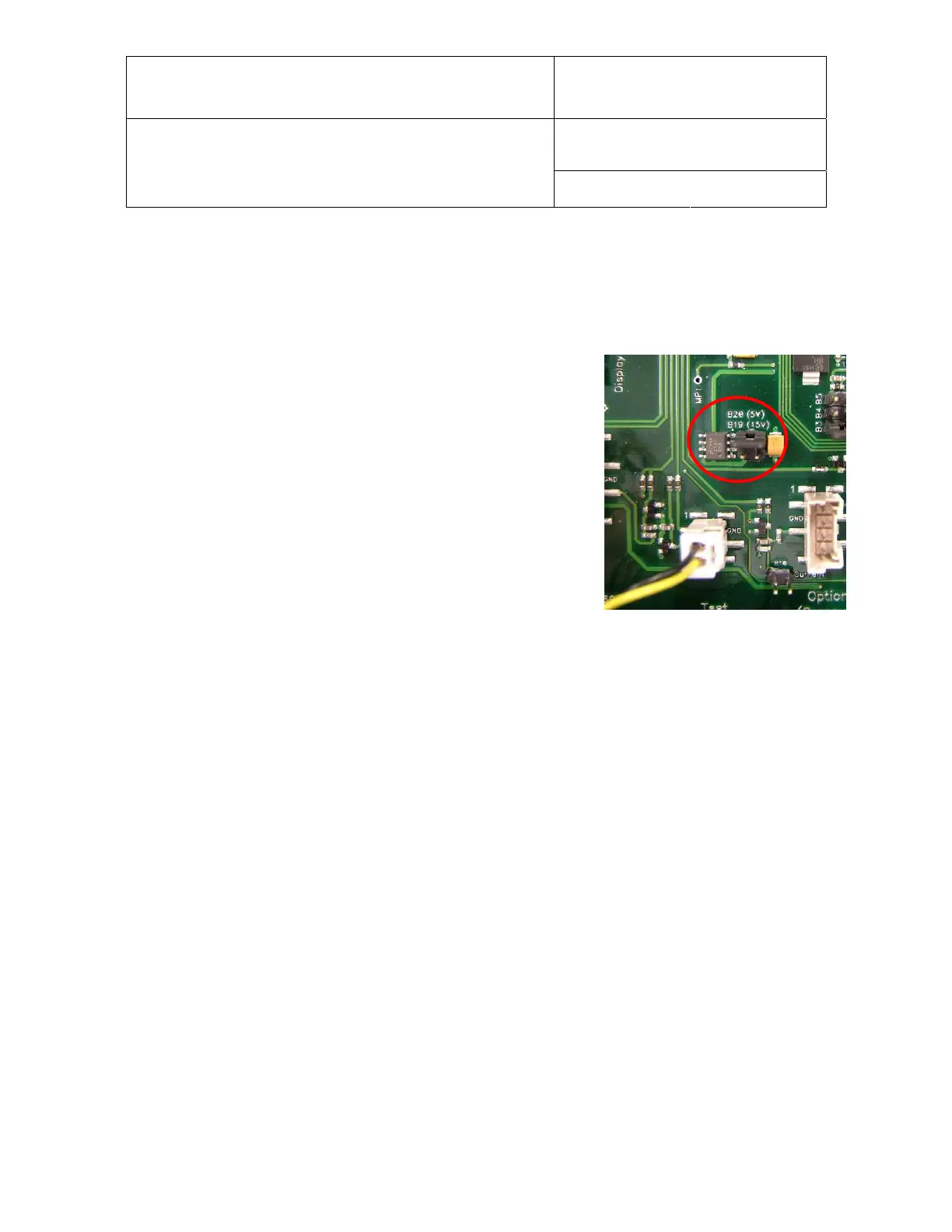

Starting with PCB number 66.0738.0602, the default
factory setting for the probe supply voltage is 5 VDC.
IMPORTANT: HygroClip EX probes require 15 VDC
power supply. A third party analog probe may also
require a supply voltage of more than 5 VDC (HygroFlex
2 and HygroFlex 3). Moving jumper B20 to B19 supplies
all probes with 15 VDC
