6.8 Cable grips

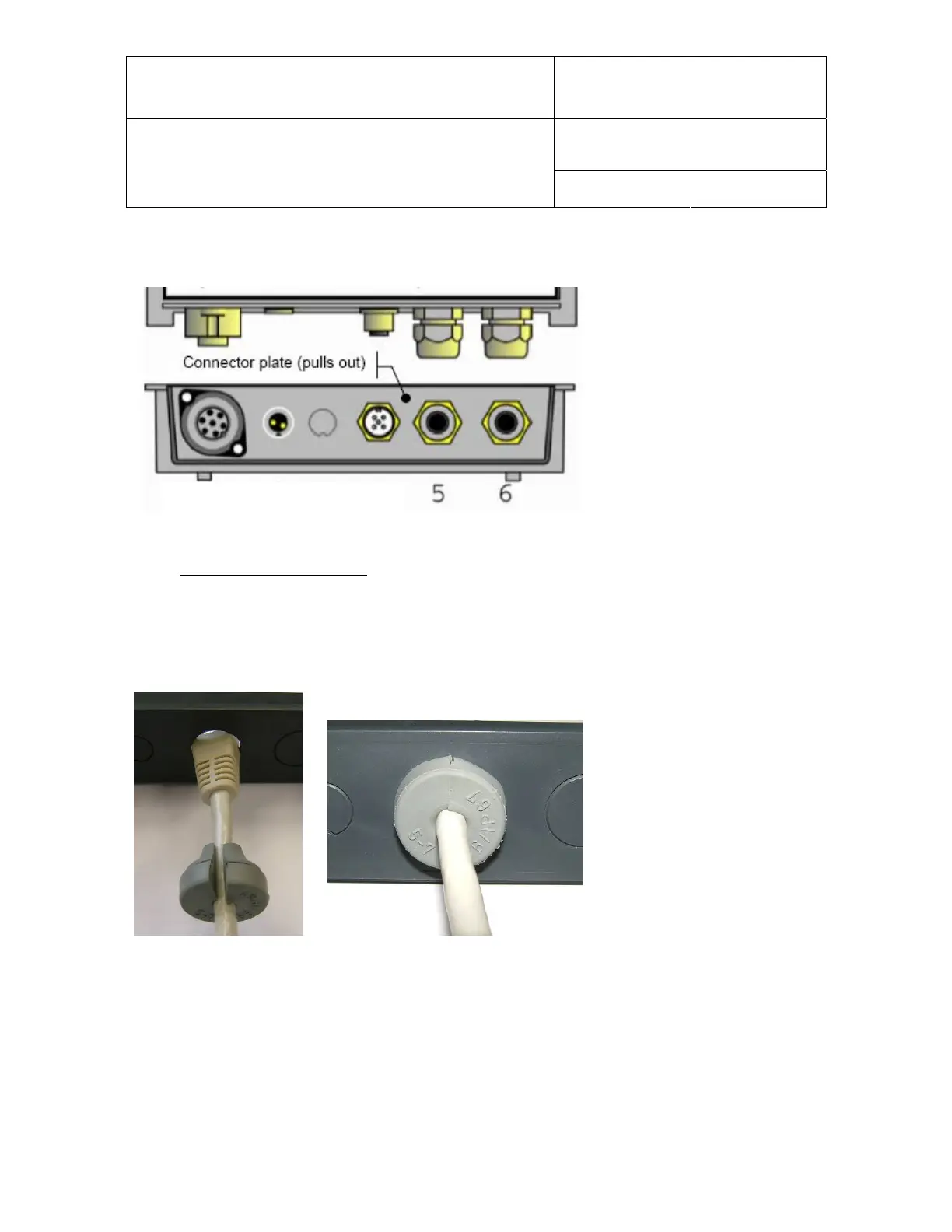

Cable grips (5 and 6) provide effective sealing only with cables having the proper outside diameter.
Preferably, use a cable with an outside diameter of 6 to 7 mm (0.236 to 0.275”) and with 18AWG
wires. Seal any unused cable grip
. On request, the connector plate is available with 1/2” conduit
adapters instead of cable grips.
We strongly recommend running the analog output signal cable separately from the power cable.
6.9 Grommet for the Ethernet cable (HygroFlex 2 and 3 option)
