Rottler HP6A - Gear Housing Removal

Maintenance 4-8 HP6A Manual
Gear Housing Removal:
Disconnect all electrical and air power to hone before making any repairs.

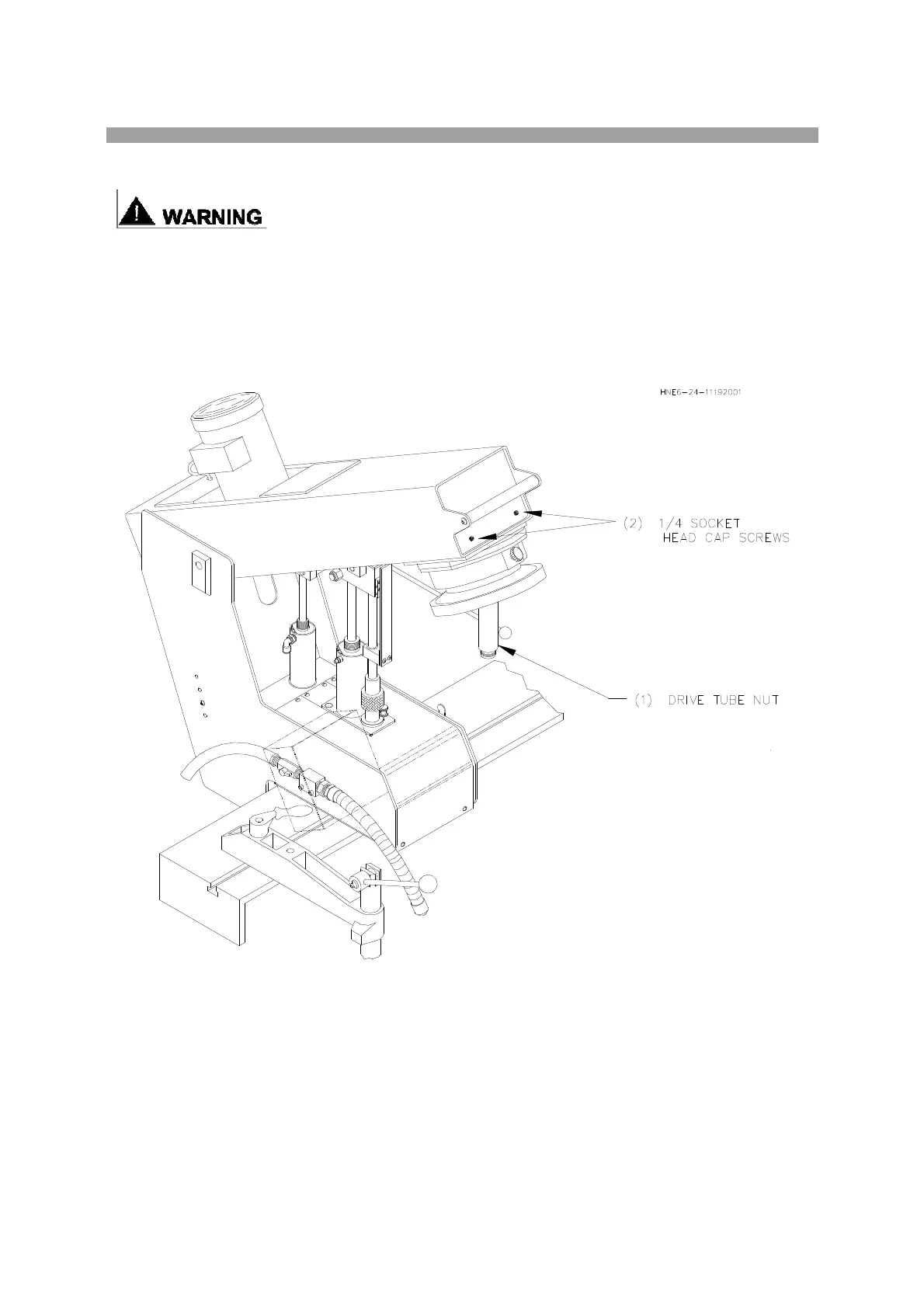

(1) Remove the hone head, at drive tube nut. The drive tube nut is located below the adjusting
handwheel.
Remove the drive belt as described on page 4.6.
(2) Remove two 1/4” socket head cap screws in the front cover of the rocker arm.
