Maintenance
4-29
HP6A Manual

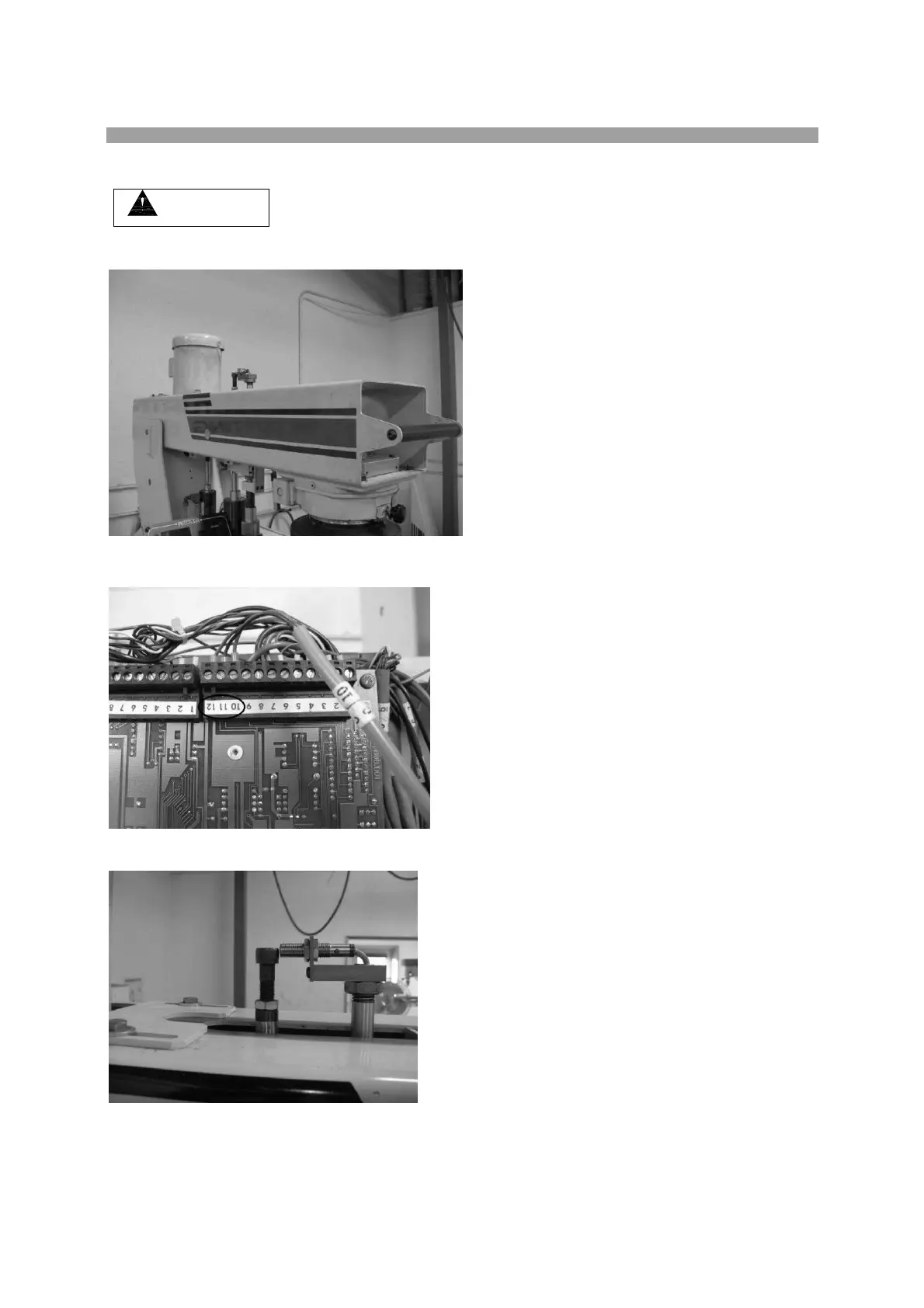

Replacing Pivot Block Assembly:
WARNING
Disconnect all electrical and air power before making any repairs
1 Remove upper cover from rocker arm.
2 Remove carriage cover plate.
3 Remove cable C-10 from terminal strip on back side of control panel. Note wire locations.
4 Remove actuation bolt and lock nut.
To Next Page
