Maintenance
4-11
HP6A Manual

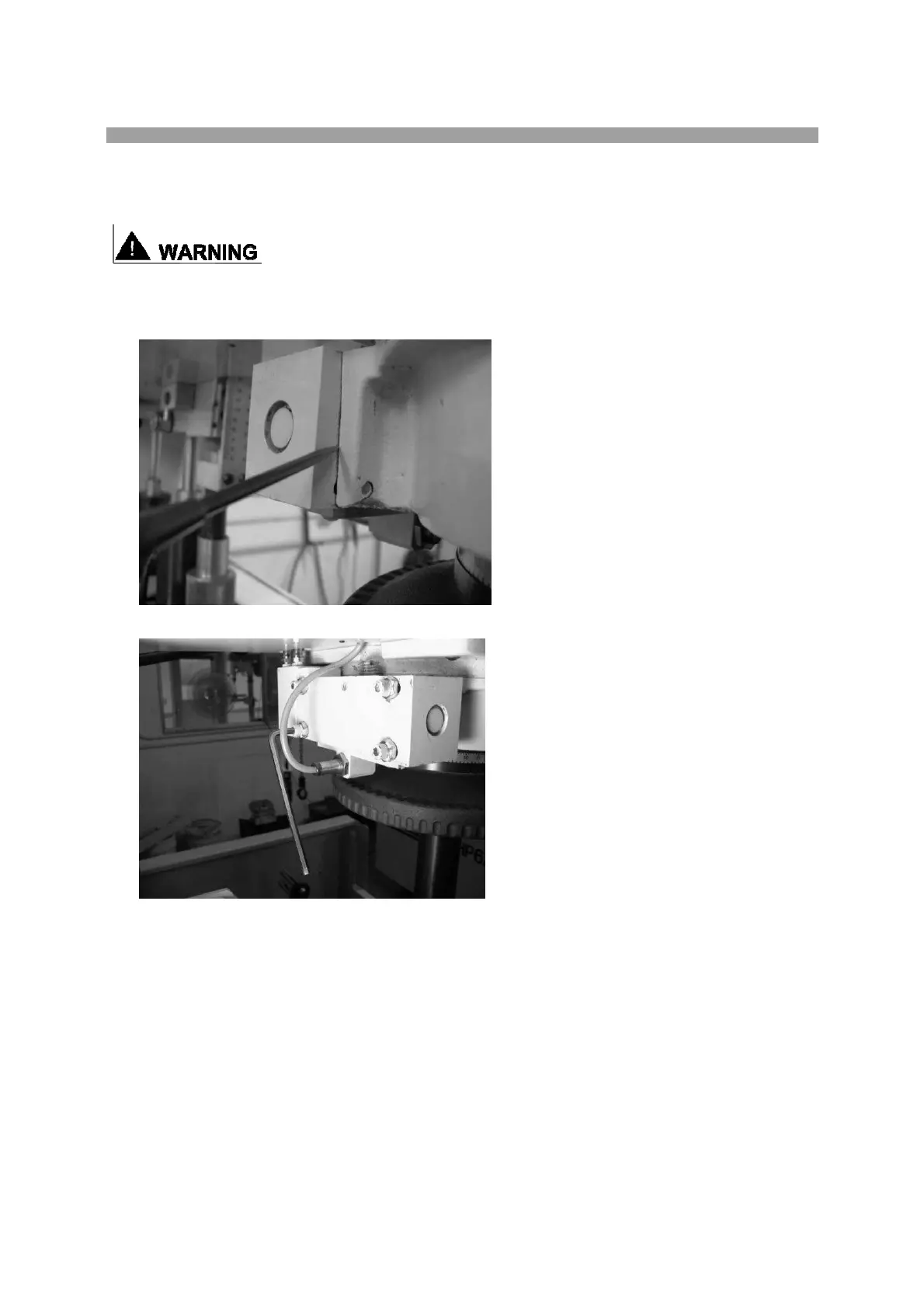

Adjusting Feed Out Actuator Housing:
Disconnect all electrical and air power before making any repairs.
1 Place scribe mark on feed out actuator housing to mark original location.
2 Loosen 4 bolts holding housing to back of gearbox.
3 Use rubber mallet to move housing to the left or right as needed. Take caution not to strike
shifting spool pin.
4 Tighten bolts then test feed out performance.
5 Make further adjustments as needed.
