Chapter 4. Start up
Powering the System
Ensure that the power supplies are disconnected when the power cord
plug into the power connector.
Connector Power
VX-601 allows a wide range of DC power input from 9~60V via a 4-pin circular power cord.
There are two options to start up the VX-601 via car power cable or external power adapter.

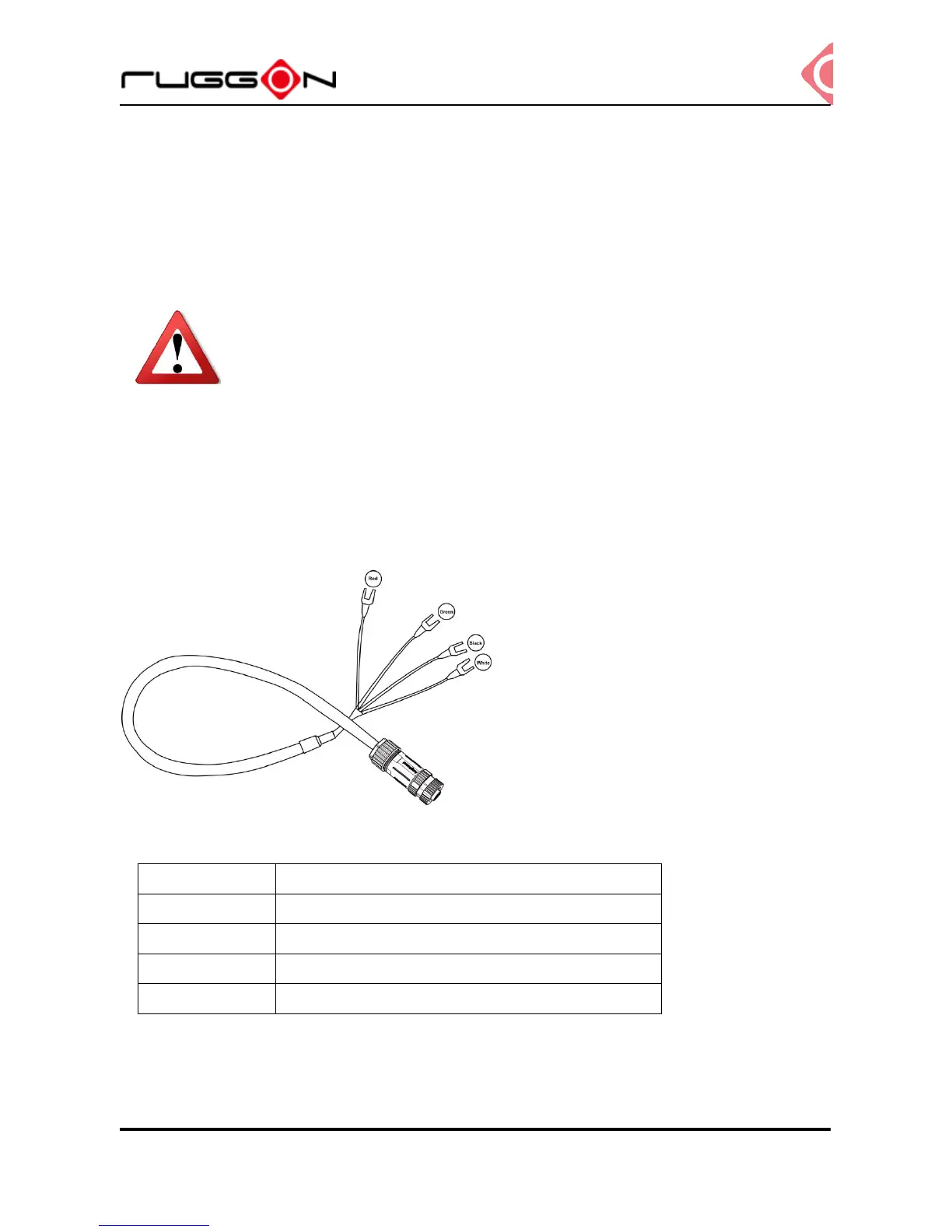

Here is the 4-pin circular power cord.
The wire definition.
Wire Color
Description
RED
V+
BLACK
V-
GREEN
Chassis Ground
WHITE
ACC/ Ignition
