Power source from car power cable
1. The bare wire lead cable allows you to directly wire 12 V, 24 V, 36V and 48V power cable
or adapters. Please follow the wire definition to connect to your power source.

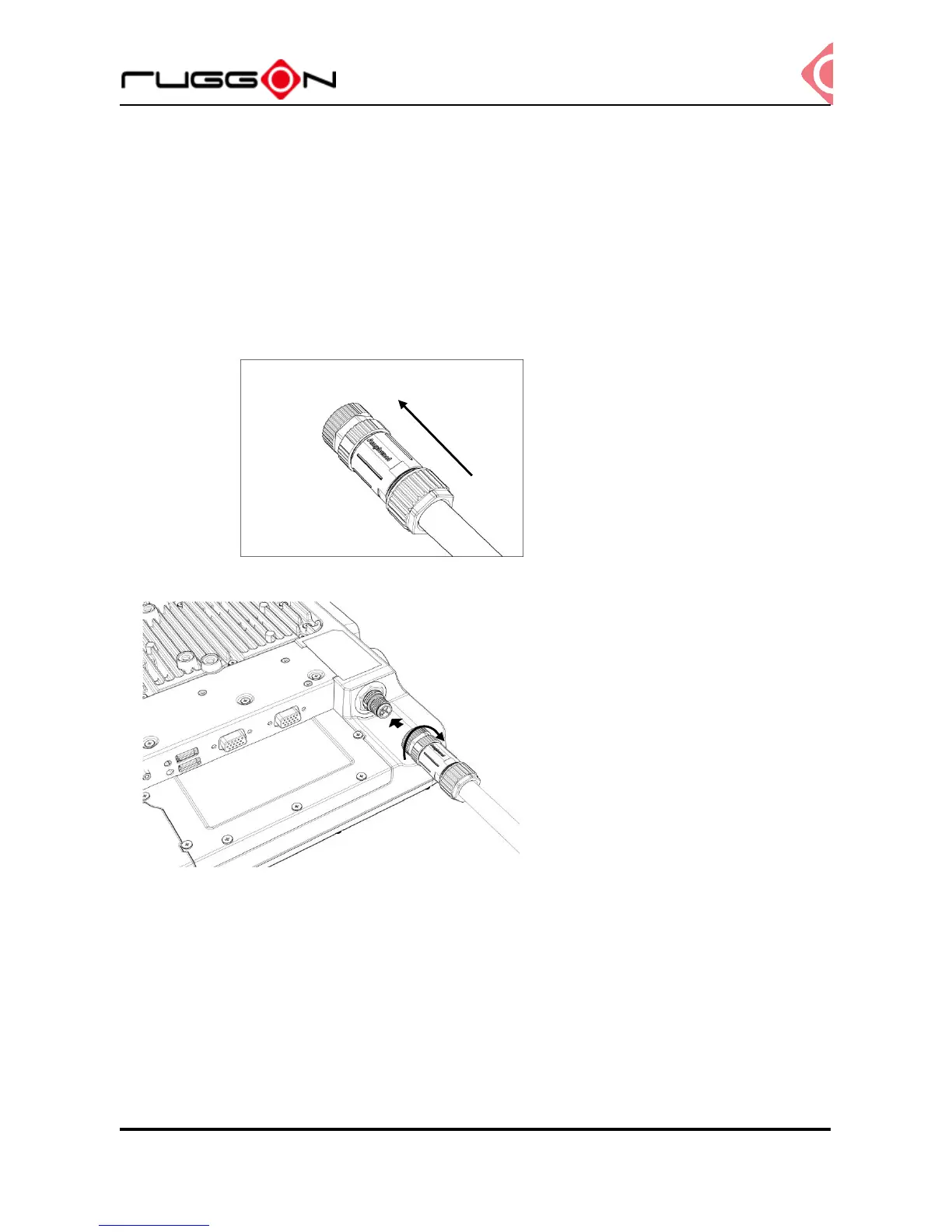

2. Plug the power code into the power connector facing the top of the arrow mark.
3. Twist the nut to lock the power connector to the device.
Power source from external power adapter
If your power source is from external power adapter, the power source will not be control by
AAC/Ignition signal. Please short red (V+) and white (ACC/ Ignition) wires.
