After bundling up cables with cable ties, cut off the remaining part. The cut should be smooth and trim, without
sharp corners.

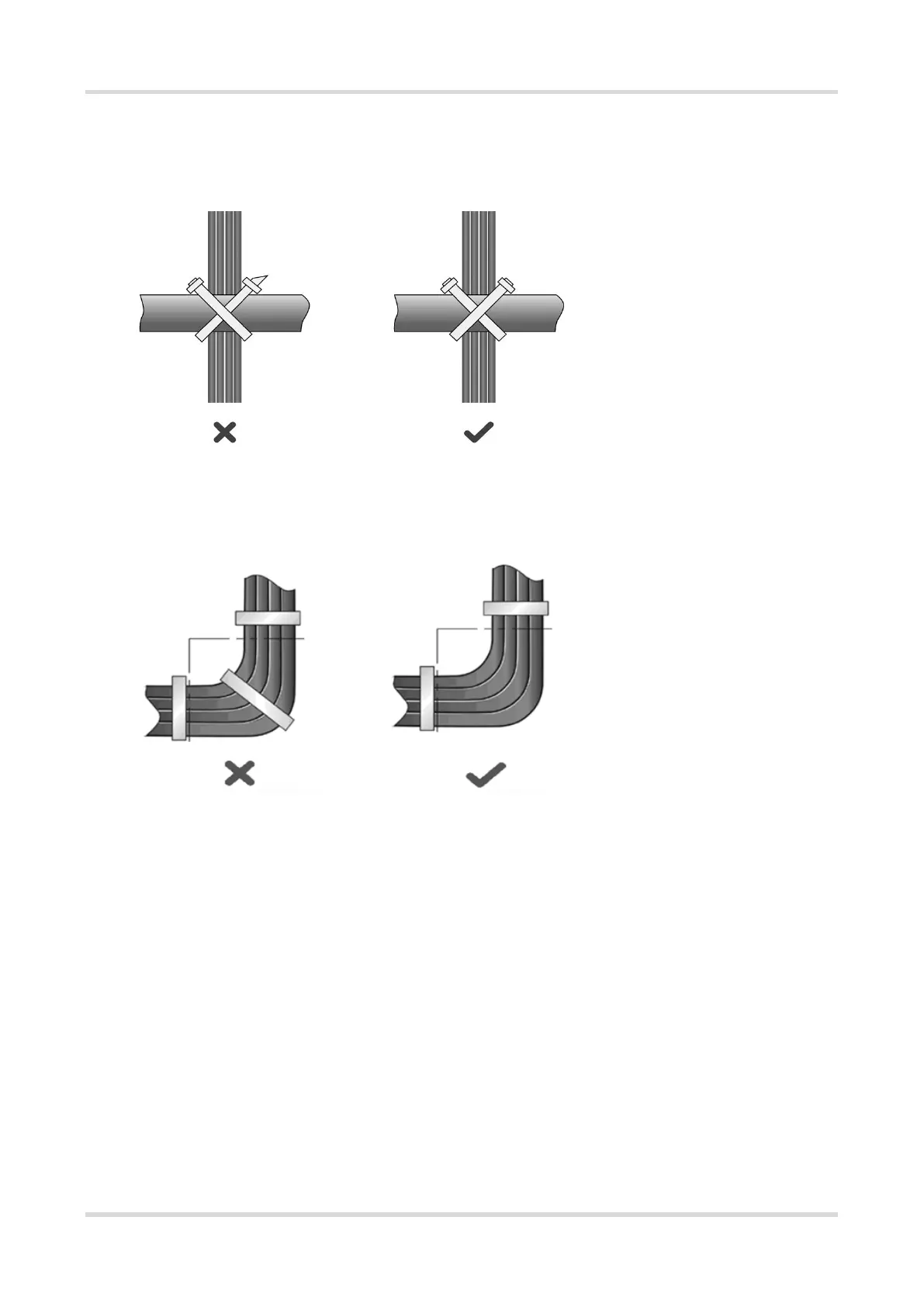

Figure 7-5 Binding Cables
When cables need to be bent, please bundle them up but do not tie them where the cables will be bent.
When cables need to be bent, please bundle them up but do not tie them where the cables will be bent.
Figure 7-6 Binding Cables
Cables not to be assembled or remaining parts of cables should be folded and placed in a proper position of
the rack or cable trough. The proper position refers to a position that does not affect device running or damage
the device or cable.
220 V and –48 V power cords must not be bundled on the guide rails of moving parts.
The power cords connecting moving parts such as grounding cables should be reserved with some access
after being assembled to avoid suffering tension or stress. After the moving part is installed, the remaining
cable part should not touch heat sources, sharp corners, or sharp edges. If heat sources cannot be avoided,
high-temperature cables should be used. If heat sources cannot be avoided, high-temperature cables should
be used.
When screw threads are used to fasten cable terminals, the anchor or screw must be tightly fastened.
