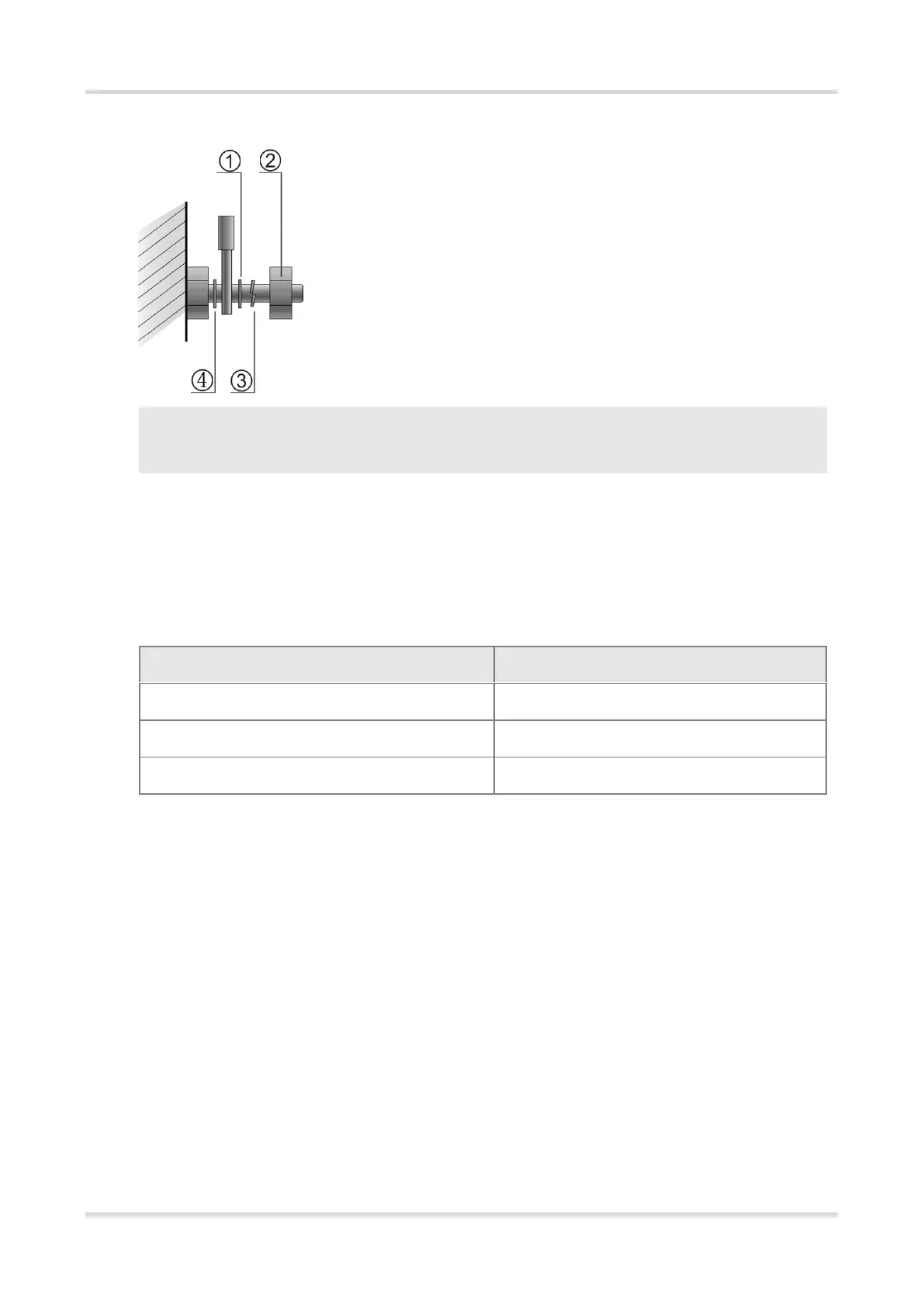

Figure 7-7 Cable Fastening
Hard power cords should be fastened in the terminal connection area to prevent stress on terminal connection
and cable.
Do not use self-tapping screws to fasten terminals.
Power cords of the same type and in the same cabling direction should be bundled up into cable bunches,
with cables in cable bunches clean and straight.
Bundle up cables by using cable ties.
Distance between Every Binding Point
80 mm to 150 mm (3.15 in. to 5.91 in.)
10 mm to 30 mm (0.39 in. to 1.18 in.)
150 mm to 200 mm (5.91 in. to 7.87 in.)
200 mm to 300 mm (7.87 in. to 11.81 in.)
No knot is allowed in cabling or bundling.
For wiring terminal blocks (such as circuit breakers) with cord end terminals, the metal part of the cord end
terminal should not be exposed outside the terminal block when assembled.
