Micro-Imaging MR Systems
Revision C, August 2013
18-2
The ERT Module RF shield and shielded cable in effect place the ERT Module inside
the magnet’s RF shield allowing MR images to be free of RF induced interference from
the external environment.

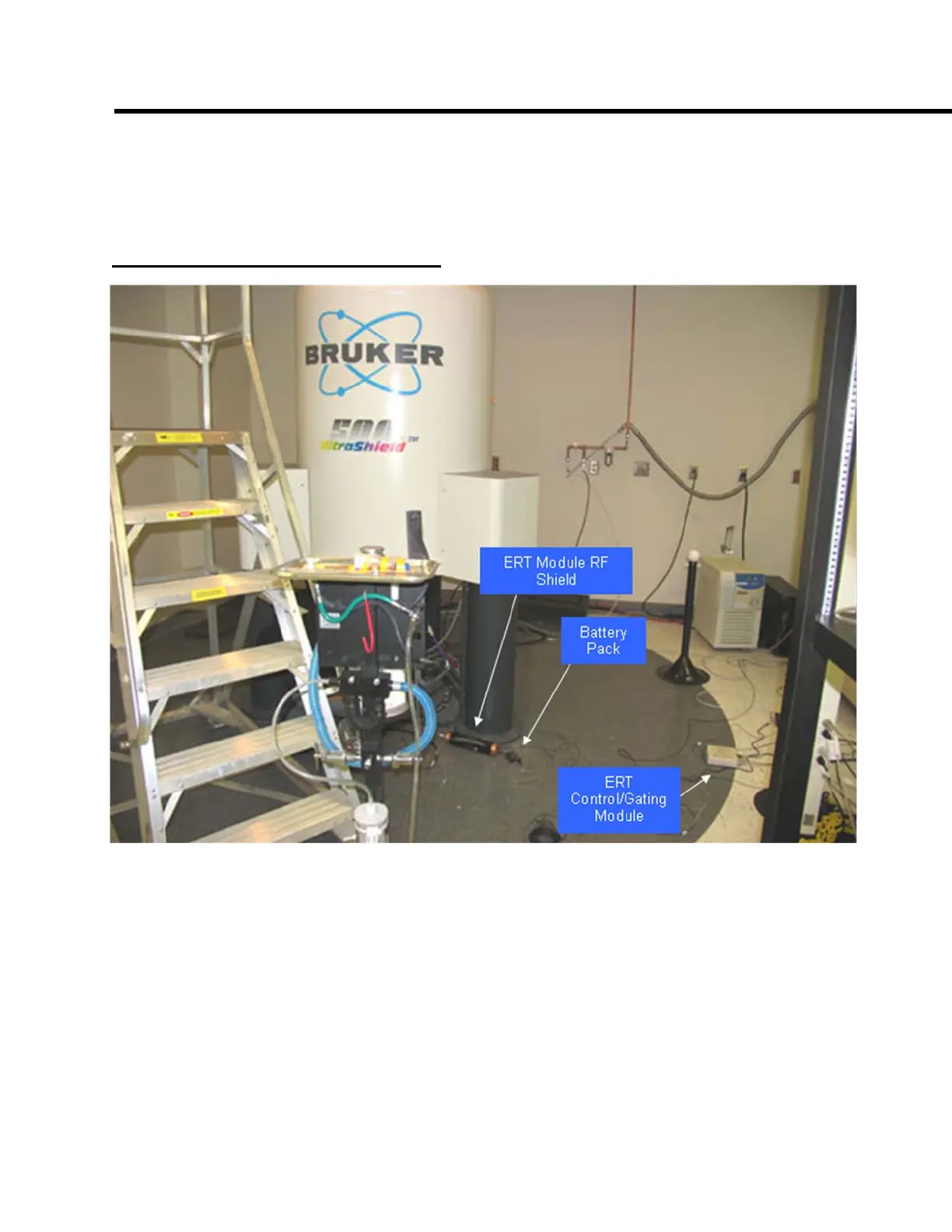

Micro-Imaging equipment setup
The equipment is implemented with the Micro-Imaging MR system as shown above.
The ERT Module inside the ERT Module RF Shield resides at any convenient location
on the floor under the magnet. The Lemo cable connects the ERT Module RF shield to
the MR probe which is inserted in the magnet.
Respiration measurements using the pneumatic pillow are made by connecting
extension tubing to the ERT Module.
