Invasive Blood Pressure
Revision C, August 2013
10-3
The Abbott Transpac IV transducer can be connected directly to the IBP Module at the
IBP connection. If the transducer connector has a protective boot around it, remove the
boot. The connection snaps into the receptacle and locks with the locking clip.
Invasive blood pressure transducers from other manufacturers can also be used with
the system. However, an adapter cable will be required. Adapter cables can be
obtained by contacting SAII Customer Service.

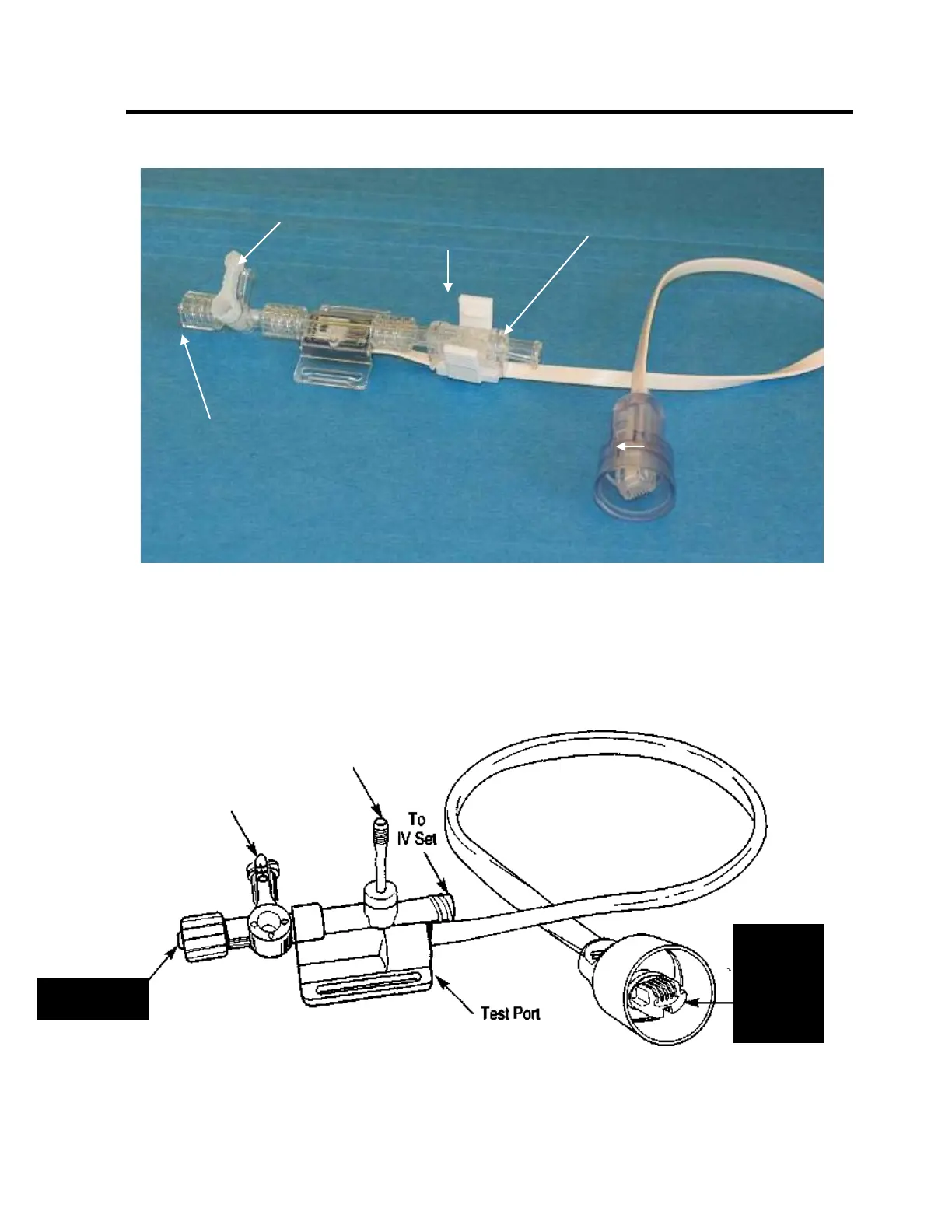

Abbott Transpac IV IBP transducer
animal cannula
three-way stopcock valve #1
connect to IV set or syringe
connect to IBP
connection on IBP
Module
animal cannula
adapter
cable and
then to IBP
connection
on IBP
Module
valve #1
valve #2
