SA Instruments 1030 - Water Bed Heater Module Input Output Connections

Water Bed Heater System
Revision C, August 2013
19-5

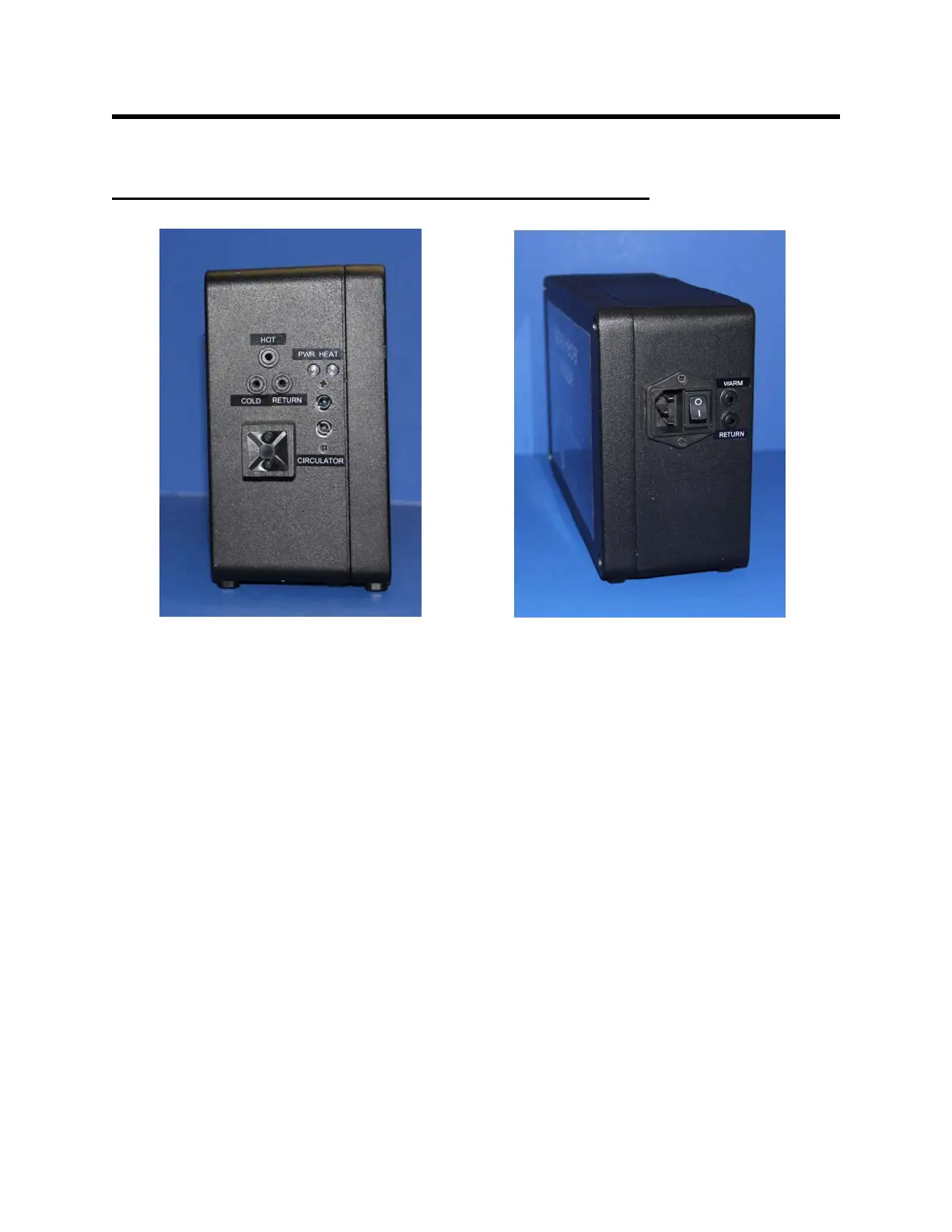

Water Bed Heater Module input output connections
Cold water end:
HOT input for hot water
COLD input for cold water
RETURN output for water from the bed
CIRCULATOR IN optical input from Circulator Module
CIRCULATOR OUT optical output to Circulator Module
Warm water end:
AC power input power for 100 – 120 VAC or 230 VAC
WARM output for water to the bed
RETURN input for water from the bed
