Chapter 5
Simulator
Revision B, January 2012
5-1
Overview

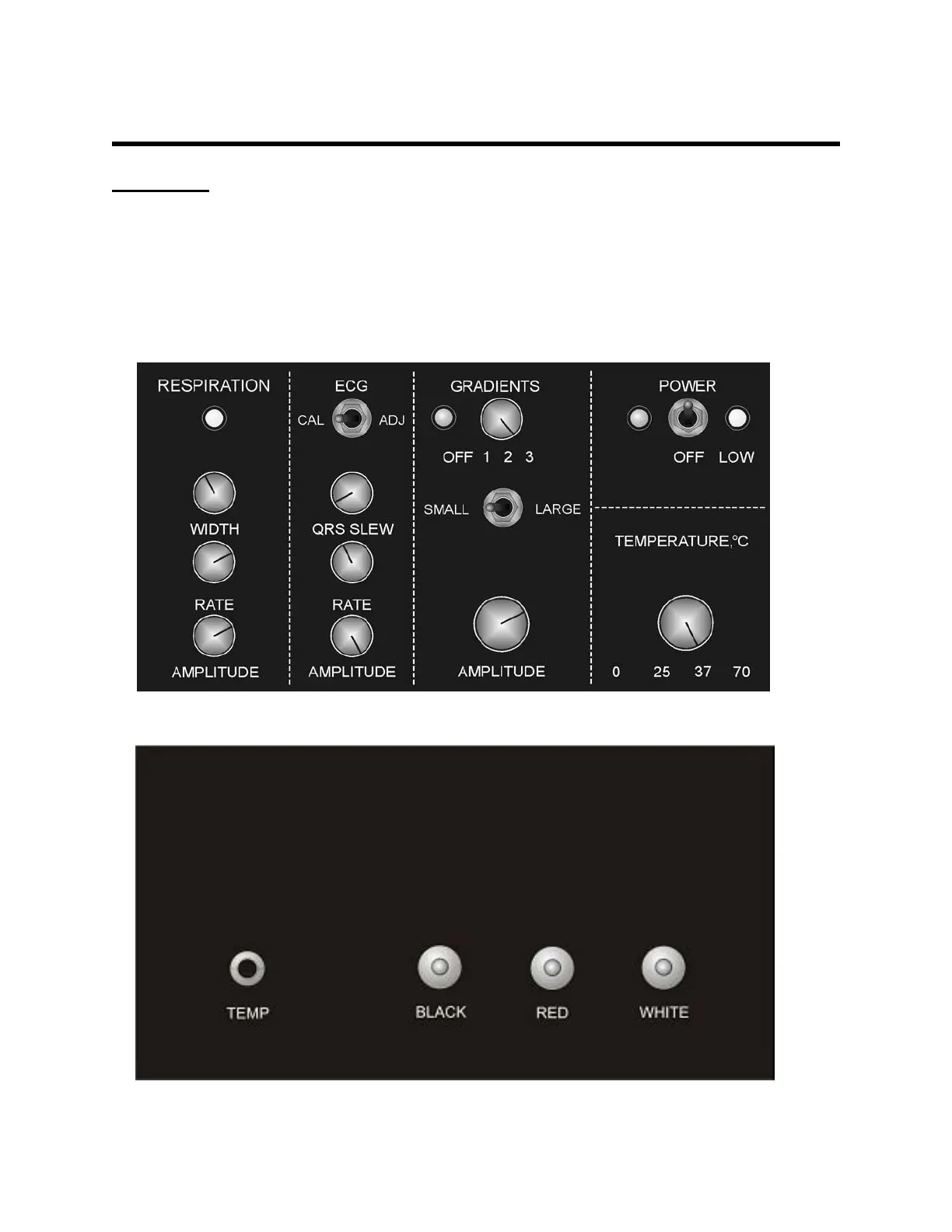

The simulator generates an ECG voltage waveform with respiration and gradient pulse
interference superimposed. Connection to the ERT Module is from the simulator rear
panel connections with simulator ECG leads to black, red and white labeled studs. The
simulator also provides a reference temperature impedance. Connection to the
ECG/Temperature module is from the rear panel with a simulator temperature cable to
the labeled phono jack.
