ERT Module
Revision C, August 2013
4-4
animal. When using a small whole body coil, it may be necessary to connect the leads
to both front legs or both rear legs keeping the lead wires out of the imaging coil.
E-resp™ without a cradle
It is possible to obtain adequate coupling of an ECG lead wire to the animal’s abdomen

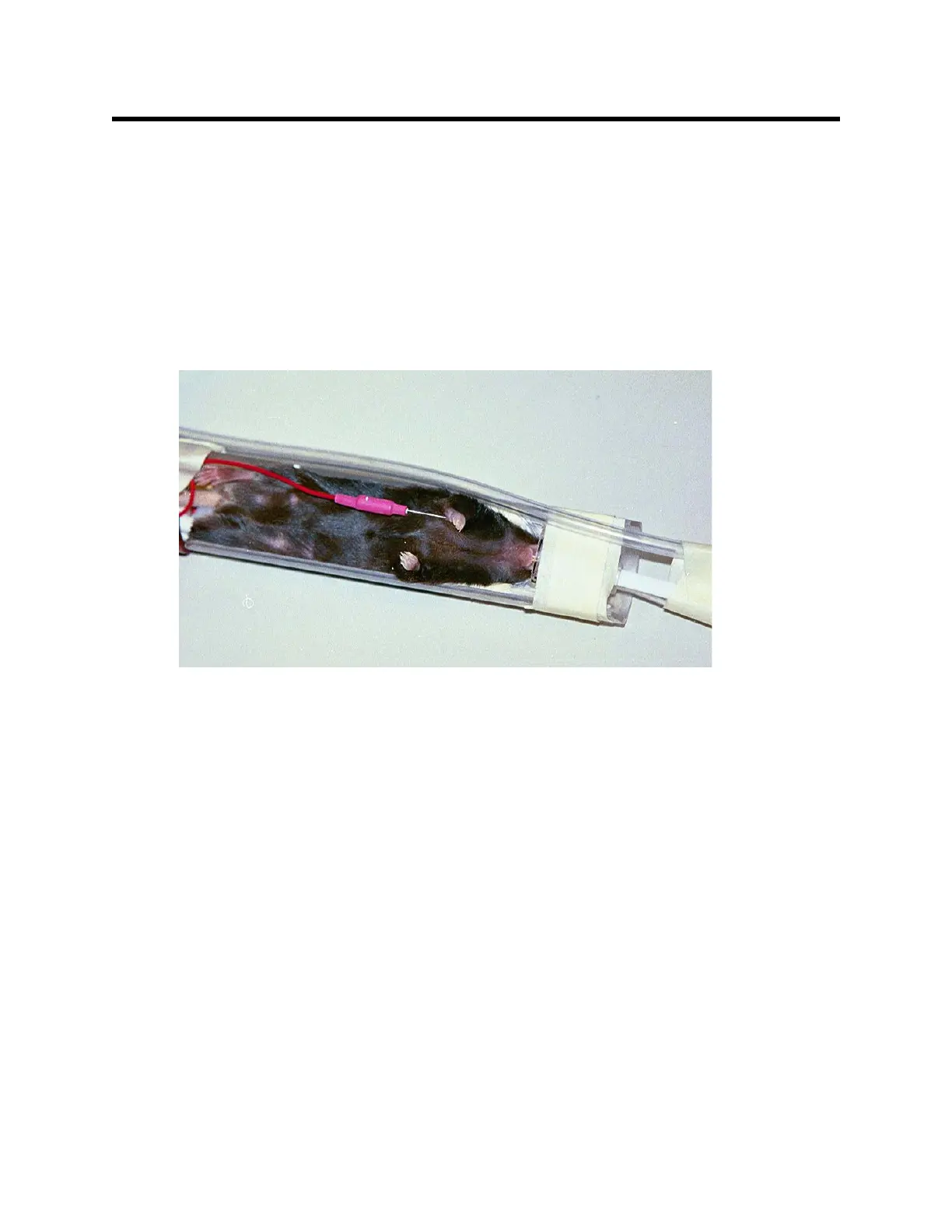

without the use of a cradle. The photo below shows a mouse without a cradle. In this
case, an E-resp signal of 0.5 mVpp was obtained on a 9.4 T system.
