2.7.2 R4 Transponder cable connections
Figure 4 shows how to connect the R4 Transponder data and power
cables. Note that TX on the R4 Transponder should be connected to
RX on interfacing equipment and RX on the R4 Transponder should
be connected to TX on interfacing equipment. Note that the PILOT
Plug on the R4 Display is interfaced to the R4 Transponder by
connecting TX to TX and RX to RX.
Note: Detailed wiring diagrams with cable colours are included with
the cable in the delivery package.

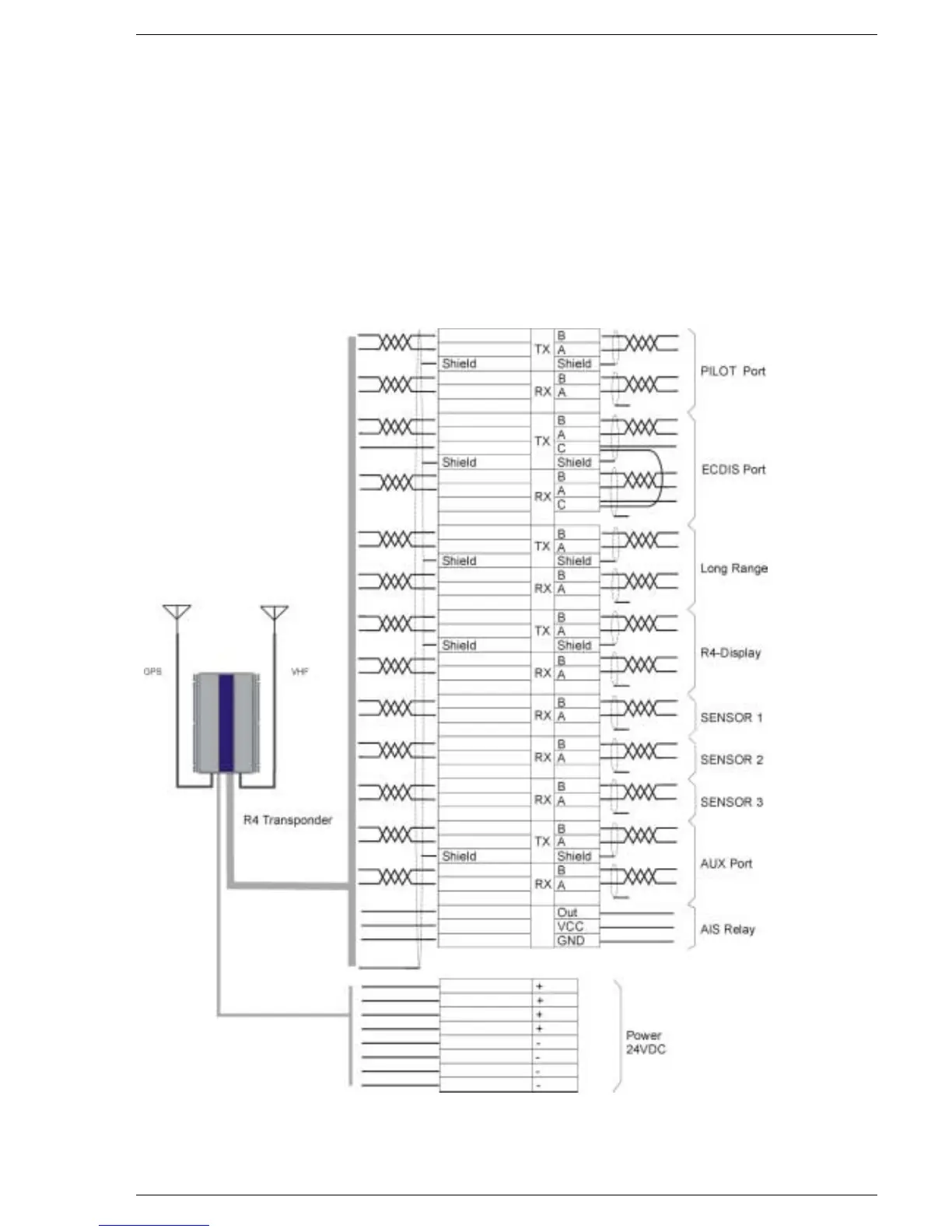

Figure 4 : Wiring diagram for R4 Transponder
