Mounting Page 5
Document id: 7000 108-011 A2
1.3 System overview
In Figure 1, an overview of the R4-AIS Shipborne Class A
Transponder system is shown. For details, see sections further on in
this Installation Manual.

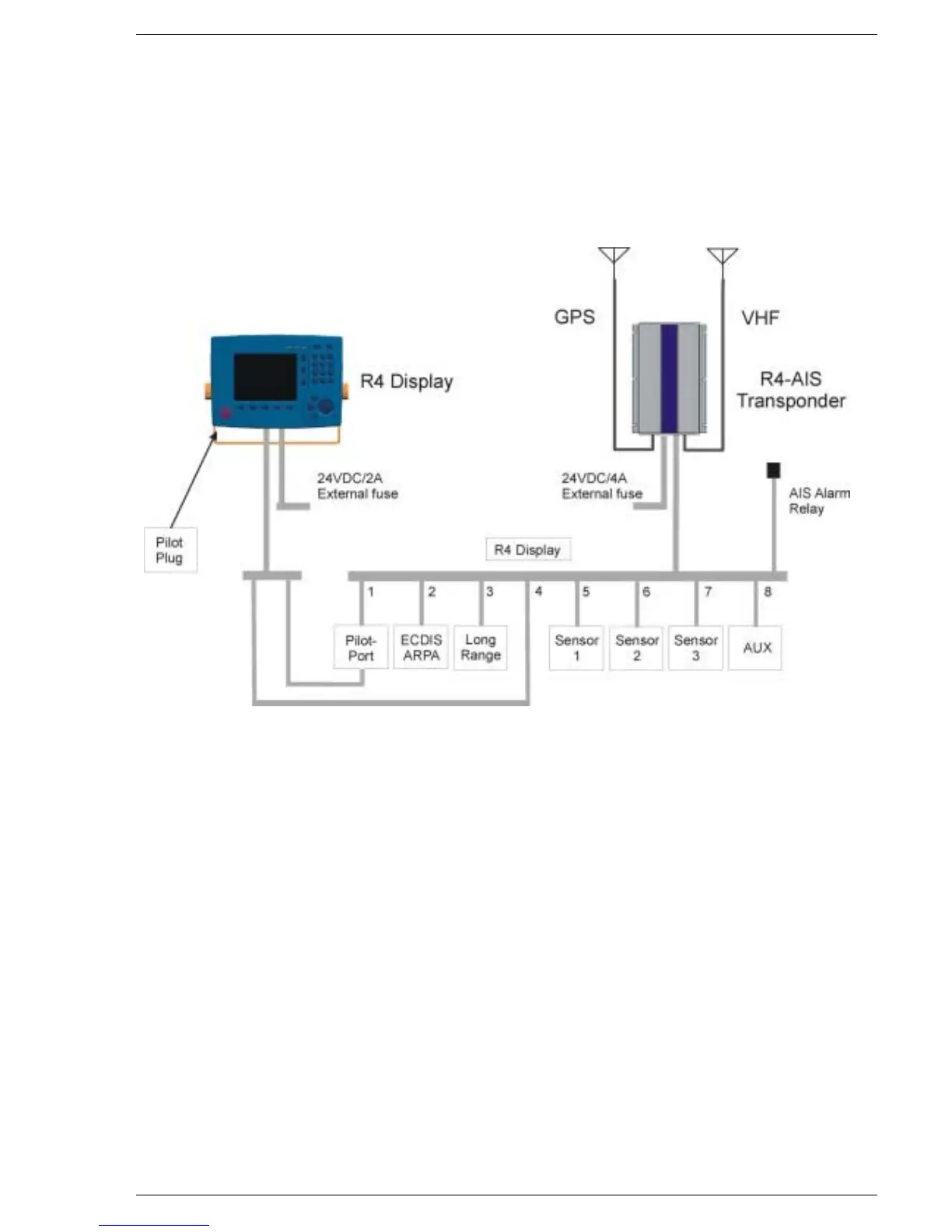

Figure 1: R4-AIS Transponder System overview
2 MOUNTING
When mounting the R4-AIS Transponder Class A System it is
recommended to follow the steps as described in this Installation
Manual. Details of the installation procedure are found in the coming
sections of the Installation Manual.
Recommended installation steps:
1: Mount the R4 Display
2: Mount the R4 Transponder
3: Mount the alarm relay unit
4: If the Pilot Plug on the R4 Display is not to be used, mount the
external Pilot Plug
5: Mount the VHF antenna
6: Mount the GPS antenna
7: Connect the wiring to the R4 Transponder and R4 Display
8: Power up the system
