Mounting Page 40
Document id: 7000 108-011 A2
2.16 Serial Communication Interfaces
2.16.1 Electrical Characteristics
2.16.1.1 Output Drive Capacity
Each talker output can have a maximum of 25 listeners drawing 2,0 mA.
2.16.1.2 Input Load
Input impedance for each listener input is 68 kΩ.
2.16.1.3 Termination
If needed, 1 kΩ line termination resistors can be placed in the terminal block on the
input ports.
2.16.1.4 Schematics
Each of the RS422 serial interfaces on the R4 Transponder fulfils the
requirements as specified in Ref[5] and Ref[6]. For details of the
schematics, see Figure 16.

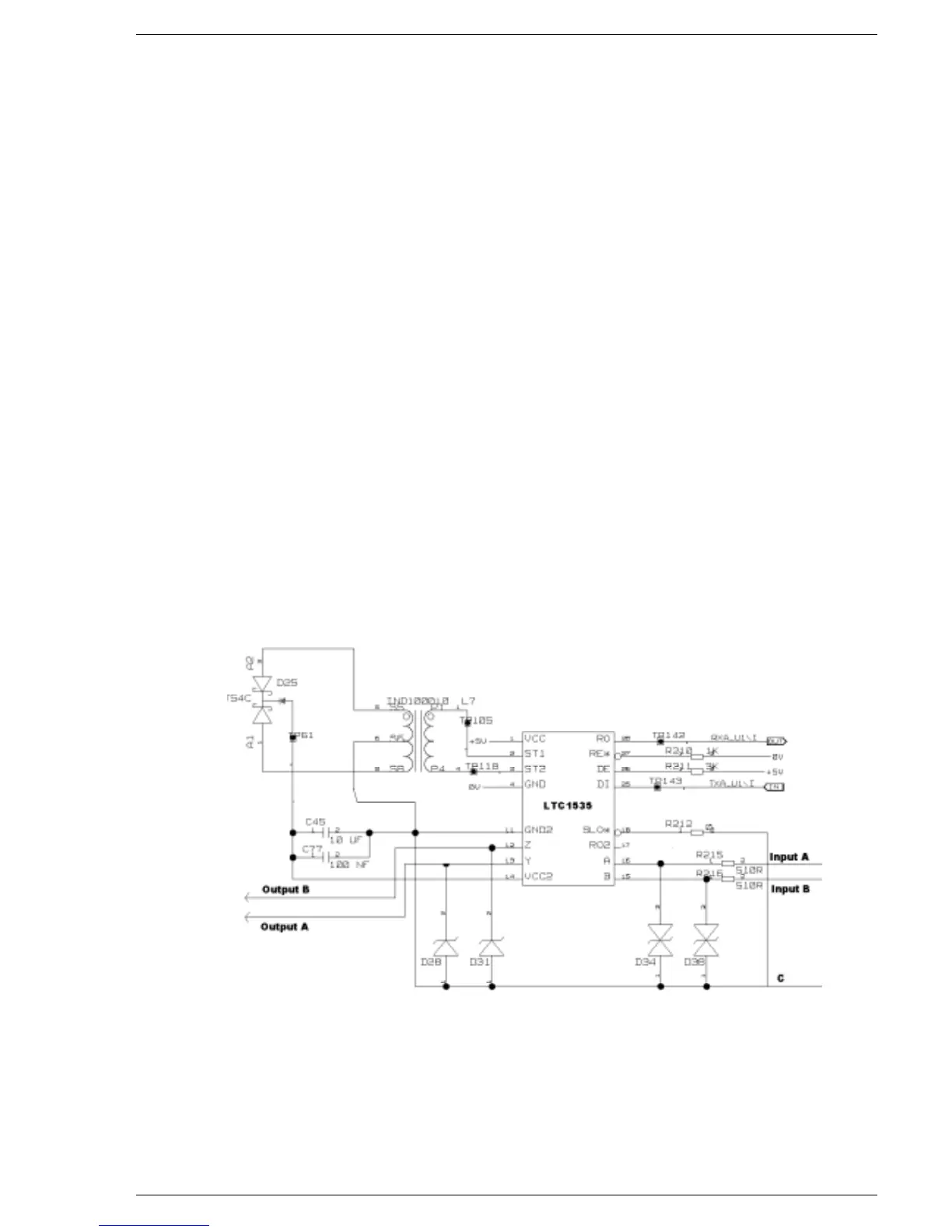

Figure 16: Serial interface schematics
2.16.2 ECDIS / Pilot systems interfaces
The two high-speed ECDIS/Pilot ports can be used to connect
systems like ECDIS, ECS, ARPA-radar or stand-alone AIS displays
and pilot carry aboard equipment.
