Saeco Int. Rev. 00 / Jul. 2008 Page 1 / 6
XSMALL 04 OPERATING LOGIC

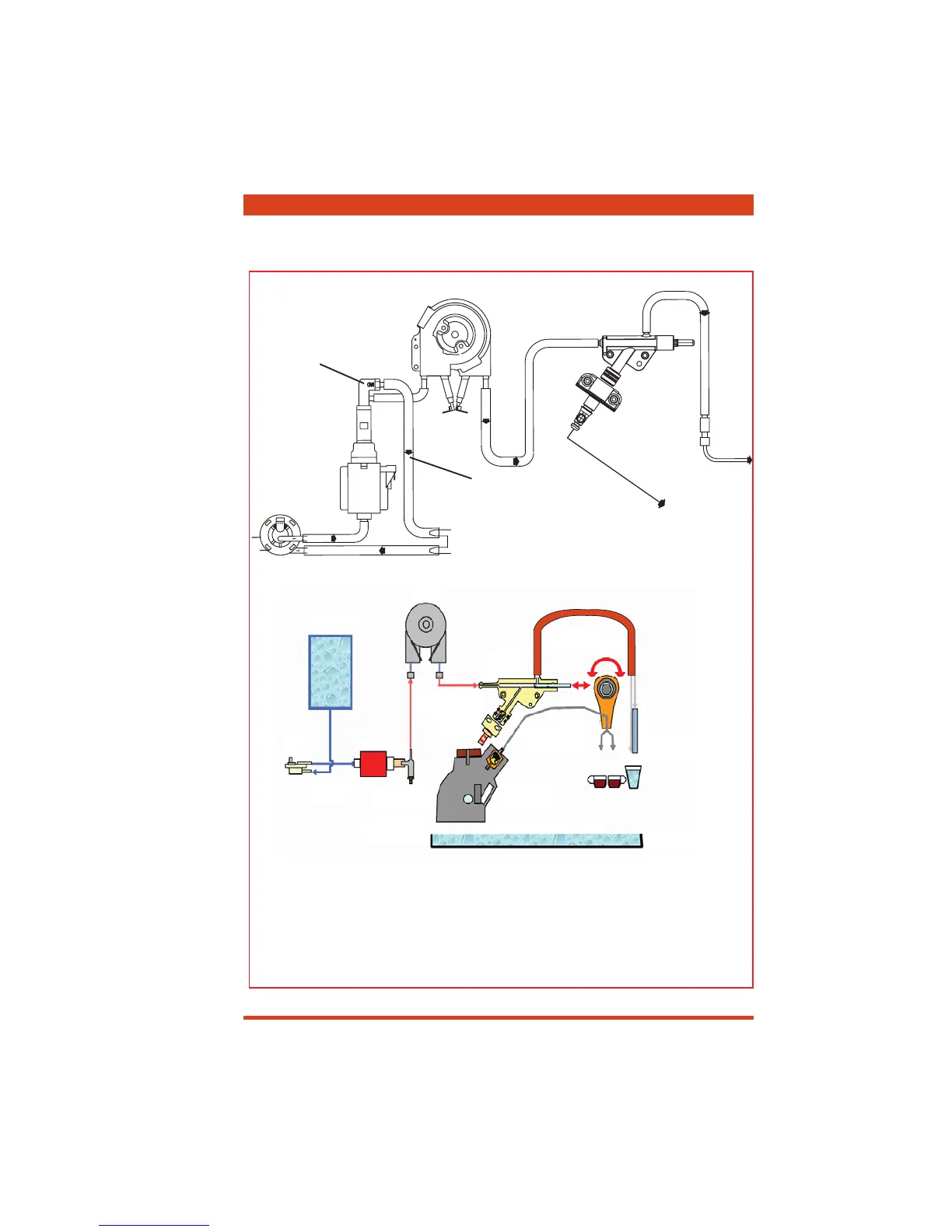

4.1. Water circuit
Boiler
Turbine
Brewing unit
Coffee
dispenser
Water collection tank
Pump
Compensation
valve
Water tank
Water / steam
Control
ringnut
Presblock
valve
Compensation valve 16/18 bar
Steam hose connection
Steam hose
Compensation valve water outlet
Turbine
1300 W boiler
To brewing unit
Water tank rapid
connection
Steam
valve
Pump
Traditional water system•
Turbine - Amount of coffee dispensed into the cup•
Reciprocating piston type pump (13 - 15 bar)•
Compensation valve (opening pressure 17 - 19 bar)•
Boiler - 1300 W•
Presblok valve - select coffee - hot water - steam •
