Saeco Xsmall Plus - Test Mode

Saeco Int. Rev. 00 / Jul. 2008 page 1 / 2

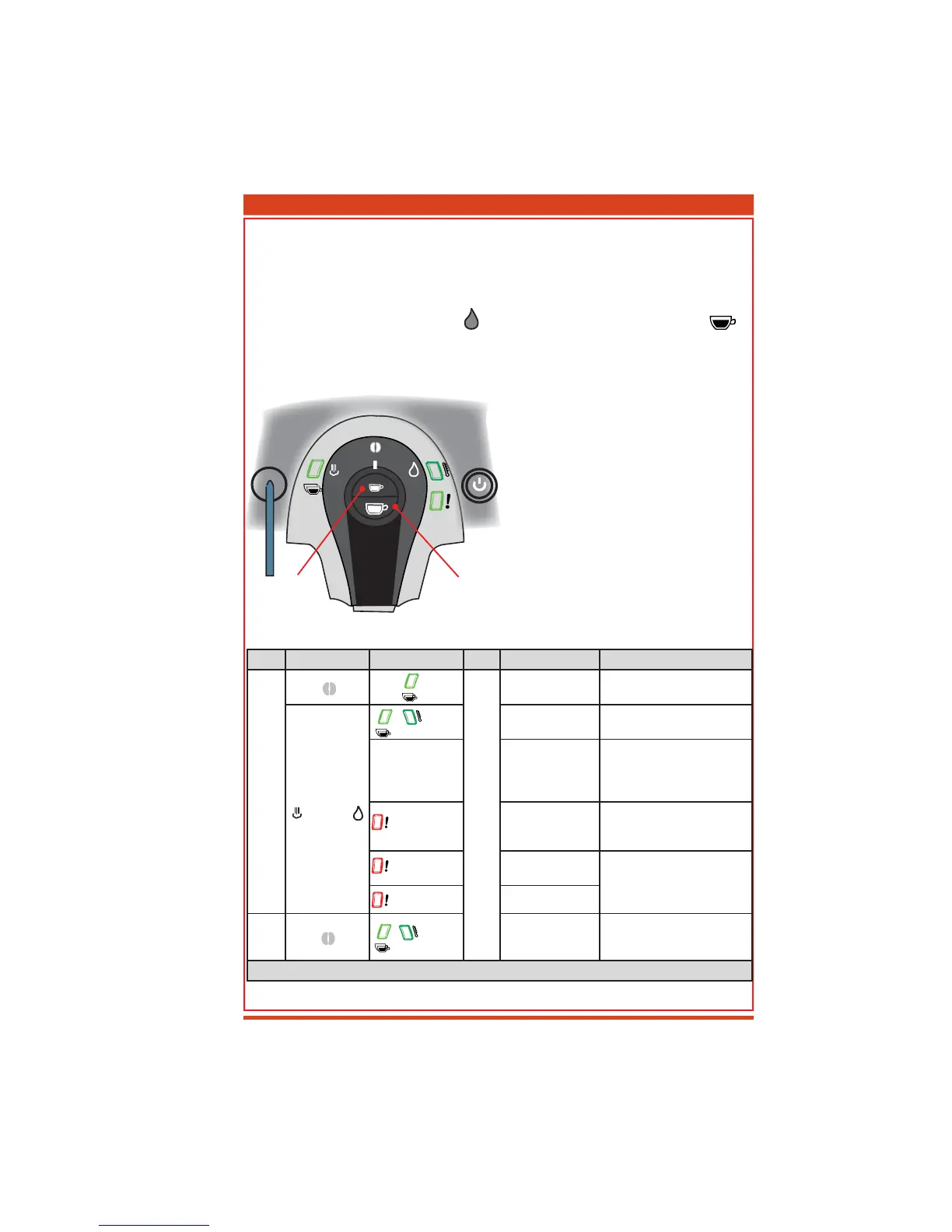

XSMALL 05 TEST MODE
5.1. Test mode
To enter TEST MODE, proceed as follows:
MAKE SURE THE MACHINE IS UNPLUGGED.
- Turn the selector to the water position
and press and hold the espresso coffee key
while you plug the machine in.
Confi rmation that the machine is in TEST MODE is signalled by LEDs 1, 2 and 3 lighting up in a
cyclical manner.
Release the espresso key; LEDs 1 and 2 will remain lit.
ON/OFF
coffee
espresso
21
3
lev. pos. selector LED key function notes
L0
ON
OR
ON
OFF
Microswitch:
dreg drawer unit
hatch
blinks once insert unit
When the unit is removed
and replaced, wait for at
least 5 sec.
blinks once
insert dreg
drawer
Always insert the compo-
nents in this sequence
blinks once close hatch
ON
check keys
By pressing espresso or
coffee
PRESS THE ON/OFF KEY TO ACCESS THE NEXT LEVEL UP
Operational check -
microswitches
There are four LEVELS of checking (to
move to a higher level, press the (on/off)
key
L0 MICROSWITCHES OPERATIONAL CHECK
(unit, dreg drawer, hatch)
L1 BREWING UNIT OPERATIONAL CHECK
(power consumption and stroke limit
microswitch)
L2 PUMP AND TURBINE OPERATIONAL
CHECK
L3 BOILER AND COFFEE GRINDER
OPERATIONAL CHECK
