Saeco Xsmall Plus - Disassembling the Boiler; Disassembling the Valve

Saeco Int. Rev. 00 / Jul. 2008 Page 5 / 9
XSMALL 07 DISASSEMBLY

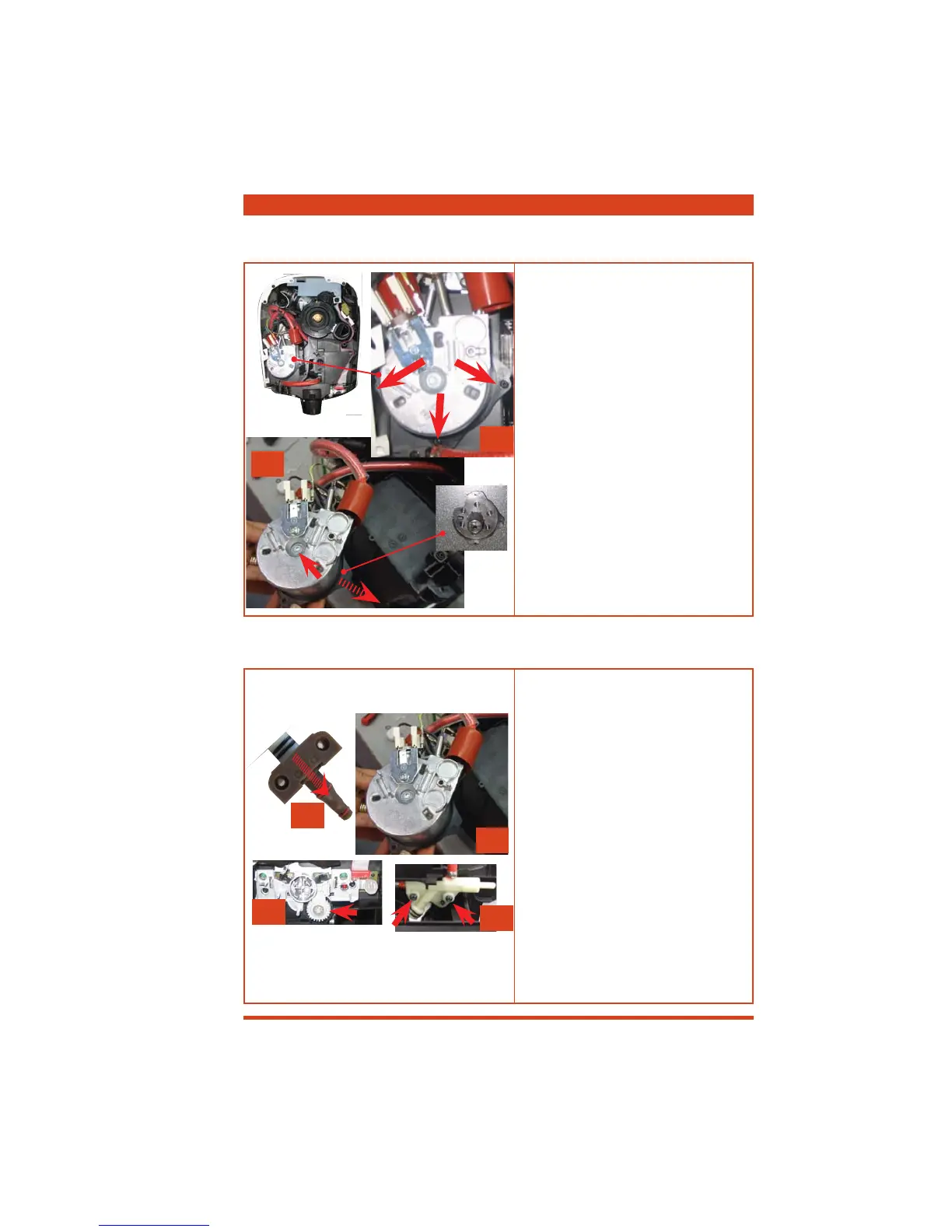

1) Remove the boiler pin.
2) Remove the boiler.
3) Remove the gear.
4) Loosen the screws shown.
7.6. Disassembling the boiler
7.7. Disassembling the valve
1) Loosen the screws shown.
2) Loosen the screw and remove the plastic
support.
Disconnect the hoses and the connections.
1
2
1
2
2
3
4
