Page 6 / 9 Rev. 00 / Jul. 2008 Saeco Int.
07 DISASSEMBLY XSMALL

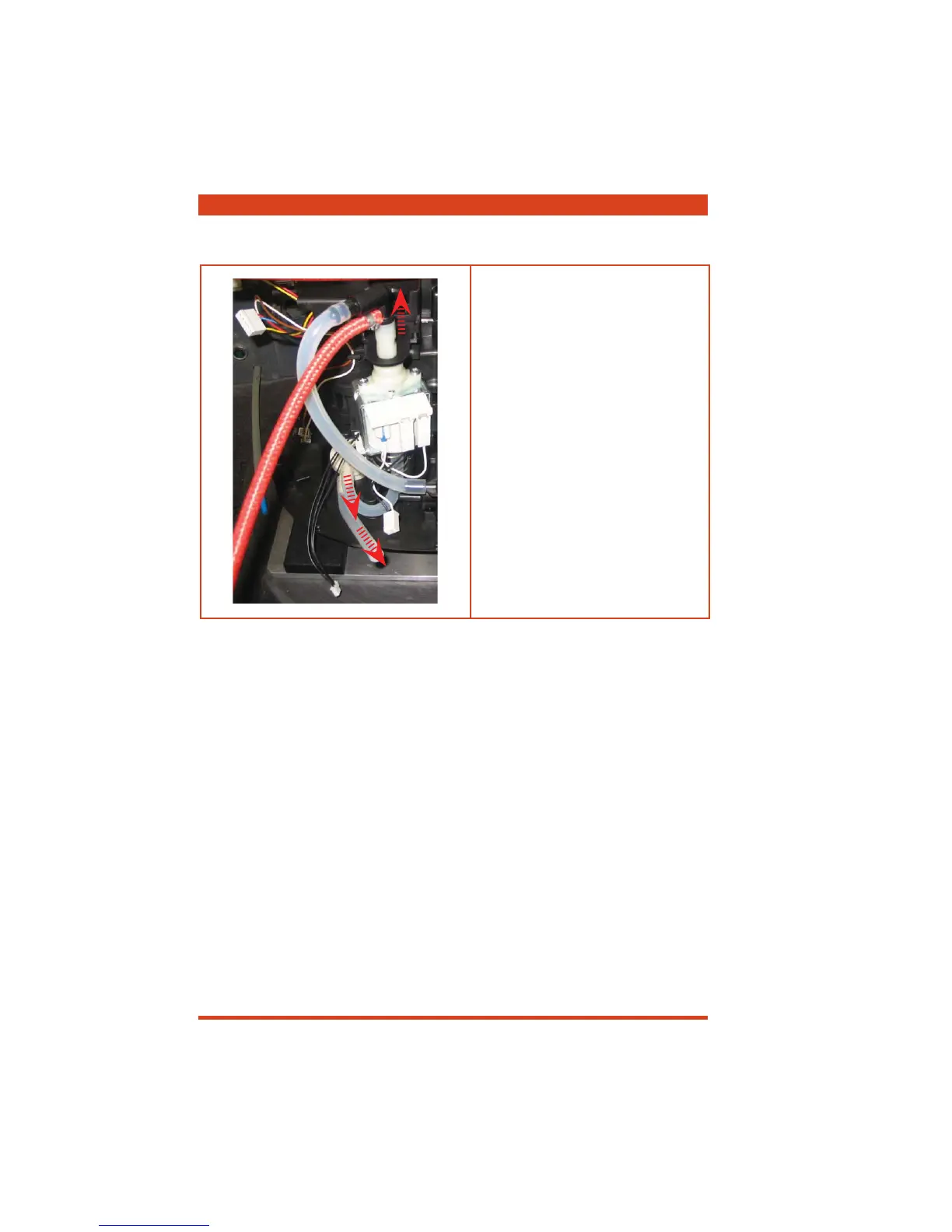

7.8. Disassembling the pump and turbine
Slide out the support as shown.
Remove connection
1, slide out the
silicone hoses.
To prevent annoying vibrations when
reassembling the pump, take extra care
when positioning spring 2.
At this point, the turbine may also be
removed from its recess.
2
1
