Saeco Xsmall Plus - Disassembling the Electronics

Page 2 / 9 Rev. 00 / Jul. 2008 Saeco Int.

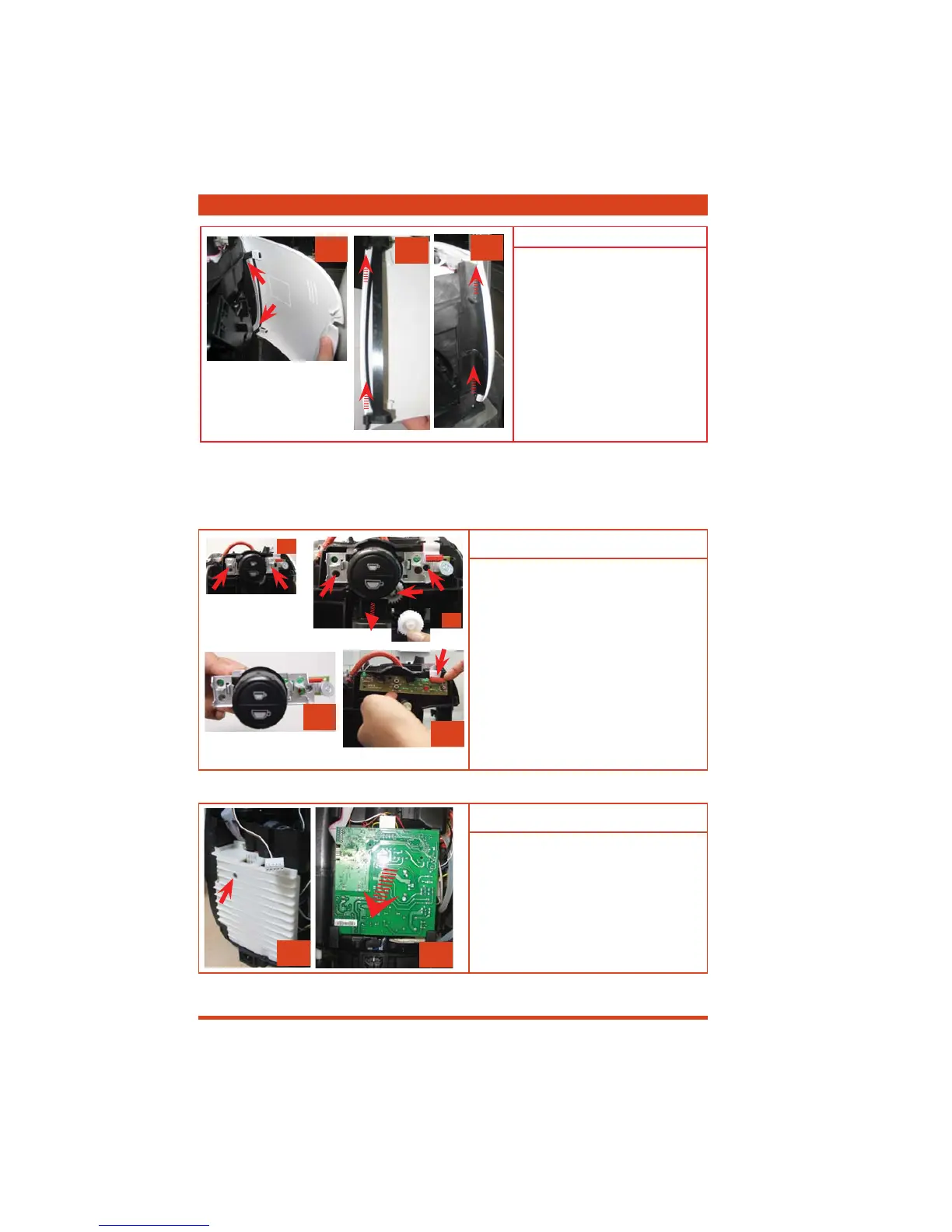

07 DISASSEMBLY XSMALL
Disassembling the hatch
1) Detach the hatch by pressing
the fastenings.
2) Lift the fastenings shown.
3) Slot for pins.
1
2
3
Disassembling the power P.C.B.
1) Loosen the screw shown and remove
the P.C.B. protection.
2) Slide out the P.C.B., removing all
connections.
7.2. Disassembling the electronics
Disassembling the CPU
1) Remove the RHS and LHS light guide.
2) Loosen the screws shown, detach the
dispenser, then remove the circlip and gear
as illustrated in the photograph.
3) Slide out the control keypad.
4) Remove the fl at cable shown and slide
out the P.C.B.
4
2
1
2
3
1
