Saeco Int. Rev. 00 / Jul. 2008 Page 1 / 9
XSMALL 07 DISASSEMBLY

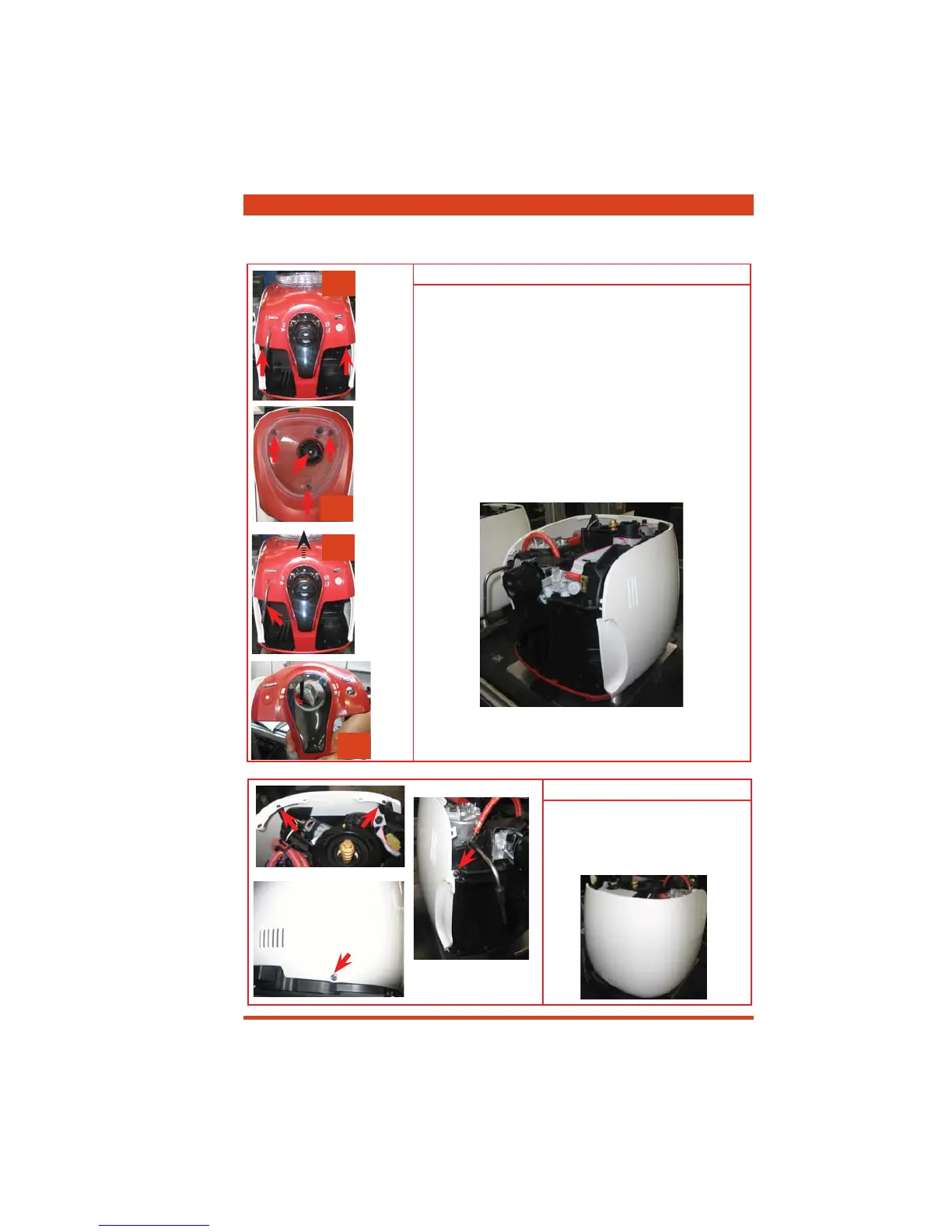

7.1. Disassembling the outer elements
Disassembling the Top cover
1/2) Remove the dreg drawer, water tank, mushroom fi nger
protection device on the coffee container lid and coffee
container, then loosen the screws shown.
3/4) Slide out the steam hose protection, lift the cover at
the rear by pressing down gently on the cooling vents to help
detach the anchoring tabs, then pull it away from the steam
hose, taking care not to scratch it.
1
3
4
Disassembling the side cover
Loosen the screws shown and slide
out the side cover; be careful of the
protrusions (A) on the base.
2
A
A
A
