Saeco Xsmall Plus - Control Ringnut and Valve

Page 2 / 6 Rev. 00 / Jul. 2008 Saeco Int.
04 OPERATING LOGIC XSMALL

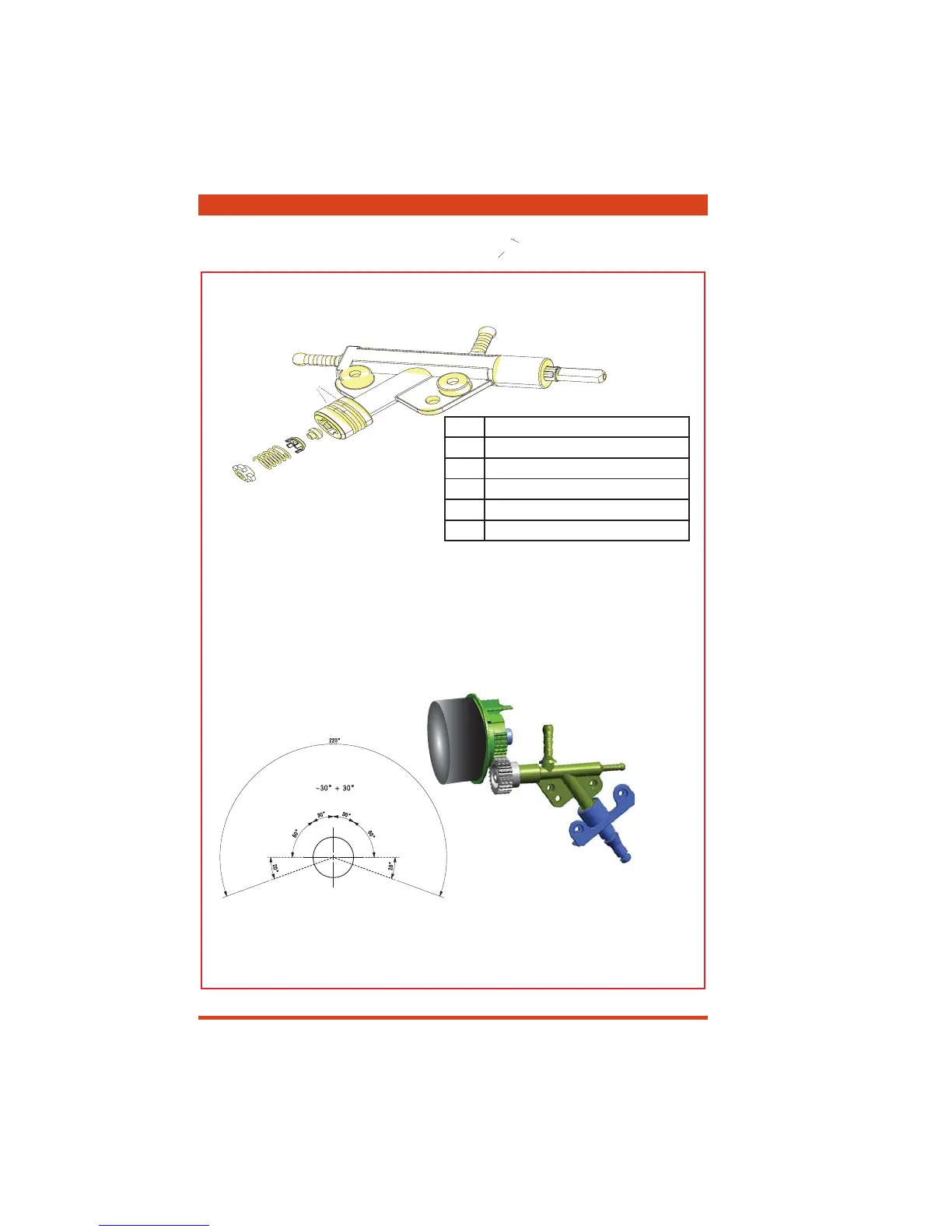

4.2. Control ringnut and valve
No. DESCRIPTION
1 Mushroom valve cap
2 Spring for mushroom valve
3 Mushroom valve support
4 Mushroom valve
5 Sealing OR
1
2
3
4
5
CLOSED for
COFFEE
When dispensing coffee the mushroom valve opens at 4 bar +/- 0.5
Manual opening when dispensing water
Manual opening when dispensing steam
OPEN -
STEAM
OPEN -
WATER
TOTAL STROKE
EXTRA
STROKE
EXTRA
STROKE
VALVE OPENING
STROKE
VALVE OPENING
STROKE
