XSMALL 07 DISASSEMBLY

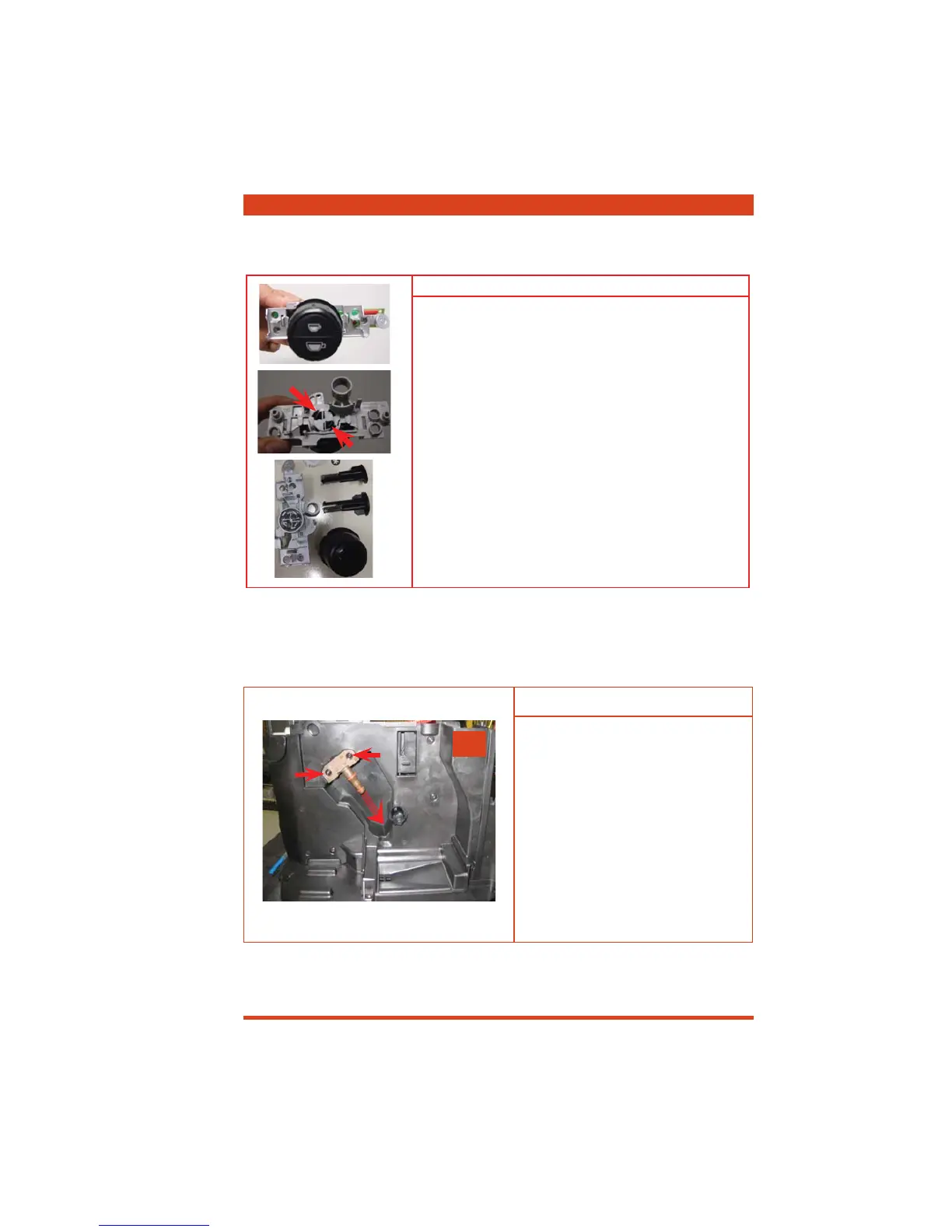

Disassembling the boiler pin
1) Loosen the screws shown and remove
the boiler pin.
7.4. Disassembling the boiler pin
7.3. Disassembling the control knob and coffee keys
Disassembling the Top cover
To remove the coffee keys from the control keypad, detach
them from the anchoring device on the back of it and take
them out.
To remove the knob, simply slide it out of its position.
1
