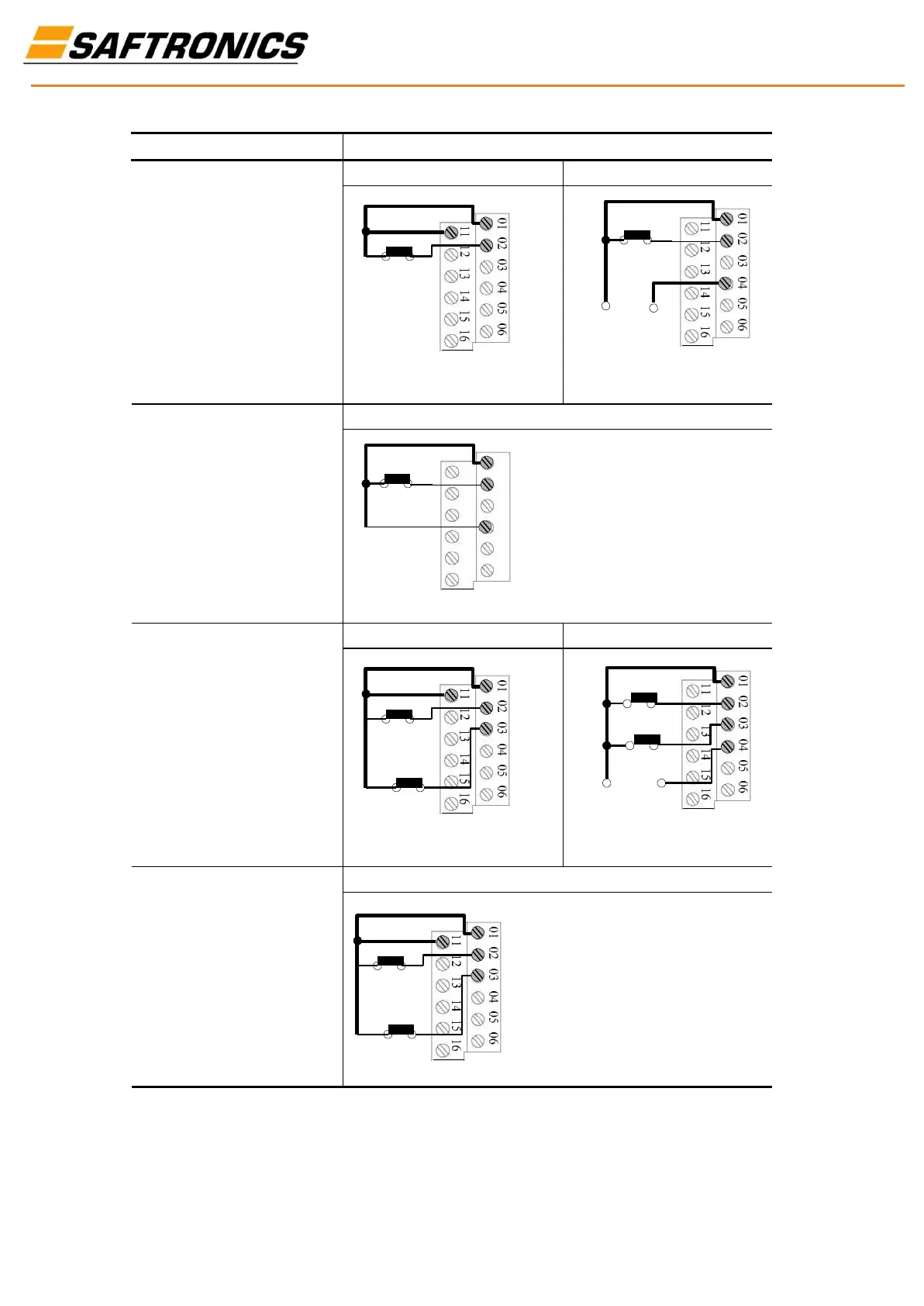

Input Connection Example
2 Wire SRC Control -
Non-Reversing
P106 [Start Source] = 2, 3 or 4
Input must be active for the drive to run.
When input is opened, the drive will stop
as specified by P107 [Stop Mode].
If desired, a User Supplied 24V DC power
source can be used. Refer to the “External
Supply (SRC)” example.
Internal Supply (SRC) External Supply (SRC)
Stop-RUN
Stop-Run
+24V
Common
Each digital input draws 6mA
2 Wire SNK Control -
Non-Reversing
Internal Supply (SNK)
Stop-Run
2 Wire SRC Control - Run
FWD/Run REV
P106 [Start Source] = 2, 3 or 4
Input must be active for the drive to run.
Internal Supply (SRC) External Supply (SRC)
Stop-Run
When input is opened, the drive will stop
as specified by P107 [Stop Mode].
If both Run Forward and Run Reverse
inputs are closed at the same time, an
undetermined state could occur.
Stop-Run
Forward
Stop-Run
Reverse
Forward
Stop-Run
Reverse
+24V
Common
Each digital input draws 6mA
2 Wire SNK Control - Run
FWD/Run REV
Internal Supply (SNK)
Stop-Run
Forward
Stop-Run
Reverse
