Saftronics HPVFE - Control Signal Status Display; Control Source Display (d012); Control Input Status Display (d013)

Display Group (continued)
Sailer Manual HPVFE
36

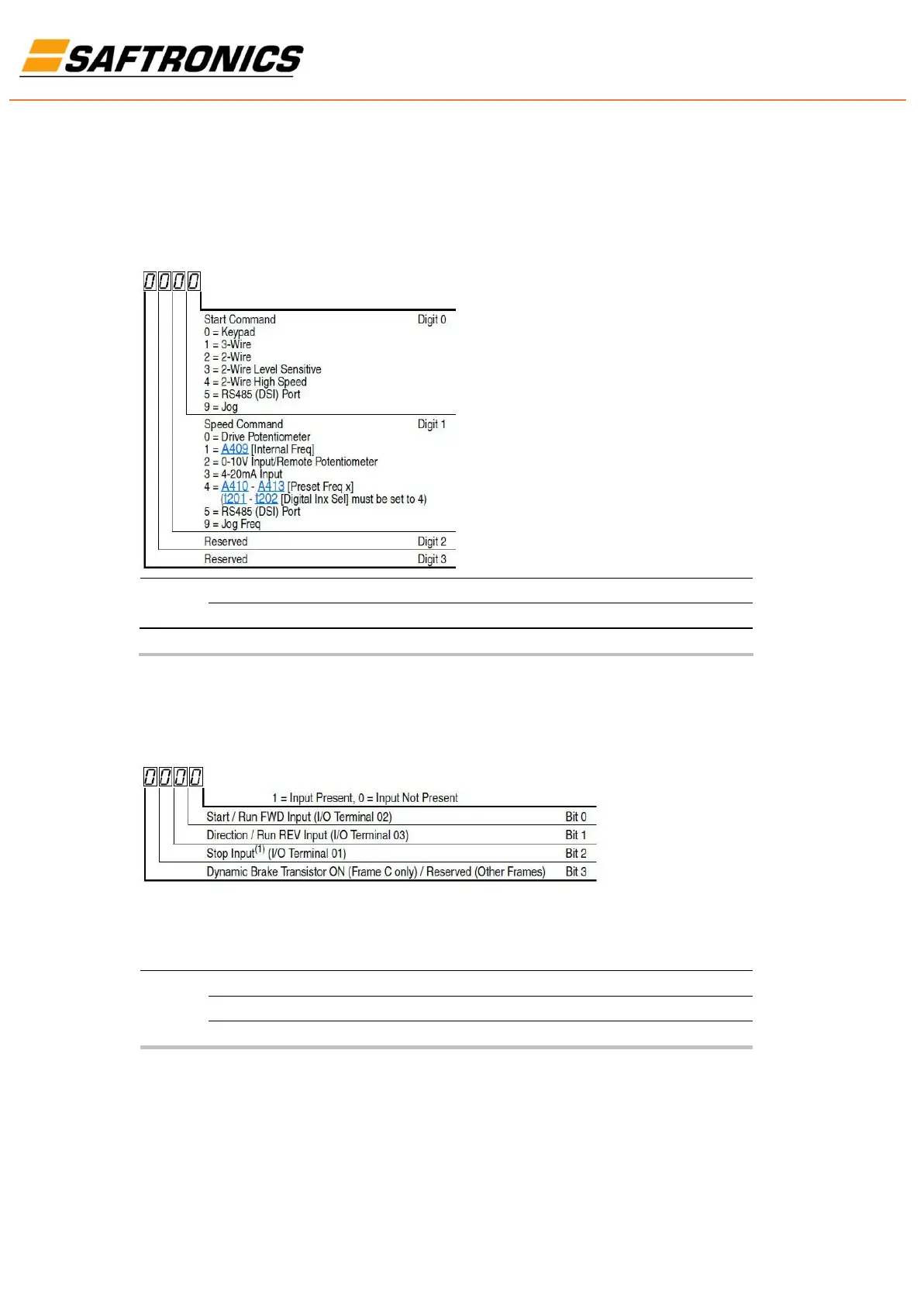

d012 [Control Source] Related Parameter(s): P106, P108, t201, t202
Displays the active source of the Start Command and Speed Command which are normally defined by the settings of P106 [Start Source] and
P108 [Speed Reference] but may be overridden by digital inputs. Refer to the flowcharts on pages 1-19 and 1-20 for details.
Values
Default Read Only
Min/Max: 0/9
Display: 1
d013 [Control In Status] Related Parameter(s): d002, P104, P105
Status of the control terminal block control inputs.
Important: Actual control commands may come from a source other than the control terminal block.
(1)The stop input must be present in order to start the drive.
When this bit is a 1 the drive can be started.
When this bit is a 0 the drive will stop.
Values
Default Read Only
Min/Max: 0/1
Display: 1
