HYBRID SOLAR INVERTER INSTRUCTION MANUAL
3.2
Mounting
Procedure

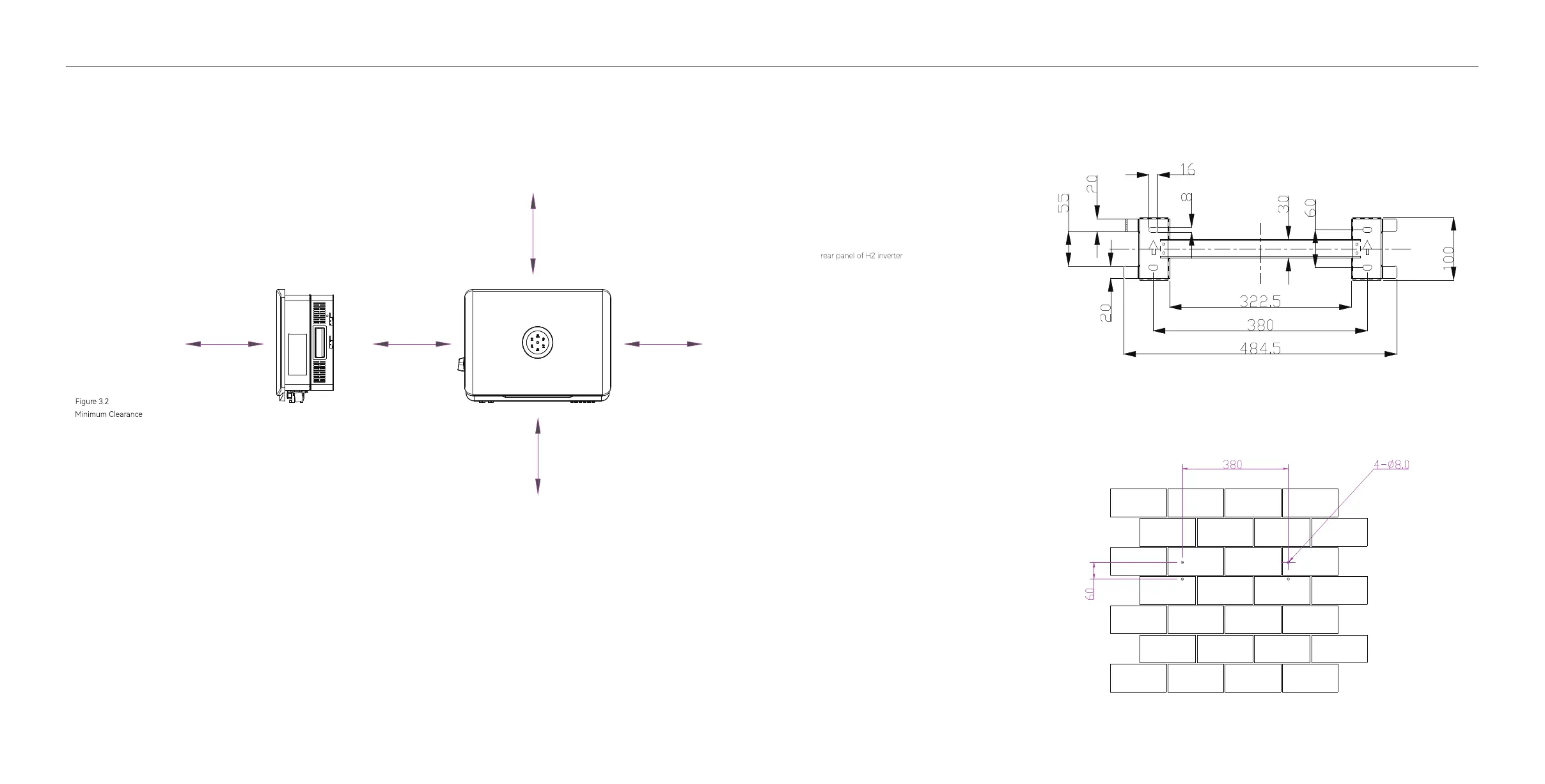

The mounting position should be marked as shown in Figure3.3.
2.Drill Holes and Place the Expansion Tubes
Drill 4 holes in the wall (in conformity with position marked in Figure 3.4, and then
place expansion tubes in the holes using a rubber mallet.
(4) When mounting the inveer, please consider the solidness of wall for inveer, including
accessories. Please ensure the Rear Panel mount tightly.
To make sure the installation spot is suitably ventilated, if multiple SAJ hybrid solar inveers are
Figure 3.4
Drill holes dimensions of H2 inveer
50CM
50CM
50CM
50CM
30CM
11
12
Figure3.3 Dimensions of
1.Mark the Positions of the Drill Holes of the Rear Panel
are installed same area.
Installation Environment Requirements
•The installation environment must be free of inammable or explosive materials.
• Install the device away from heat source.
• Do not install the device at a place where the temperature changes extremely.
•Keep the device away from children.
•Do not install the device at daily working or living arears, including but not limited to the following areas:
bedroom, lounge, living room, study, toilet, bathroom, theater and attic.
•When installing the device at the garage, please keep it away from drive way.
•Keep the device from water sources such as taps, sewer pipes and sprinklers to prevent water seepage.
•The product is to be installed in a high trac area where the fault is likely to be seen.
Note: When installing outdoors, the height of the device from the ground should be considered to
prevent the device from soaking in water. The specic height is determined by the site environment.
