SAJ H2 Series Instruction Manual

Caution：For safety operation and regulation compliance, it is requested to install
4.10
a breaker (63A) between grid and inveer.
Connection
Diagram
4.11
External AC Circuit
Breaker and Residual

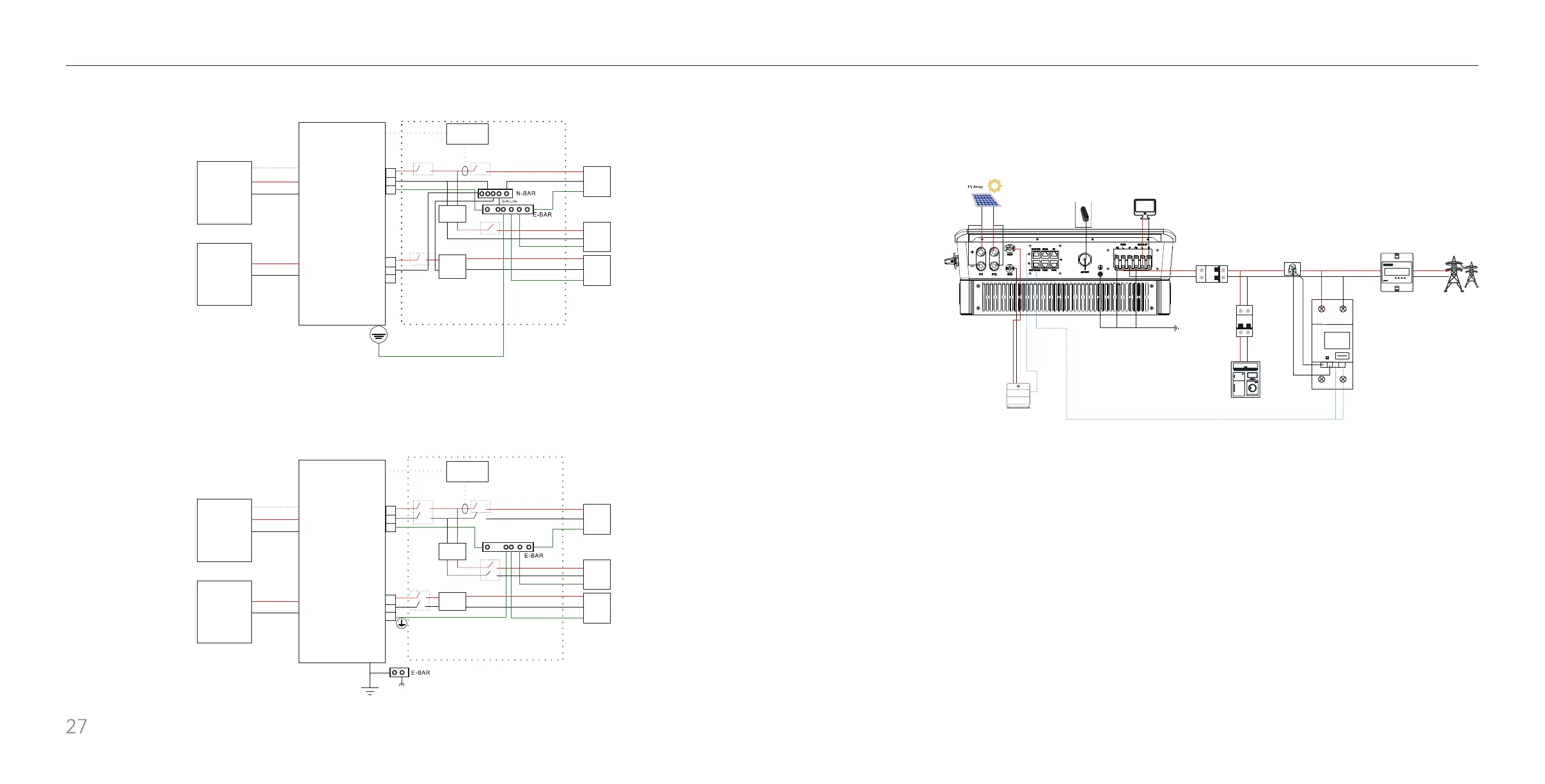

Figure 4.17
Current Device
H2 Connection diagram
HYBRID SOLAR INVERTER INSTRUCTION MANUAL
Please install a circuit breaker to ensure the inveer is able to disconnect
from grid safely. The inveer is integrated with a RCMU, however, an
external RCD is needed to protect the system from tripping, either type A
or type B RCD are compatible with the inveer.
The integrated leakage current detector of inveer is able to detect the
real time external current leakage. When a leakage current detected
exceeds the limitation, the inveer will be disconnected from grid quickly,
if an external residual current device is connected, the action current
should be 30mA or higher.
28
Note：The backup PE line and eahing bar must be grounded properly. Otherwise, backup
function may be inactive during blackout.
Battery
On-grid Load
AC Breaker
1 2
562425
3 4
A+
B-
L N
IA White( )
IA Blue( )
GridPower Meter
Back-up Load
Rs485
Mete
AC Breaker
BMS
BAT
L
N
PE
L
N
PE
AC
BACKUP
GRID
RCD
Normal
Loads
RCD
Backup
Loads
Smart
meter
CT
L
N
PE
L
N
PE
L
N
PE
Distribution box
H2 Inverter
BMS
PV
BAT
H2 Inverter
L
N
PE
L
N
PE
AC
BACKUP
GRID
RCD
Normal
Loads
RCD
Backup
Loads
Smart
meter
CT
L
N
PE
L
N
PE
L
N
PE
Distribution box
BMS
PV
The system connection for grid system without special requirements is as below.
