INTRODUCTION

1.12 Revised 10/02/2012

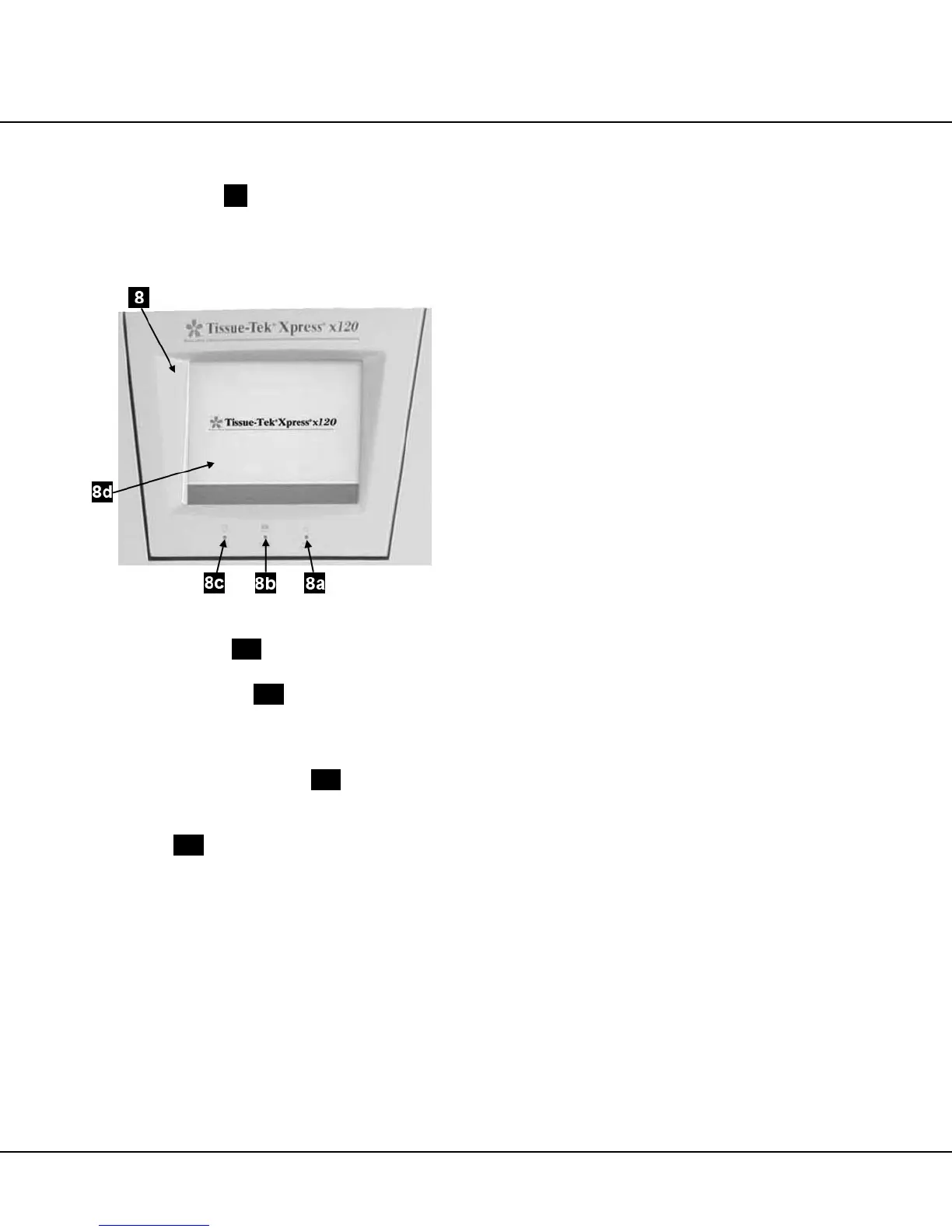

Control Panel (Figure 1-O)

The Control Panel

..8

.. provides the operating controls

and indicators necessary to operate the instrument,

monitor system operation, configure system settings, and

view status and historical reports.

Figure 1-O

Main Power Indicator ..

— lights when main power is

applied to the instrument.

System Status Indicator ..

— provides an indication

of the current status of the system. Flashes when the

WARMING UP SYSTEM mode is in process. Lights

steady on when the system is ready for processing.

Auto Start / Shutdown Indicator ..

— indicates the

Auto Start/Shutdown function is activated (see “Section 3,

Setting Ready/Shutdown Times” on page 3.7).

LCD Display ..

— 800 X 600 pixel touch screen LCD

display. The instrument sounds a tone whenever a key,

button or text field is actuated (with the exception of the

10-key keypad and alpha keyboard). When in processing

mode, provides the data entry and display screens to login

to the system, prepare a basket for processing, and

monitor processing status (see “Section 4, Operating

Instructions” for details). When in utility mode, provides

the data entry and display screens to manage instrument

users, configure system settings, and view statistical data

(see “Section 3, Customization of Settings” and “Section

4, Operating Instructions” for details).

Specifications

Models Covered By This Manual:

Product

Code

Name/Description

7720 Tissue-Tek

Xpress

x120 Continuous Rapid

Tissue Processor (200 VAC) (USA)

7721 Tissue-Tek

Xpress

x120

Continuous Rapid

Tissue Processor (200 VAC) (Asia)

7722 Tissue-Tek

Xpress

x120 Continuous Rapid

Tissue Processor (230 VAC) (Europe)

Power Requirements:

Model 7720 – 200VAC ±10%, 50/60Hz, single-phase,

20 amps

Model 7721 – 200VAC ±10%, 50/60Hz, single-phase,

20 amps

Model 7722 – 230VAC ±10%, 50/60Hz, single-phase,

20 amps

Power Ratings:

Model 7720 – 200VAC, 50/60Hz, single-phase, 15 amps

Model 7721 – 200VAC, 50/60Hz, single-phase, 15 amps

Model 7722 – 230VAC, 50/60Hz, single-phase, 13 amps

Noise Level: Less than 65 db

Hazardous Fume Control

Complies with the following requirements for acetone as

fume emissions in laboratories:

1,000 ppm, Occupational Safety and Health Admin-

istration (USA); 750 ppm, Industrial Safety and Health

Law (Japan); 500 ppm, Maximale Arbeitsplatz-

Konzentration (Europe)

Environmental Requirements:

Operating:

Temperature Range: +15°C to +35°C

Relative Humidity: 30% to 85%, non-condensing

Relative Atmospheric Pressure: 70 to 106 kPa (525 to

795 mm Hg)

Pollution Degree: 2
