4 Disassembly and Assembly
4-4 SAM4S ER-350 SERIES
4-1 Disassembling the Case Upper Block
4-1-2 ERP-200N Printer Disassembling
R
E(2.5)
Poly Bearing-2
Shaft Head Guid
e
Ad.Lever
Shaft Carriage
A
C

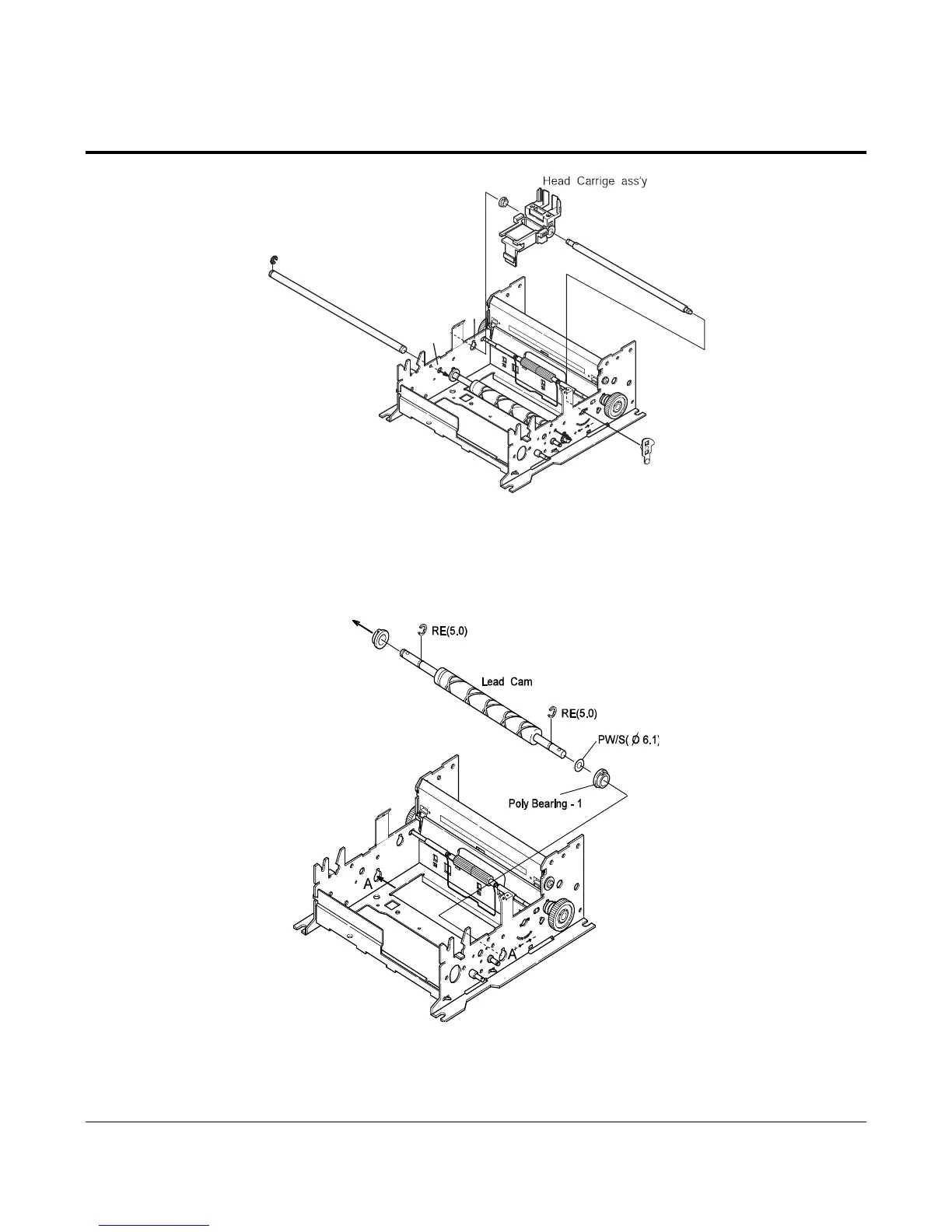

Figure 4-7. Separating Head Feed Block-1
16. Disassemble the E-Ring (R2.5) and remove the Shaft Carriage through the hole “C” in the Frame Assembly
(Figure4-7).
17. Remove the Poly Bearing-2 in hole “A” in the shaft head Guide(Figure4-7)
18. Move the Shaft Head Guide through the Head Carriage Assembly the hole “A” in the Frame Assembly(Figure4-7)
Figure 4-8, Separating Lead Cam
19. After removing the Lead Cam from the Frame Assembly, remove the Poly Bearing-1.(Figure4-8)
20. Remove the PW and RE(5.0) 2PCS from the Lead Cam. (Figure4-8)
