SAMES KREMLIN PPH 308 - Page 11

Index revision : C - November 2017 11 7030

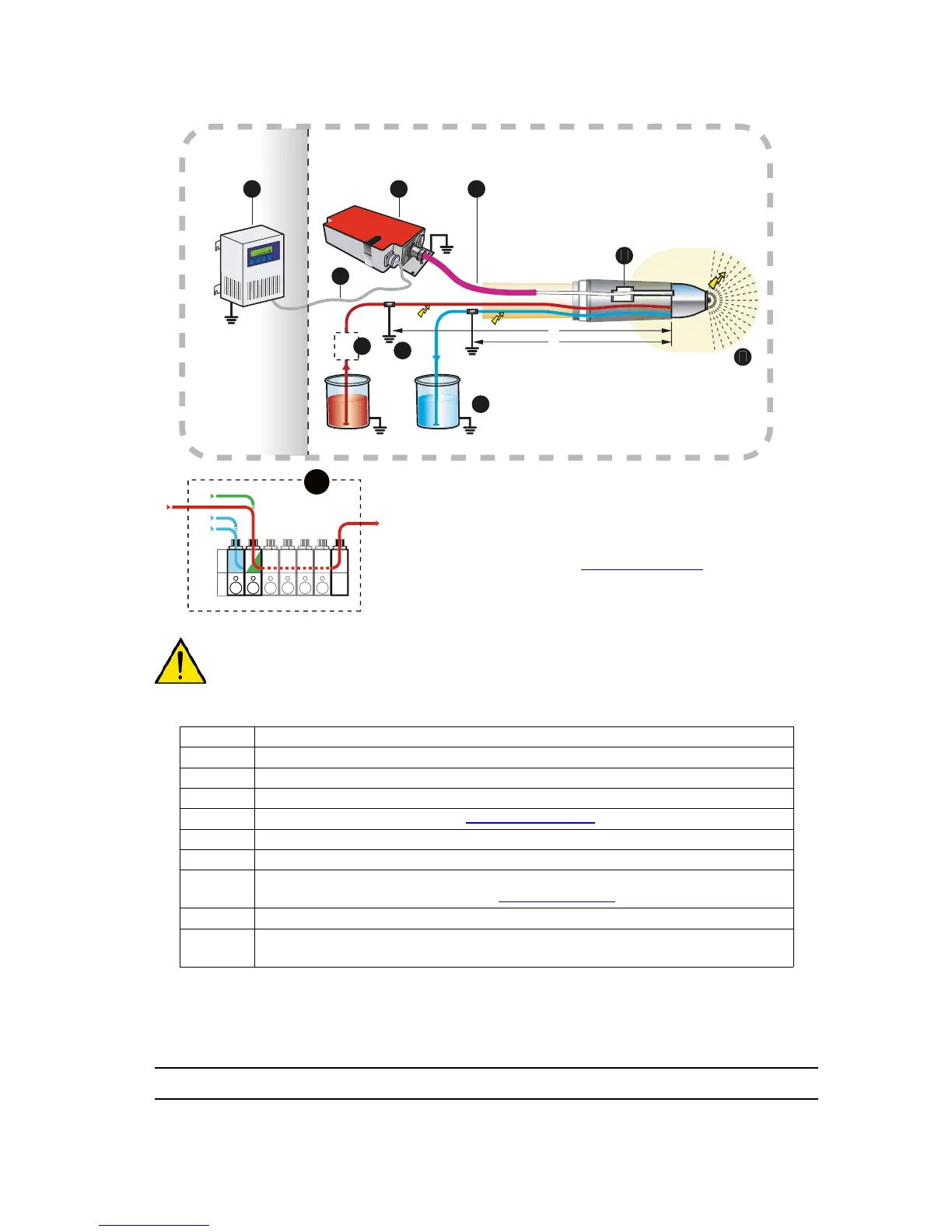

PPH 308 for low resistivity solvent-based paints ρ > 0.5 MΩ.cm
WARNING : All conductive parts must be grounded (metal Moduclean connectors, gear pumps,
etc.)
Paint resistivity > 0.5 MΩ.cm
1 GNM 200 control module (to be installed in a non-ATEX zone)
2 Low voltage cable
3 High Voltage Unit HVU 188 EEx e
4 High voltage cable (Length: see § 1.4.1 page 10)
5 Paint and rinsing product feed lines, grounded
6 Dump circuit return outlet, grounded
7
Paint/rinsing product and dump connectors, grounded inside the atom-
izer by means of a grounding kit (see § 8.6 page 51)
8 Placebo with damping resistor
9
Safety distance (area around atomizer head - distance from high voltage
components such as outer cover, bell cup etc.)
x
S
A
1
2
5
DES03662
GNM
1
2
3 4
7
6
8
9m maxi.
L
L
9
5
DES03690
S: rinsing product
A: air intake
1: product intake 1
2: product intake 2
ρ > 0.5 MΩ.cm : L = 5 m
Int.Dia.: 5 mm
Note: L Distance at which
grounding of paint, solvent and
dump circuits requires a special kit
(see § 8.6 page 51)
