Index revision : C - November 2017 37 7030

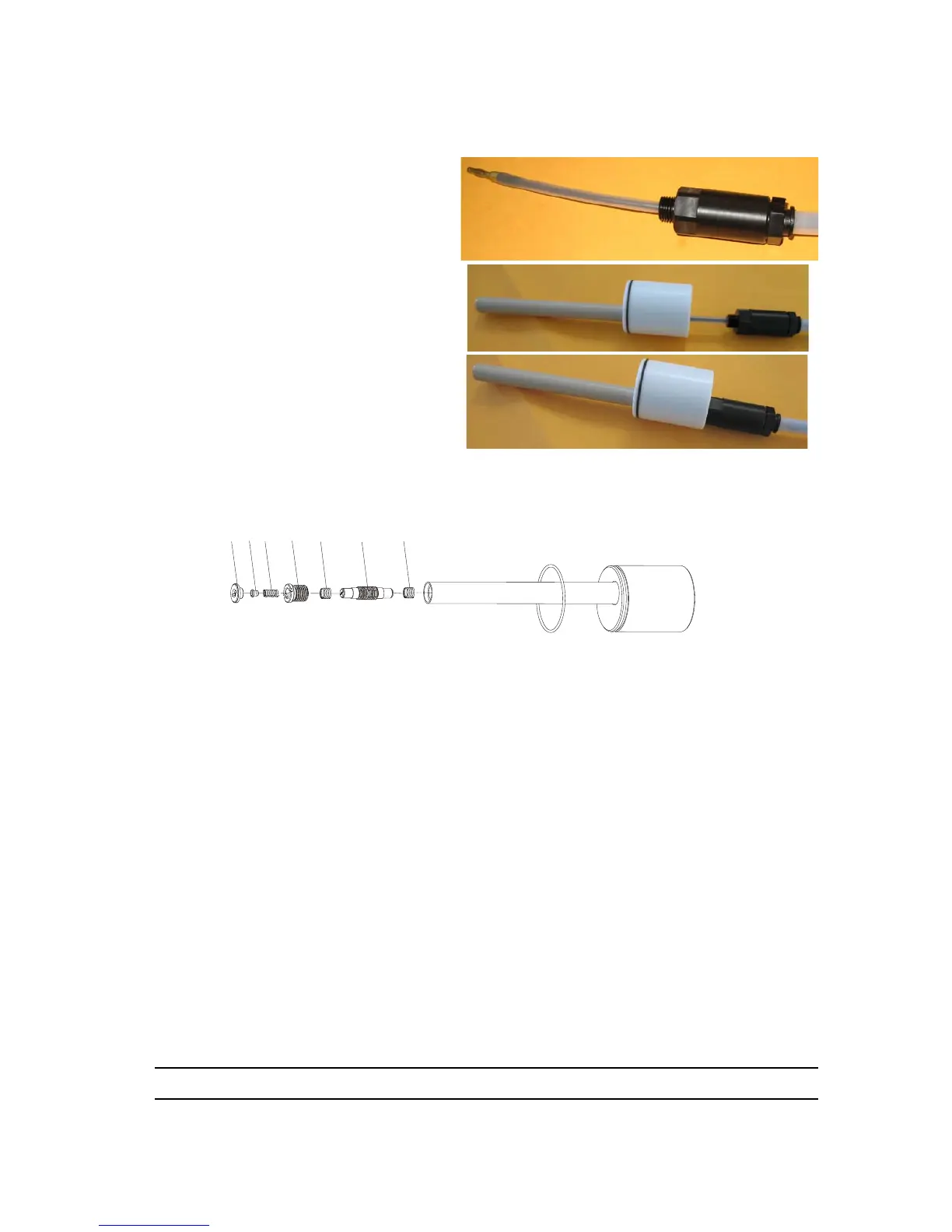

• Step 4: Insert the end fitting into the high voltage cable and screw on manually, then with
a 6 mm open-ended spanner. Tighten fully.
• Step 5: Lubrication
• Coat the high voltage cable end
fitting with a layer of dielectric
lubricant.
• Step 6: Insert high voltage cable into
placebo and push it fully in.
• Step 7: Coat placebo thread with
IS401 adhesive and screw the cable-
securing adapter onto placebo.
6.9.2. Assembling / disassembling the internal resistor in the placebo
6.9.2.1. Disassembly
• Step 1: Unscrew high voltage cable stopper (item 1) with a flathead screwdriver.
• Step 2: Remove HV contact disc (item 2) and spring (item 3).
• Step 3: Unscrew HV contact housing (item 4).
• Step 4: Unscrew resistor (item 6) assembly with its two springs (item 5) with a flathead
screwdriver.
6.9.2.2. Reassembly
• Step 1: Coat all components with a thin layer of dielectric lubricant.
• Step 2: Assemble resistor (item 6) with its two springs (item 5), then screw into the placebo
using the special tool (P/N 900002675).
• Stage 3: Screw on HV contact housing (item 4).
• Step 4: Place spring and HV contact disc into the placebo.
• Step 5: Screw in high voltage cable stopper.
