SAMES KREMLIN PPH 308 - Placebo and Resistor; To Connect to One PPH 308 Atomizer

Index revision : C - November 2017 49 7030
8.5. Placebo and resistor
8.5.1. To connect to one PPH 308 atomizer
Item Part number Description Qty
Unit of
sale
First
priority
Wear
910003213 Placebo and resistor 1 1 X
1 U1CBBR057
Protective hose, HV cable, D:10/12
clear polyamide
9 m m - -
2 E2DAVD101 High voltage cable (100kV) 9 m m - -
3 E4CSHT181 HV cable screw-on end-fitting 1 1 - -
4 F6RXZG085 Stainless steel clamp and seal 1 1 - -
5 1315058 Clamp nut 1 1 - -
6 1411689 Split cone 1 1 - -
7 900002154 Cable-securing adapter 1 1 - -
8 548304 HV cable stopper 1 1 - -
9 548303 HV contact disc 1 1 - -
10 Q2HRDC095 Spring 1 1 - -
11 900002471 HV contact housing 1 1 - -
12 200000004 Spring 2 1 - -
13 1315102 22 Mohm Resistor 1 1 X
14 J2FTDF416 O-ring 1 1 X

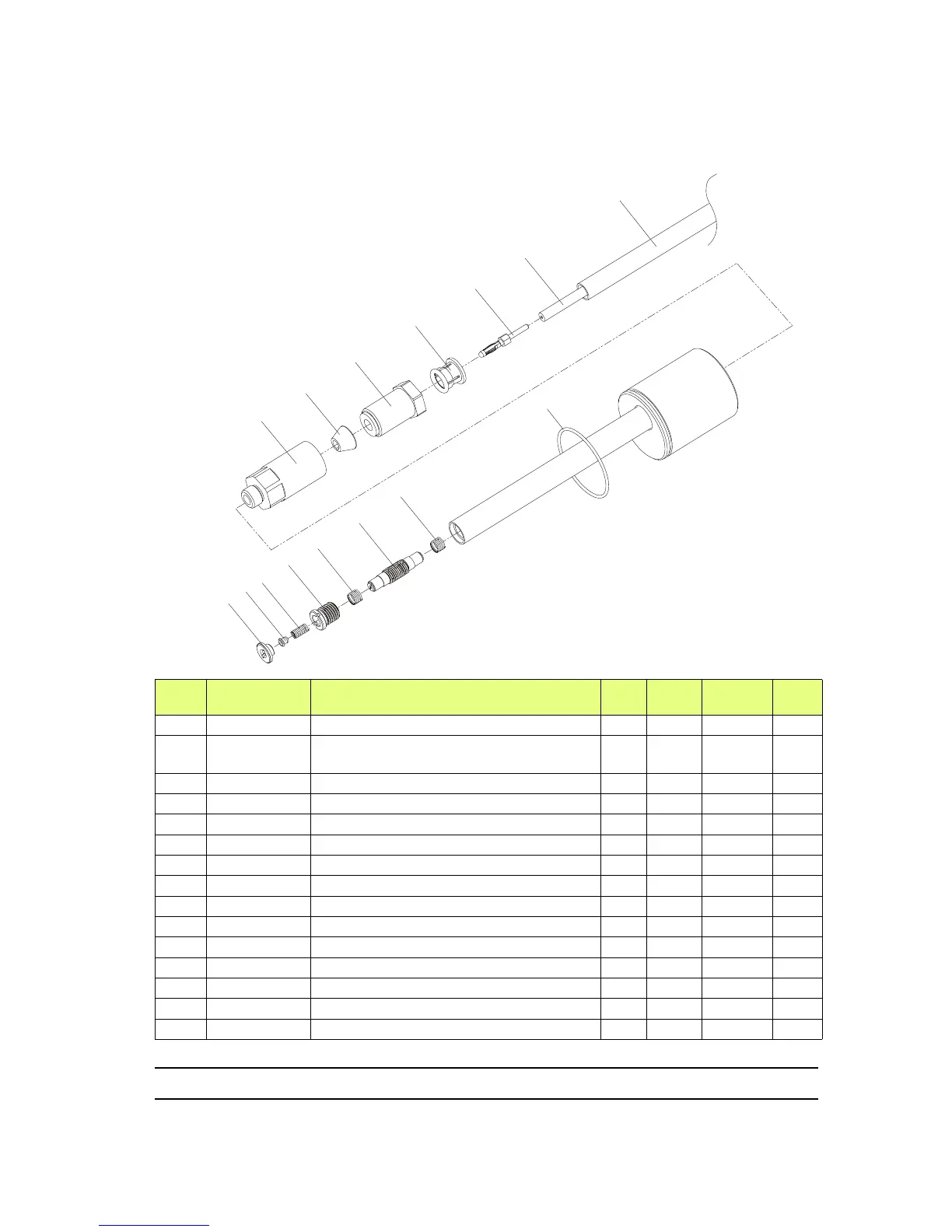

DES03688
1
2
3
4
5
6
7
8
9
10
13
12
11
12
14
If the resistor requires replacement,
use the special tool (P/N 900002675) to screw the
new resistor into the placebo.
