Index revision : C - November 2017 17 7030
2. Description
The PPH 308 atomizer is used in automatic mode for the electrostatic spraying solvent liquid
paints.
The PPH 308 is a complete atomizer with built-in painting and rinsing assemblies. It is fitted with
an air-cushioned magnetic air bearing turbine capable of reaching a rotation speed of 45,000
rpm.
A careful study should be made of its design and tools, for quick and easy maintenance.

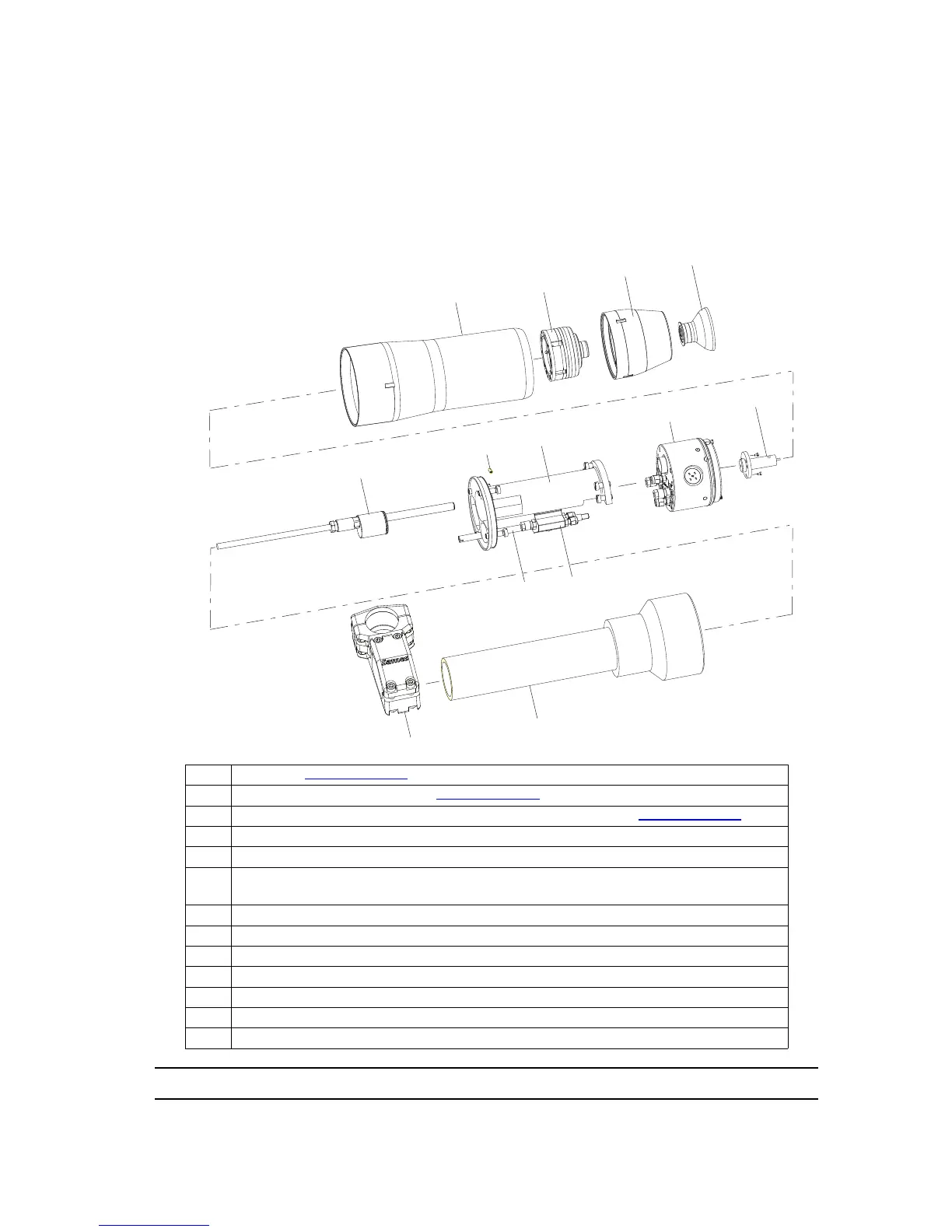

1 Bell cup (see RT Nr 6285)
2 Vortex air shroud assembly (see RT Nr 6285)
3 “Magnetic bell cup” type magnetic air bearing turbine (see RT Nr 6350)
4 Protective cover
5 Injector/ Injector holder
6 MANIFOLD block comprising three dual-channel product and dump microv-
alves
7 Placebo holder
8 Placebo locking screw
9 Placebo
10 Tie rod for the 1 PV block
11 Dual-channel air/solvent microvalve unit (1 PV block)
12 PPH support tube
13 Securing nut
